Extreme Environmental Testing Chambers for High-Density PCBs
The environmental test chambers can simulate extreme thermal shock and high-humidity offset conditions.
The Engineering Challenge
As Printed Circuit Boards (PCBs) transition into High-Density Interconnects (HDI),which is with 12+ layers and microscopic blind/buried vias, the margin for error disappears. Subjecting these complex laminates to the brutal heat of lead-free SMT reflow or harsh field environments triggers catastrophic structural failures
Z-Axis Expansion & Micro-Via Cracking
AA-FR4 fiberglass and copper have different Coefficients of Thermal Expansion (CTE). When a PCB is heated past its Glass Transition Temperature (Tg), the FR4 expands violently in the Z-axis (thickness). This acts like a hydraulic press stretching the internal copper vias. If the copper plating is too thin or the thermal shock is too severe, the via barrel snaps, severing internal connections and causing immediate board failure
Conductive Anodic Filament (CAF) Growth
In high-humidity environments, moisture permeates the epoxy resin between the woven glass fibers. When a constant DC voltage bias is applied across tightly spaced vias , copper ions dissolve and migrate along the glass fiber interfaces. This creates a microscopic, conductive metallic bridge (CAF) that causes catastrophic internal short-circuits, completely bypassing the PCB’s designed isolation
Delamination & Measling
Improperly cured resins or trapped moisture will boil into steam during sudden thermal excursions. This vapor pressure blows apart the internal layers of the PCB, showing up visually as white spots (measling) or complete structural delamination, ruining the mechanical integrity of the substrate
Why PCB need Climatic testing Chambers?
IPC-TM-650
Conductive Anodic Filament Resistance and Thermal Stressdictate how boards must perform under extreme heat and humidity bias. JCT chambers maintain ultra-precise localized environments to ensure your test coupons yield accurate, auditable leakage current data
IPC-6012 (Qualification for Rigid Boards)
To meet Class 3 standards, boards must survive rigorous thermal shock ,and without via separation or resin recession. Our rapid-transfer thermal shock chambers execute these tests, and provide the empirical proof needed to pass stringent aerospace and medical device audits
JESD22-A104 (Temperature Cycling)
Once the board is populated (PCBA), the solder joints face extreme shear stress due to component CTE mismatch. JCT Rapid Rate Thermal Cycling chambers ramp temperatures up to 20°C per minute, artificially accelerating solder fatigue to establish Mean Time Between Failures (MTBF) for consumer and automotive electronics
for PCB Testing We CAN Supply
Micro-via reliability, rigid-flex transition zone integrity, and IPC-6012 thermal stress screening.
Built for instantaneous thermomechanical violence. The 2-Zone pneumatic basket transfers bare boards or assembled PCBAs between +150°C and -65°C in under 10 seconds. Maximizes Z-axis expansion shock to immediately expose insufficient copper plating, resin voids, and brittle solder joints
Conductive Anodic Filament (CAF) testing, Surface Insulation Resistance (SIR) testing, and solder mask moisture resistance

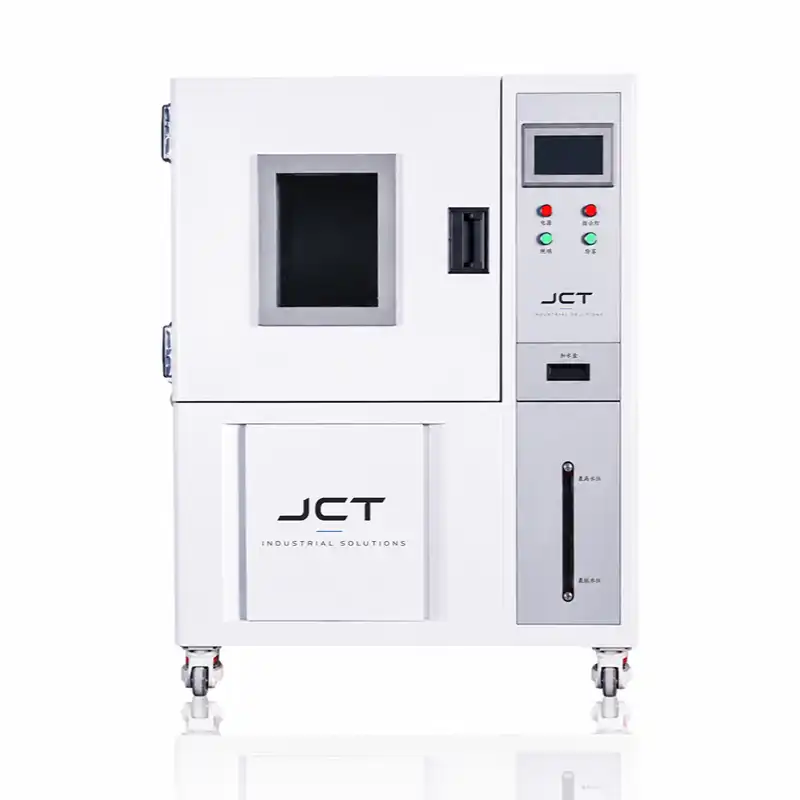

The ultimate environment for electromigration testing. Features absolute humidity stability (±2% RH) and critical anti-condensation ceiling architecture to prevent liquid droplets from short-circuiting live test coupons. Equipped with specialized hermetic access ports to easily route dozens of high-voltage biasing wires from your CAF measurement racks.
BGA/QFN solder joint fatigue, Highly Accelerated Life Testing (HALT), and component-level CTE mismatch validation

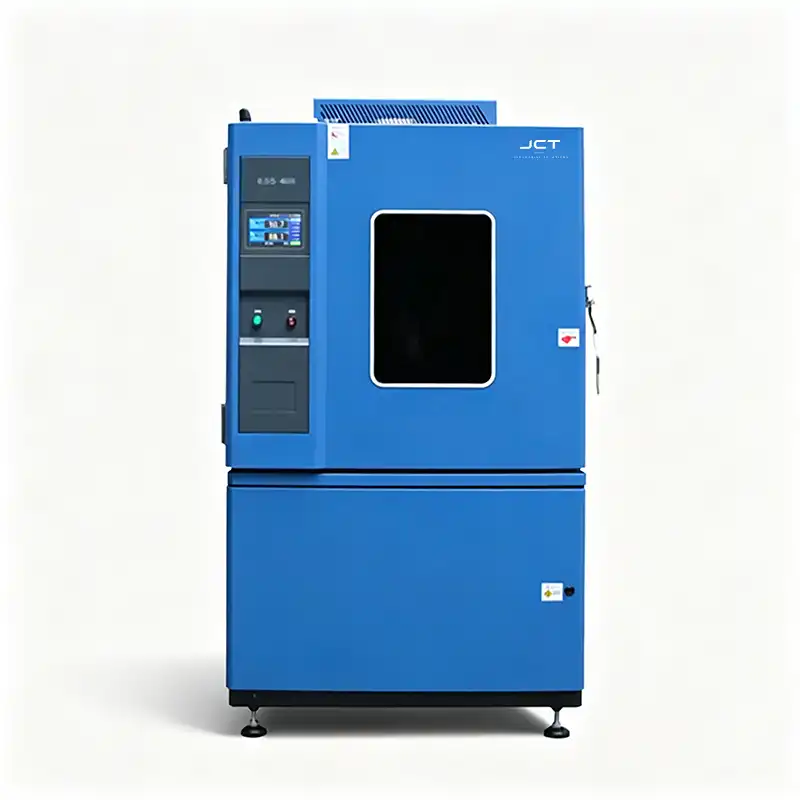

Features powerful cascade refrigeration systems ,with capable of driving precise linear temperature ramps of 10°C, 15°C, or 20°C per minute. Extracts live heat loads from powered-on PCBAs, ensuring accurate test profiles for automotive and telecom electronics.
Direct Manufacturer of Environmental Test Chambers
WHO WE ARE?
We build environmental test chambers. We help you test raw materials and finished products under extreme conditions. We find potential quality risks before mass production, protecting your products from costly returns.
With over 10 years of industry experience, we cover a full range of equipment: +180℃ high temperature, -70℃ to +180℃ temperature & humidity, thermal shock, and salt spray corrosion chambers.
We have strong R&D and manufacturing power. We accept custom orders to match your exact test standards.
We hold over 30 patents. We are ISO9001 and CE certified. Our products are exported to 50+ countries, including Europe, North Europe, Australia, Latin America, and Southeast Asia.
We are the direct source factory—no middlemen. Choose JCT, and let us safeguard your product quality.
We hold multiple product patents. We are ISO9001 and CE certified.
Choose JCT. Choose a lifelong partner.
OUR CORE ADVANTAGES
Why Choose Us
With over 10 years of rich industry experience, we are committed to served as a comprehensive technology manufacturer partner worldwide.We understand that your successful product relies on two core pillars: efficient manufacturing and uncompromising quality control.As a result, we offer a dual-core product line: first, laser and FAB solutions that ensure efficient manufacturing; and second, environmental test chambers for testing the performance of your products—all designed to address your specific industry issues and challenges.
Industry-Specific Customization
Whether you’re in the sheet metal or metalworking industries, or specialize in testing semiconductors and automotive electronics, our equipments all can be customized to meet your specific needs. We don’t just sell standard machines—we provide precise solutions that perfectly match your material and environmental requirements.
High-Efficiency Manufacturing
In the manufacturing process, time is your most valuable treasure. We offer fiber laser welding, cutting, and cleaning,etc solutions . All of them can provide deep penetration, distortion-free welding, precise cutting, and efficient cleaning for sheet metal and various types of metal processing.
Compliance and Quality Control
We ensure that your finished products can pass the most rigorous environmental testing. Our environmental test chambers help you meet strict global standards such as JEDEC, AEC-Q100, and key battery safety certifications, all these can shorten your R&D cycle and eliminating the risk of customer returns .
10+ Years & Global Support
With over a decade of technical expertise and a robust supply chain, we guarantee on-time delivery worldwide. More importantly, our engineering team will provide lifetime technical support, and we are committed to being your stable and reliable partner and friend for life.
PREMIUM COMPONENTS ASSURANCE
Certified to Global Leading Standards
Reliability starts at the core. The key components that power our equipment—from the laser source to even the smallest electronic components—have all been certified to meet the world’s most stringent international standards.
GLOBAL PARTNERSHIPS
Trusted by Industry Leaders Worldwide
We take pride in powering the success of top-tier global manufacturers, research institutions, and industrial leaders. Our advanced laser and testing solutions are trusted worldwide to deliver uncompromising quality and peak performance.
FAQ
Q1: Why do we need thermal shock testing if our PCBs only operate at room temperature?
Even if the end-product operates at room temperature, the PCB must survive the SMT assembly process. Wave soldering and reflow ovens subject the board to spikes of 260°C. If the via plating is weak or the resin is flawed, the board will sustain micro-fractures during assembly. Thermal shock testing ensures the bare board can survive the manufacturing process without latent damage.
Q2: For IPC thermal shock compliance, should we use a 2-Zone or 3-Zone chamber?
2-Zone: Moves the product basket directly from the Hot zone to the Cold zone in seconds. It induces the most severe, instantaneous thermal stress and is the standard for most bare-board via integrity tests.
3-Zone: The product remains stationary while Hot, Ambient, and Cold air are blown in. It includes a resting phase at room temperature between extremes, which is often specified for certain populated PCBA stress tests to simulate slower, natural environmental shifts.
Q3: Can the chamber prevent water from dripping onto our live test boards?
Yes, this is a critical design feature. If a water droplet falls on a live board during a CAF test, it destroys the data. JCT Constant Temperature & Humidity chambers feature an engineered sloped ceiling and precise laminar airflow. Any condensation formed on the interior ceiling flows down the walls into a drainage system, never dripping onto your payload.
Q4: What temperature ramp rate do we need for testing PCBA solder joint fatigue?
You will typically need a Rapid Rate Thermal Cycling Chamber capable of 10°C/min to 20°C/min. Standard chambers (1-3°C/min) are too slow to induce the necessary mechanical fatigue
Q5: Can the chamber controllers interface with our automated lab software?
Yes. The touchscreen controllers are equipped with RS-485, Ethernet TCP/IP, and Modbus communication protocols. They easily slave to your central lab software , allowing for synchronized test profiles and real-time remote data logging
Q6: What are the maintenance requirements for a 2-Zone Thermal Shock chamber?
The primary maintance tasks include that the pneumatic system (which moves the basket) is supplied with clean, dry compressed air to prevent valve freezing, routinely cleaning the refrigeration condenser fins, and scheduling an annual RTD sensor calibration to satisfy ISO/IEC 17025 audits.
Q7: What is the ROI of purchasing an in-house PCB testing chamber?
For PCB fabricators and EMS providers, the ROI is typically realized in 4 to 8 months. Outsourcing a single 1,000-hour CAF test or a 500-cycle thermal shock test to a third-party lab is incredibly expensive and delays product releases.
In-house testing allows you to instantly validate new laminate materials, pass OEM audits faster, and eliminate the risk of shipping a million boards with latent via defects
Related Products
Get a Factory-Direct Custom Quote
Do not let Z-axis expansion and electromigration destroy your board yields.
Tell our environmental engineering team about your specific PCB types (e.g., HDI, Rigid-Flex, Multilayer), testing standards (e.g., IPC-TM-650, JESD22), and wiring access needs. We will recommend the exact non-walk-in JCT test chamber configuration for your QA lab, complete with a factory-direct technical proposal within 12 hours.
