High and Low temperature test chamber
Stop guessing whether your products can survive extreme climates. From severe winter freezes (-70℃) to engine-level heat (+180℃), our thermal testing chambers expose physical embrittlement, solder joint fatigue, and thermal expansion mismatches before your products hit the market
Why Skipping Thermal Testing is a Costly Gamble？
Temperature fluctuations can cause materials to expand and contract at different rates. Without rigorous testing in a high-low temperature chamber, you risk catastrophic field failures, voided warranties, and rejected certifications.
Prevent Cold Embrittlement & Shattering
What it does:
Plastics, rubbers, and cables that function perfectly at 25℃,will become dangerously brittle at -40℃. Just A single winter freeze can cause outdoor equipment seals to shatter, leading to massive water ingress and total system failure.
The Benefit:
Our JCT-HU/HUU high and low temperature test chambers plunge to -40℃ or -70℃ using industrial compressors. We help you find the exact freezing point where your materials lose elasticity, ensuring your products survive the harshest arctic conditions.
Expose Thermal Expansion Mismatches
What it does:
When after electronic assemblies ,as like a metal chip soldered to a PCB,heating up and cooling down, the materials expand at different rates. Over time, this microscopic pushing and pulling shears the solder joints, causing sudden short circuits.
The Benefit:
By executing rapid hot-to-cold thermal cycling (-40℃ to +180℃) in our high and low temperature test chambers, we force these hidden mechanical stresses to the surface in just a few days, this will allow you to perfect your structural designs before mass production.
Guarantee Audit & Certification Compliance
What it does:
You try to enter the automotive or military supply chain, but your testing data is rejected because it was generated by cheap, uncalibrated equipment with massive temperature fluctuations.
The Benefit:
We utilize precision PID control to guarantee a strict ±0.5℃ temperature fluctuation. Our JCT high and low temperature test chambers output highly repeatable, traceable data .They can instantly satisfy strict GB, IEC, and MIL standards.
Select Your High-Low Temperature Test Chamber

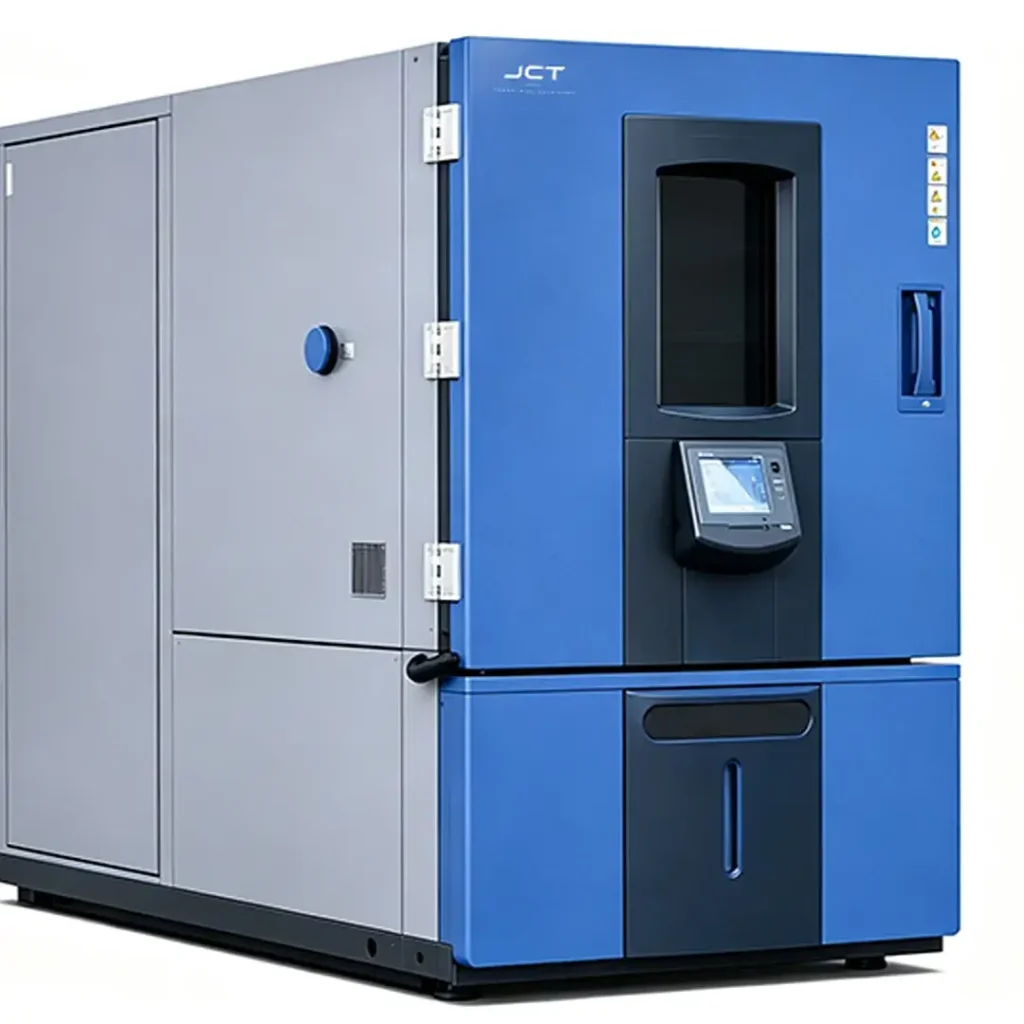

JCT-HU-2H temperature test chamber
-40℃ to +180℃ | 1200 × 980 × 800 mm (Approx. 940L)
The industry workhorse for standard environmental testing. With a broad 940L capacity, it easily accommodates heavy batches of automotive electronics and PCB assemblies, exposing solder joint fatigue and thermal expansion mismatches rapidly
JCT-HU-3H temperature test chamber
-40℃ to +180℃ | 1200 × 980 × 1000 mm (Approx. 1176L)
Features with an extended 1000mm internal height ,without compromising ±2.0℃ temperature uniformity. Designed specifically for testing taller payloads like outdoor 5G telecom racks, server cabinets, and large LED lighting fixtures.
JCT-HUU-2H Deep Freeze temperature test chamber
-70℃ to +180℃ | 1200 × 980 × 800 mm (Approx. 940L)
This temperature test chamber model achieves highly stable -70℃ deep freezing. Essential for verifying the low-temperature embrittlement of aerospace composites and military hardware in extreme sub-zero conditions.

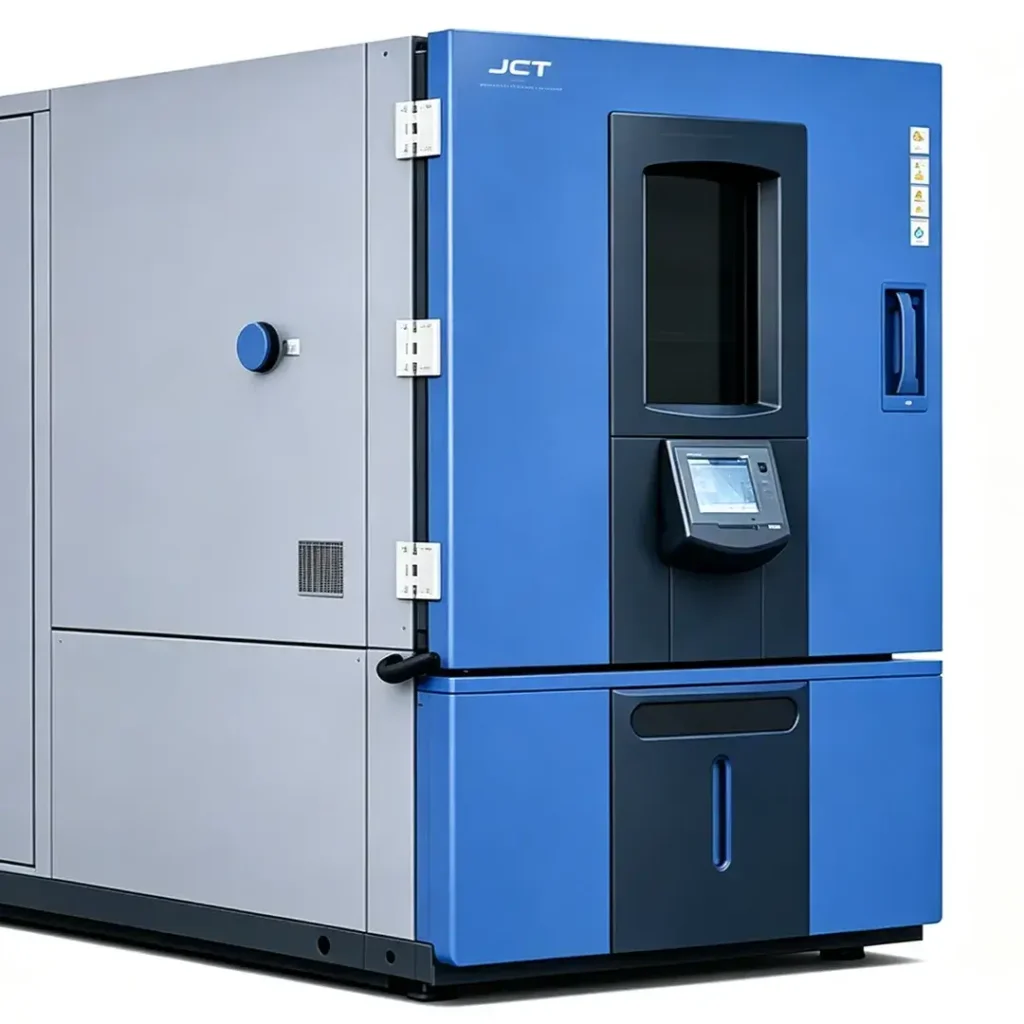

JCT-HUU-3H Heavy-Duty Extreme temperature test chamber
-70℃ to +180℃ | 1200 × 980 × 1000 mm (Approx. 1176L)
Combining extreme -70℃ deep freeze capabilities with a massive 1176L extended workspace. Built specifically for large-scale aerospace components, satellite parts, and heavy industrial prototypes requiring severe thermal shock validation.
Applications
Automotive Electronics
Vehicular electronics are subjected to brutal thermal extremes, from freezing -40℃ winter mornings to scorching +150℃ engine compartment radiant heat. Our high-low temperature chambers perform rigorous thermal cycling on dashboard screens, ECU modules, and under-hood sensors. This validates that critical automotive plastics won’t melt and screens won’t black out or crack under real-world traffic conditions.
telecommunications
Outdoor 5G telecom racks and base station routers face relentless environmental stress, including freezing nights and blistering summer days. Constant temperature fluctuations cause metal and plastic enclosures to warp, leading to moisture ingress. By subjecting telecom antennas to rapid hot-to-cold or cold-to hot in our JCT high and low temperature test chambers, you can ensure structural integrity, seal durability, and uninterrupted signal transmission regardless of the climate.
led lighting
Outdoor LED lighting fixtures and their drivers must initiate instantly in below-zero environments ,while effectively dissipating heat during operation. Hot to Cold Thermal cycling exposes micro-cracks in LED potting compounds and solder joints caused by thermal expansion. Testing in our high and low temperature chambers verifies that streetlights and industrial lighting systems will not fail prematurely due to winter cold starts or summer overheating.
plastic polymers
For Industrial polymers and plastic housings, which function perfectly at room ,but temperature can become dangerously brittle and shatter under stress when exposed to -40℃.
Our high-low temperature chambers determine the precise transition temperature and brittleness timeline of your materials. This data is critical for preventing outdoor equipment enclosures and plastic seals from cracking during extreme winter conditions.
Aerospace & Military Components
Aerospace navigation sensors and satellite valves must operate flawlessly ,while transitioning from high-altitude deep freezes to atmospheric reentry heat.
Our JCT-HUU series utilizes binary cascade refrigeration to push aerospace materials down to an extreme -70℃. This intense thermal stress screening guarantees that mission-critical military and aviation hardware maintains perfect calibration without mechanical binding or sensor drift.

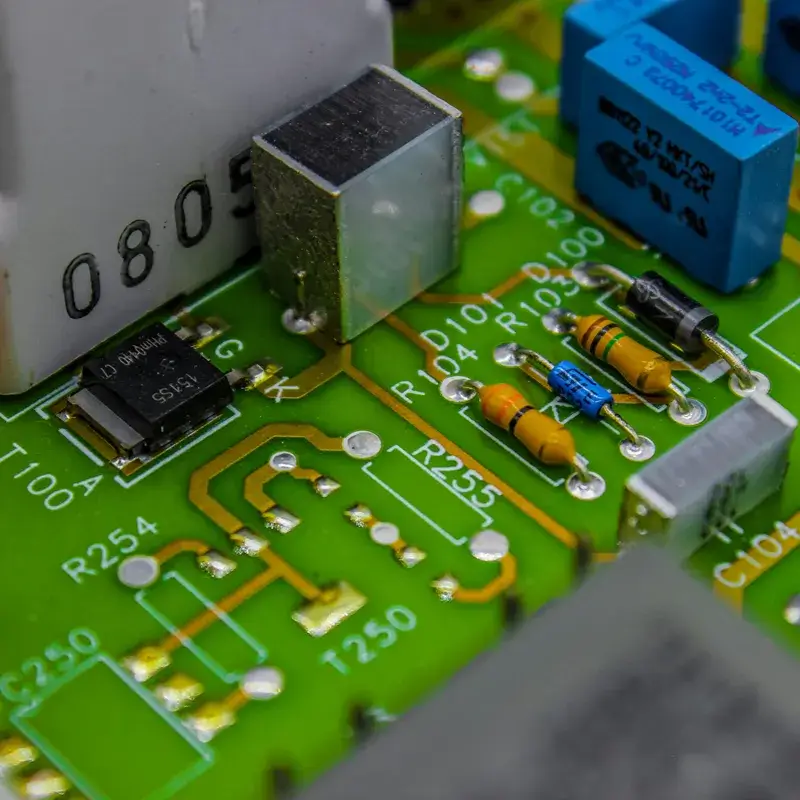

semiconductors and PCB
When PCBs undergo heating and cooling, different materials like copper traces, epoxy substrates, and solder joints expand at different rates. This high and low temperature thermal expansion mismatch will create immense mechanical stress. By running rapid thermal cycling (-40℃ to +150℃), our chambers accelerate solder joint fatigue. This exposes weak soldering and micro-cracks, completely eliminating the risk of sudden short circuits in complex consumer electronics
Technical Specifications
Thermal Test Chamber Technical Specifications
| Technical Specifications | JCT-HU-2H | JCT-HU-3H | JCT-HUU-2H | JCT-HUU-3H |
|---|---|---|---|---|
| Chamber Volume | 940L | 1176L | 940L | 1176L |
| Internal Dimensions | 1200 × 980 × 800 mm | 1200 × 980 × 1000 mm | 1200 × 980 × 800 mm | 1200 × 980 × 1000 mm |
| Temperature Range | -40℃ ～ +180℃ | -40℃ ～ +180℃ | -70℃ ～ +180℃ | -70℃ ～ +180℃ |
| Temp. Fluctuation | ±0.5 ℃ | |||
| Temp. Uniformity | ±2.0 ℃ | |||
| Heating Rate (No Load) | Approx. 3.0 ℃ / min | |||
| Cooling Rate (No Load) | Approx. 1.0 ℃ / min | |||
| Refrigeration Compressor | Tecumseh - France | |||
| Pressure Switch | Danfoss - Denmark | |||
| Filter Drier | Danfoss - Denmark | |||
| Solenoid Valve | JAKSA - Germany | |||
| Core Protectors | Schneider - France | |||
OUR CORE ADVANTAGES
Why Choose Us
With over 10 years of rich industry experience, we are committed to served as a comprehensive technology manufacturer partner worldwide.We understand that your successful product relies on two core pillars: efficient manufacturing and uncompromising quality control.As a result, we offer a dual-core product line: first, laser and FAB solutions that ensure efficient manufacturing; and second, environmental test chambers for testing the performance of your products—all designed to address your specific industry issues and challenges.
Industry-Specific Customization
Whether you’re in the sheet metal or metalworking industries, or specialize in testing semiconductors and automotive electronics, our equipments all can be customized to meet your specific needs. We don’t just sell standard machines—we provide precise solutions that perfectly match your material and environmental requirements.
High-Efficiency Manufacturing
In the manufacturing process, time is your most valuable treasure. We offer fiber laser welding, cutting, and cleaning,etc solutions . All of them can provide deep penetration, distortion-free welding, precise cutting, and efficient cleaning for sheet metal and various types of metal processing.
Compliance and Quality Control
We ensure that your finished products can pass the most rigorous environmental testing. Our environmental test chambers help you meet strict global standards such as JEDEC, AEC-Q100, and key battery safety certifications, all these can shorten your R&D cycle and eliminating the risk of customer returns .
10+ Years & Global Support
With over a decade of technical expertise and a robust supply chain, we guarantee on-time delivery worldwide. More importantly, our engineering team will provide lifetime technical support, and we are committed to being your stable and reliable partner and friend for life.
PREMIUM COMPONENTS ASSURANCE
Certified to Global Leading Standards
Reliability starts at the core. The key components that power our equipment—from the laser source to even the smallest electronic components—have all been certified to meet the world’s most stringent international standards.
GLOBAL PARTNERSHIPS
Trusted by Industry Leaders Worldwide
We take pride in powering the success of top-tier global manufacturers, research institutions, and industrial leaders. Our advanced laser and testing solutions are trusted worldwide to deliver uncompromising quality and peak performance.
FAQ
Q1: What is the difference between a high-temp chamber and a high-low temperature chamber?
A high-temp chamber only heats to a high temperature. Such as JCT-HT series.
A high-low temperature chamber (JCT-HU series) integrates a robust mechanical refrigeration system, allowing it to cycle between extreme heat (+180℃) and deep freezing (-70℃) to test material expansion and contraction.
Q2: Why do I need to test down to -40℃ or -70℃ if my product is used indoors?
Even if used indoors, your products are shipped globally. Cargo holds in airplanes and shipping containers in winter easily reach -30℃ to -40℃.
If untested, your product’s internal solder joints or plastic housings may crack during transport before the customer even opens the box.
Q3: Do I need the JCT-HU (-40℃) or the JCT-HUU (-70℃) series?
For standard automotive, telecom, and consumer electronics, -40℃ (JCT-HU) is the industry standard. If you are testing aerospace components, military hardware, or extreme-climate outdoor equipment, you must use the -70℃ (JCT-HUU) series.
Q4: How do I get the testing data for my ISO/GB compliance audits?
The smart PLC controller allows you to export real-time temperature logs and thermal curves directly via a USB drive. You get an instant, unalterable excel/CSV file ready for the third-party quality audits.
Q5: What is the lead time if I order a custom JCT-HU chamber today?
Standard models take approximately 15-20 days to assemble, calibrate, and pack. Highly customized units typically require 4 weeks. Please Fill out the form below for a precise timeline.
