Extreme Thermal Shock Tests to Expose Mechanical Flaws
Standard temperature cycling is too slow to catch latent defects. Our JCT Thermal Shock Chambers utilize advanced thermal storage reservoirs to blast your products with extreme hot-to-cold transitions in under 5 seconds. It can force material expansion mismatches to the surface and guarantee MIL-STD compliance
Why must be Thermal Shock temperature chamber?
A Rapid Rate Chamber (ESS) changes temperature at a controlled 10℃/min, causing materials to expand and contract gradually.
While A Thermal Shock Chamber does not wait. It inflicts instantaneous, violent temperature changes, creating massive mechanical shearing forces
This test cannot be replicated by traditional testing .
Force Mechanical Shearing
What it does:
Exposing materials with mismatched Coefficients of Thermal Expansion (CTE)
The Benefit:
The Value: When a plastic housing and a metal screw are subjected to an instant 150℃ to -40℃ shock, they contract at drastically different rates. This instantaneous “pull” shears weak solder joints, shatters epoxy potting, and cracks ceramics—flaws that would not be discoverd during slow temperature cycling.
MIL-STD & IEC Strict Compliance
What it does:
Meeting mandatory test standards like MIL-STD-883, MIL-STD-202, and IEC 60068-2-14 Na.
The Benefit:
Our thermal Shock Tests chambers are engineered specifically to meet the rigid <5-second transition time and <5-minute recovery time required by these elite international standards.
True Thermal Storage Architecture
What it does:
Sustaining immediate, massive thermal loads
The Benefit:
Unlike standard single-zone chambers that rely on heaters to warm up the air, our thermal shock chambers feature independent “Hot Storage” and “Cold Storage” zones. The energy is pre-accumulated, allowing for a violent, instantaneous blast of extreme temperature onto the test specimen.
Select Your Constant Temperature and Humidity Chamber
Two Zones Thermal Shock Chambers
Features an upper Hot Zone and a lower Cold Zone. The test specimens are placed in a pneumatic mechanical basket (elevator) that physically plunges them between the boiling and freezing zones in under 3 seconds.
It can Provide the most aggressive, brutal thermal shock due to physical movement into pre-conditioned extremes. Ideal for IC chips, small components, and MIL-STD compliance.
Three Zones Thermal Shock Chambers
Features 3 zones: a Hot Storage Zone, a Cold Storage Zone, and a stationary Test Zone in the middle. The specimens never move. Instead, pneumatic dampers instantly blast pre-conditioned hot or cold air into the test zone.
Test cables and sensors can be easily connected without moving parts breaking them. Perfect for heavy payloads, large automotive parts, and live-load testing.

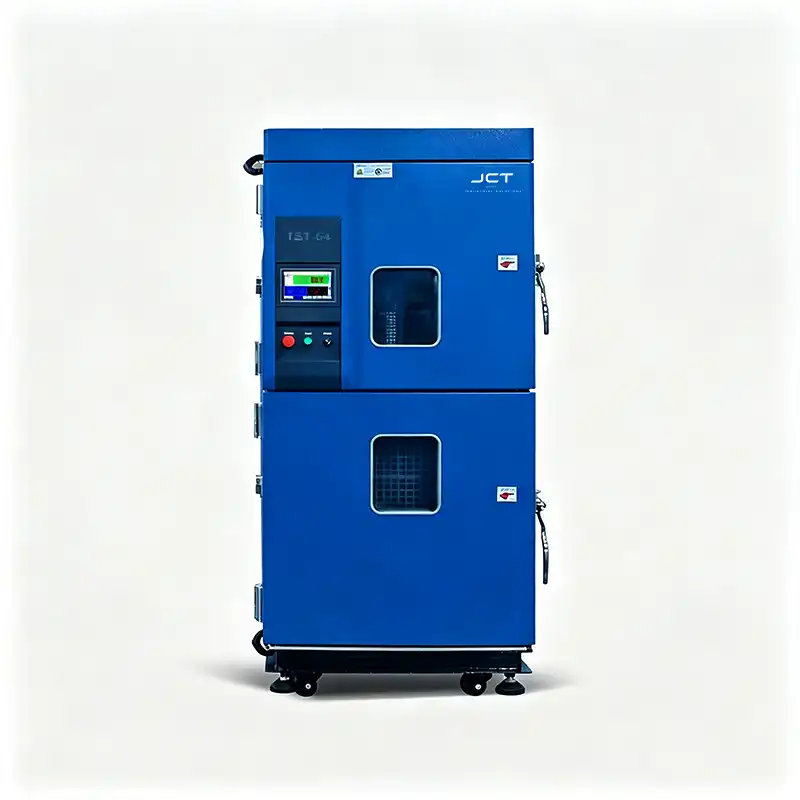

JCT-TSE-02A Two-Zone Thermal Shock Chamber (-40℃)
Designed for rapid thermal shock testing between -40℃ and +150℃ with a 400L test volume, featuring fast recovery times and robust dual-zone switching.

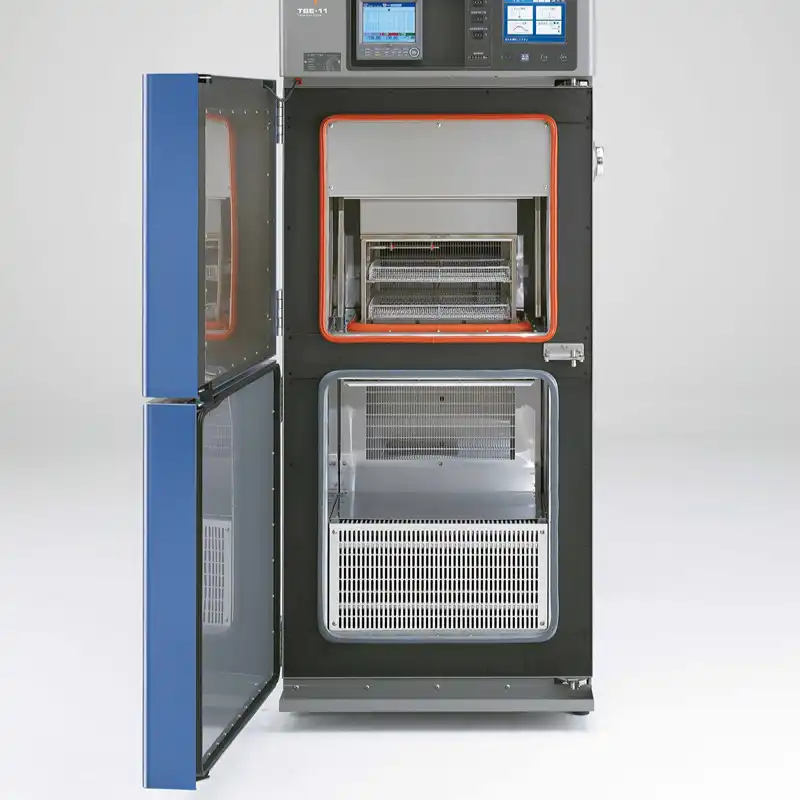

JCT-TSE-02AT Ultra-Low Two-Zone Thermal Shock Chamber (-55℃)
Advanced ultra-low temperature two-zone model supporting down to -55℃ cold storage, engineered for stringent aerospace and electronics reliability tests.
CT-TSA-64 Compact Three-Zone Thermal Shock Chamber (64L)
Compact 64L three-zone chamber utilizing automated damper switching ,it can isolate thermal shock loads for precision electronic components.

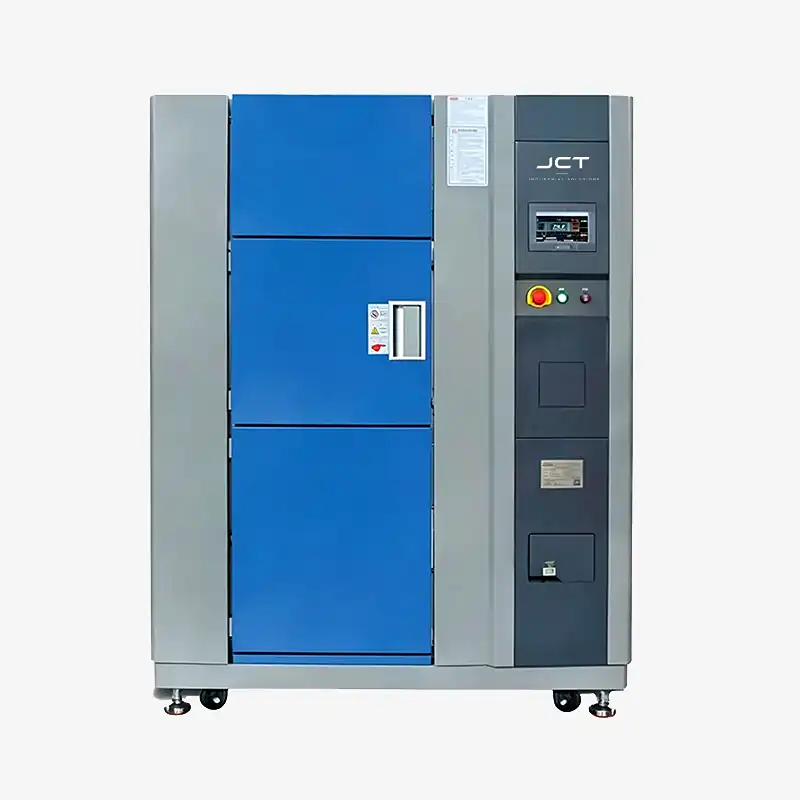

JCT-TSA-100 Three-Zone Thermal Shock Chamber (100L)
100L standard three-zone thermal shock testing chamber，it can provide precise temperature recovery and stable 3-zone climate control.

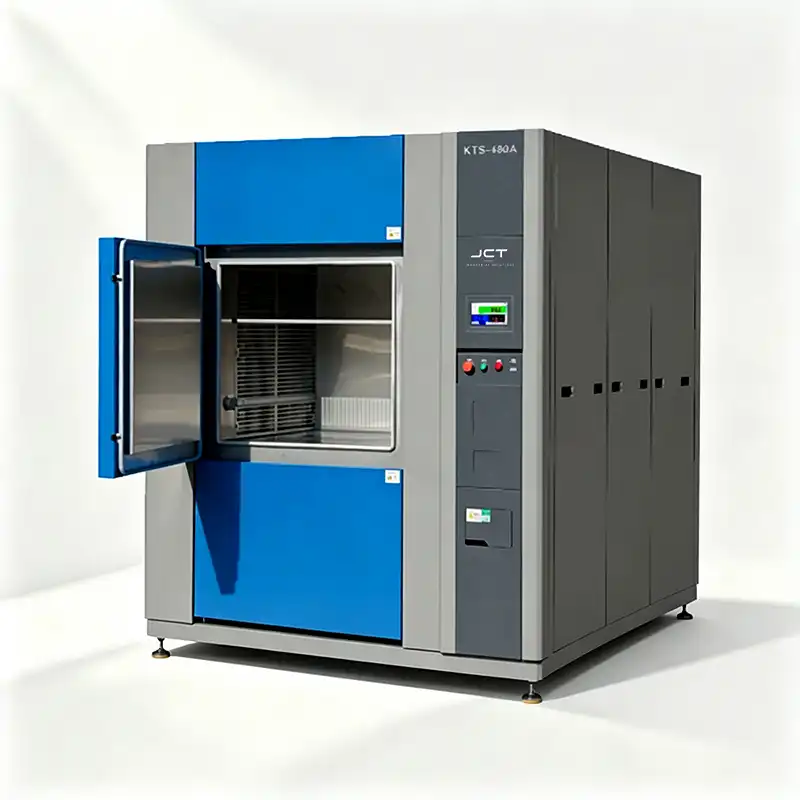

JCT-TSA-200 Three-Zone Chamber (200L)
Mid-sized 200L thermal shock testing system can be designed for batch-testing automotive electronic assemblies under extreme thermal stress condition
JCT-TSA-300 Three-Zone Chamber (300L)
Spacious 300L three-zone testing chamber is engineered for high-load industrial components ,which have rigorous military or industrial thermal requirements

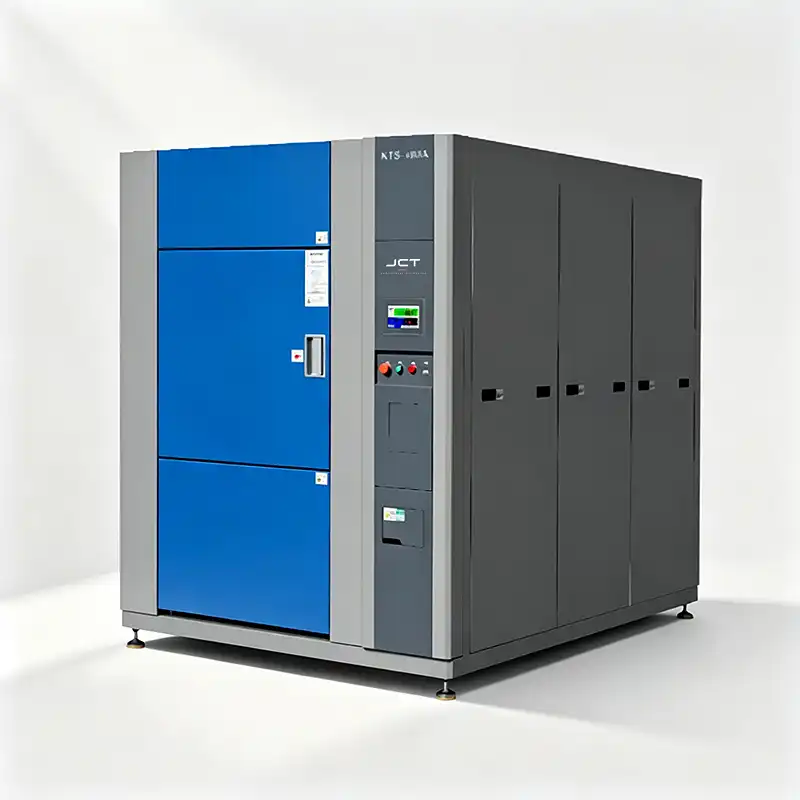

JCT-TSA-500 Heavy-Duty Three-Zone Chamber (500L)
Heavy-duty 500L industrial thermal shock testing system is built for oversized modules, it features rapid damper switching within 5 seconds.
JCT-TSA-1000 Extra-Large Three-Zone Chamber (1000L)
Massive 1000L three-zone thermal shock chamber is with complete system-level reliability and environmental destruction testing.
Technical Specifications
Thermal Shock Testing Chamber Technical Specifications (Two-Zone & Three-Zone Series)
| Specification | JCT-TSE-02A (Two-Zone) |
JCT-TSE-02AT (Two-Zone) |
JCT-TSA-64 (Three-Zone) |
JCT-TSA-100 (Three-Zone) |
JCT-TSA-200 (Three-Zone) |
JCT-TSA-300 (Three-Zone) |
JCT-TSA-500 (Three-Zone) |
JCT-TSA-1000 (Three-Zone) |
|---|---|---|---|---|---|---|---|---|
| Chamber Type | Two-Zone System | Three-Zone System | ||||||
| Internal Dimensions (W×H×D mm) | 400 × 400 × 400 | 400 × 400 × 400 | 400 × 400 × 400 | 500 × 450 × 450 | 650 × 460 × 670 | 850 × 600 × 650 | 1000 × 750 × 700 | 1000 × 1000 × 1000 |
| External Dimensions (W×H×D mm) | 860 × 2010 × 2200 | 950 × 2040 × 2350 | Customized / Standard Industrial Size | |||||
| Temperature Range / Cold & Hot Storage | Low: -40℃ to -10℃ High: +60℃ to +150℃ |
Low: -55℃ to +10℃ High: +60℃ to +150℃ |
Cold Storage: -65℃ to 0℃ Hot Storage: +60℃ to +200℃ |
|||||
| Switch / Damper Time | Zone Switch: ≤10 sec | Damper Switch: ≤5 Seconds | ||||||
| Temp Recovery Time | ≤5 min (after 30min exposure) | ≤5 Minutes | ||||||
| Temperature Fluctuation | ≤1℃ | |||||||
| Exposure Time | Standard Test Cycle | High Temp: ≥30min / Low Temp: ≥30min | ||||||
| Heating Time (Hot Storage) | RT ～ 200℃: about 30 min | RT ～ 200℃: about 30 min | RT to 200℃: About 30 minutes | |||||
| Cooling Time (Cold Storage) | RT ～ -60℃: about 60 min | RT ～ -70℃: about 60 min | RT to -70℃: About 70 minutes | |||||
| Operating Noise Level | ≤75 dB | |||||||
| Power Supply Requirements | 380V AC, 3Φ 50Hz | |||||||

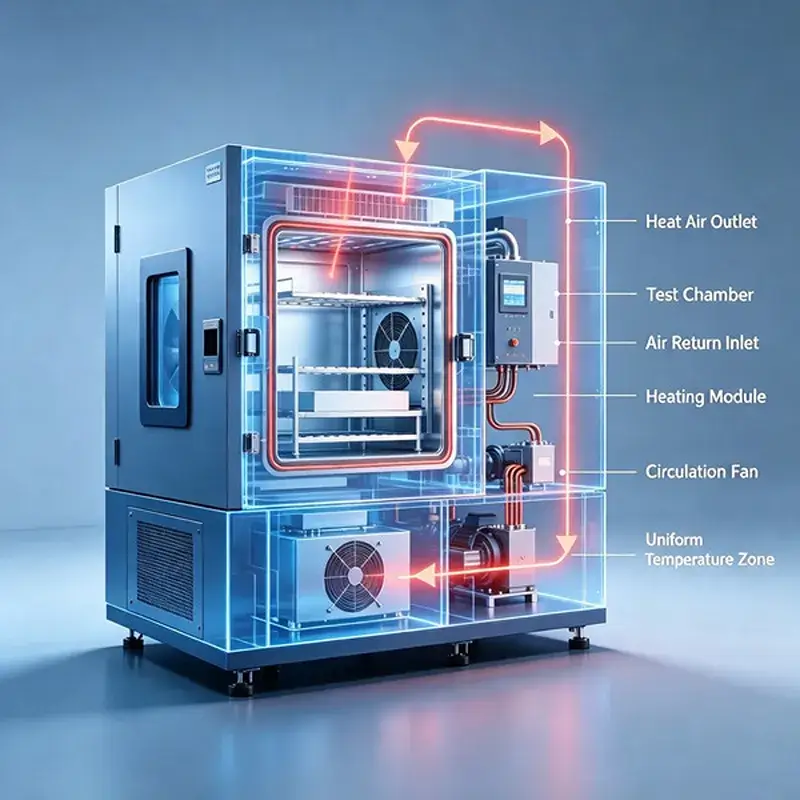

Core Technology
Independent Energy Reservoirs
To achieve a temperature shift from +150℃ to -65℃ in seconds, the chamber cannot wait for a compressor to cool the air. Our JCT Thermal Shock Chambers series utilizes massive pre-conditioning thermal reservoirs. The Hot Zone superheats air up to 200℃, while the Cold Zone deeply freezes air down to -70℃, storing the energy like a coiled spring.
Pneumatic Damper and Elevator Control

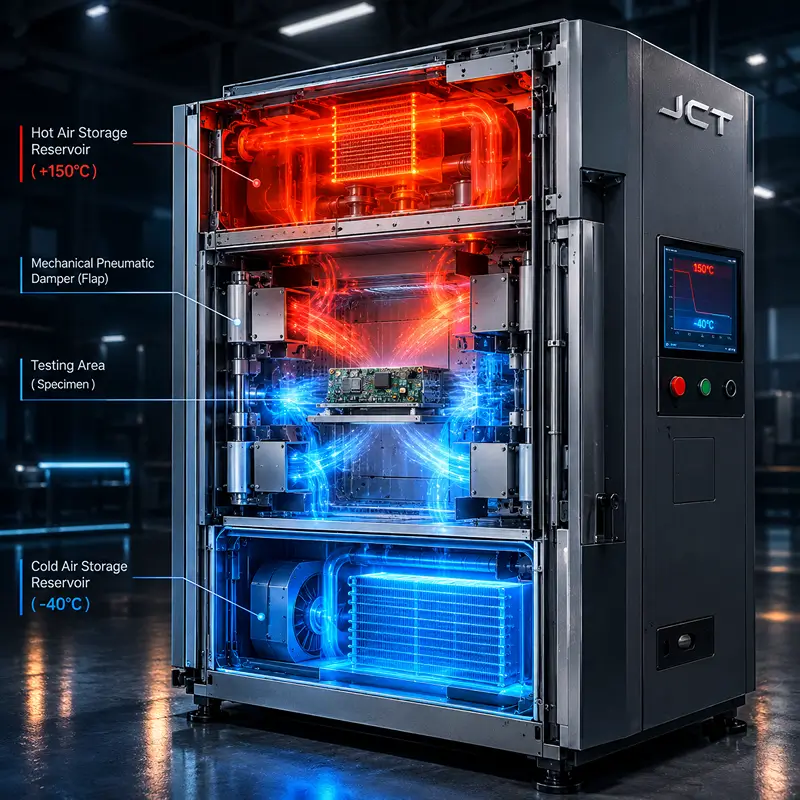

When the cycle triggers, high-speed pneumatic cylinders activate. In the 3-Zone (TSA), aerodynamic dampers slam open, flushing the test area with extreme air. In the 2-Zone (TSE), a frictionless rail system drives the payload basket vertically into the next zone in less than 3 seconds. Both mechanisms are driven by precision logic to ensure absolute repeatability.
Applications
Thermal shock chamber for automotive
Automotive Engine Control Units (ECUs), motor drives, and high-voltage connectors face violent thermal environments—from -40℃ freezing winter starts to sudden 120℃ engine bay heat. Mismatched CTEs between plastic connectors and copper terminals will create immense physical shear forces during these instantaneous shifts. By Thermal shock testing ,you can catche latent solder cracks and broken seals, preventing fatal vehicle stalling and ensuring strict TS16949 OEM compliance.
Thermal shock chamber for Semiconductor
Executing MIL-STD-883 microelectronics thermal shock profiles in our JCT 2-Zone elevator chambers ,will inflict seconds-level extreme transitions on ICs, BGAs, and IGBT modules.
Since Internally layered with silicon, epoxy molding, and metal pins, the sudden thermal expansion violently snaps micro-gold wire bonds and triggers catastrophic package delamination (the “popcorning” effect).You can Screen out latent micro-cracks before they trigger massive downstream OEM warranty claims
Thermal shock chamber for Aerospace Avionics
Military avionics, missile seekers, and phased-array radars ,transition from scorching ground tarmacs to the -60℃ stratosphere in minutes.
Our JCT Thermal shock chamber executes MIL-STD-810G and GJB 150.5 extreme hot-to-cold shocks .These test make sure verify that all the systems won’t suffer structural fractures or instantaneous signal loss during tactical maneuvers.
Validating this extreme physical survivability is an absolute prerequisite for defense procurement qualifications.
Thermal shock chamber for 5G Telecom Equipment
Outdoor 5G base stations and SFP optical modules,often face brutal thermal shocks from sudden hail storms during sun exposure, or instantaneous high-power load switching.
The resulting thermal contraction will cause micrometer-level displacement in precision optical alignments, leading to severe signal attenuation or complete link failure.
Our JCT Thermal shock testing chamber guarantees your telecom infrastructure maintains a 10-year physical lifespan in extreme climates without physical degradation.

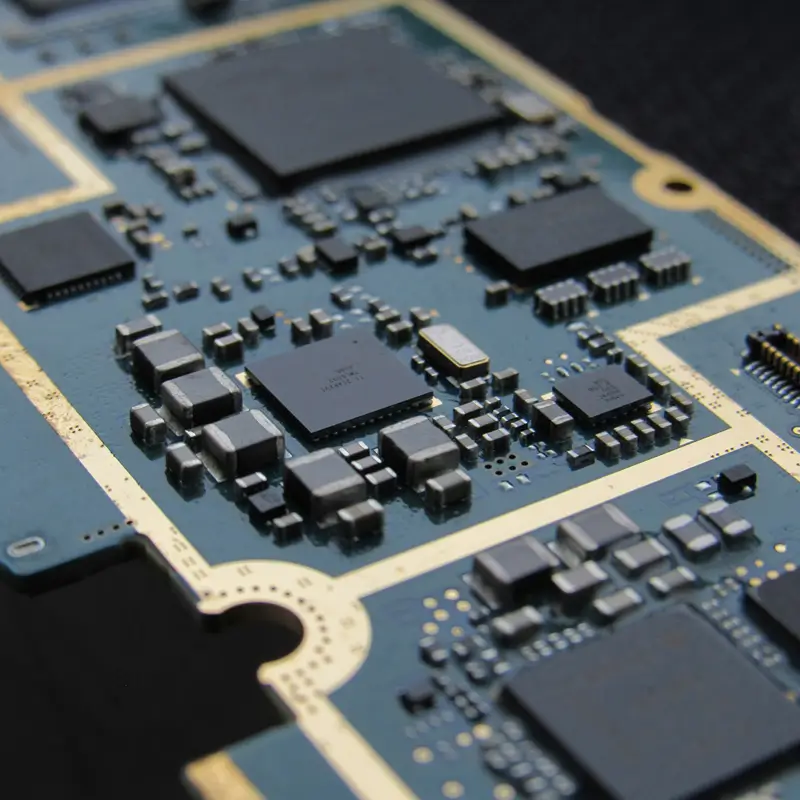

Thermal shock chamber for Electronic PCB
Simulating the violent thermal shock of SMT reflow soldering ，will expose critical flaws in high-density multi-layer PCBs and Rigid-Flex boards. The massive CTE mismatch between the FR4 fiberglass substrate and the copper plating aggressively tears apart plated through-holes (PTH) and vias.Our JCT Thermal shock chamber can help you Intercept these hidden “via cracks” early to optimize your material selection and copper plating processes.
Thermal shock chamber for LED Optics
High-power automotive LEDs and outdoor floodlights generate significant internal heat and cool down rapidly after power is shut off. The extreme mismatch in thermal expansion coefficients between the silicone encapsulant and the metal bracket can cause the bond wires to tear and the lens to delaminate. Our JCT thermal shock test chambers can help you verify the integrity of the adhesive and significantly reduce overseas warranty costs.
OUR CORE ADVANTAGES
Why Choose Us
With over 10 years of rich industry experience, we are committed to served as a comprehensive technology manufacturer partner worldwide.We understand that your successful product relies on two core pillars: efficient manufacturing and uncompromising quality control.As a result, we offer a dual-core product line: first, laser and FAB solutions that ensure efficient manufacturing; and second, environmental test chambers for testing the performance of your products—all designed to address your specific industry issues and challenges.
Industry-Specific Customization
Whether you’re in the sheet metal or metalworking industries, or specialize in testing semiconductors and automotive electronics, our equipments all can be customized to meet your specific needs. We don’t just sell standard machines—we provide precise solutions that perfectly match your material and environmental requirements.
High-Efficiency Manufacturing
In the manufacturing process, time is your most valuable treasure. We offer fiber laser welding, cutting, and cleaning,etc solutions . All of them can provide deep penetration, distortion-free welding, precise cutting, and efficient cleaning for sheet metal and various types of metal processing.
Compliance and Quality Control
We ensure that your finished products can pass the most rigorous environmental testing. Our environmental test chambers help you meet strict global standards such as JEDEC, AEC-Q100, and key battery safety certifications, all these can shorten your R&D cycle and eliminating the risk of customer returns .
10+ Years & Global Support
With over a decade of technical expertise and a robust supply chain, we guarantee on-time delivery worldwide. More importantly, our engineering team will provide lifetime technical support, and we are committed to being your stable and reliable partner and friend for life.
PREMIUM COMPONENTS ASSURANCE
Certified to Global Leading Standards
Reliability starts at the core. The key components that power our equipment—from the laser source to even the smallest electronic components—have all been certified to meet the world’s most stringent international standards.
GLOBAL PARTNERSHIPS
Trusted by Industry Leaders Worldwide
We take pride in powering the success of top-tier global manufacturers, research institutions, and industrial leaders. Our advanced laser and testing solutions are trusted worldwide to deliver uncompromising quality and peak performance.
FAQ
Q1: What is an environmental chamber, and how does a thermal shock chamber differ?
A standard environmental chamber simulates general weather conditions to test product reliability
A thermal shock chamber is an extreme, specialized equipment ，it’s designed to inflict instant physical stress by moving products between freezing cold and blistering heat in mere seconds.
Q2: Why do we need to test for "thermal shock" instead of just gradual temperature cycling?
Gradual cycling tests for long-term fatigue, but thermal shock tests for immediate physical tearing. When different materials (like a plastic housing and a metal screw) expand at different rates, sudden temperature changing will create immense mechanical shear force to exposes weak solder joints or micro-cracks.
Q3: What is the difference between a 2-zone and a 3-zone thermal shock chamber?
A 2-zone chamber uses an elevator basket to physically move your product between a hot and cold tank.
A 3-zone chamber keeps the product stationary in a middle test area, using hidden dampers to blast in extreme hot or cold air, which allows for an additional ambient temperature resting phase.
Q4: How extreme are the temperatures, and how fast is the transition?
The hot zone can typically reach up to +180°C or higher, while the cold zone drops down to -70°C. The actual transition of the product between these two extremes happens incredibly fast, strictly within 3 to 5 seconds.
Q5: Can a thermal shock chamber also control humidity?
No.
Because the temperature drops so violently and quickly, any moisture introduced would instantly freeze and block the airflow systems. For combined temperature and moisture testing, an alternating climatic chamber is required.
Q6: What components are used for the core refrigeration and control systems?
We partner with globally trusted industry brands to ensure long-term reliability. Our systems utilize Tecumseh (France) refrigeration compressors, Danfoss (Denmark) pressure switches and filter driers, JAKSA (Germany) solenoid valves, and Schneider (France) electrical contactors.
Q7: What is the typical manufacturing lead time?
Due to the complex mechanical structures, pneumatic damper systems, and dual-zone construction, thermal shock chambers take approximately 30-40 days to manufacture, calibrate, and extensively test before shipping. Request a custom quote below.
Related Products
Get a Factory-Direct Custom Quote
Thermal shock testing requires absolute precision. Tell our engineering team your payload weight, required testing standards (e.g., MIL-STD-883), and whether you need a 2-zone elevator or a 3-zone damper system. We will provide a factory-direct technical layout within 12 hours.
