Air-Cooled Handheld Laser Welders Direct Factory
Ultra-portable, lightweight, and maintenance-free. Powered by premium Raycus fiber laser sources and specialized air-cooled welding torches, engineered for 1mm to 6mm metal fabrication without water chillers.
AIR-Cooled Series
M30 Air-Cooled Laser Welder
Operates as a lightweight, maintenance-free portable hand-held laser welder, delivering precise seams for outdoor fabrication setups effortlessly
M40 Air-Cooled Laser Welder
A flexible, handheld laser welder for metal with 3–4 mm thick, designed for medium-sized welding tasks
M60 Air-Cooled Laser Welder
This is a rugged and durable industrial laser welding tool. It can fully penetrate 5mm-thick metal plates and weld a length of 150 cm in 1 minute
Compare our high-performance refrigerant laser welding series to find
the exact configuration for your workshop output
| Specification / Model | M30 | M40 | M50 |
|---|---|---|---|
| Laser Power (W) | 800W | 1200W | 1500W |
| Wavelength (nm) | 1070±10 | 1070±10 | 1070±10 |
| Operation Mode | Continuous Wave (CW) / Modulation | Continuous Wave (CW) / Modulation | Continuous Wave (CW) / Modulation |
| Cooling Method | Air-Cooled | Air-Cooled | Air-Cooled |
| Operating Temp (°C) | -20° to 45° | -20° to 45° | -20° to 45° |
| Power Source | 1PH 220V 50/60Hz | 1PH 220V 50/60Hz | 3PH 380V 50/60Hz |
| Total Power (KW) | 4KW[cite: 14] | 5KW[cite: 14] | 6KW[cite: 14] |
| Gun Type | Air-cooled welding torch[cite: 14] | Air-cooled welding torch[cite: 14] | Air-cooled welding torch[cite: 14] |
| Fiber Cable Length | 10m | 10m | 10m |
| Drive Type & Wire Dia | Single-Drive | 0.8/1.0/1.2/1.6 | Single/Dual-Drive | 0.8/1.0/1.2/1.6[cite: 15] | Single/Dual-Drive | 0.8/1.0/1.2/1.6[cite: 15] |
| Control Interface | Touch Screen (Multi-language)[cite: 15] | Touch Screen (Multi-language)[cite: 15] | Touch Screen (Multi-language)[cite: 15] |
| Dimensions (L×W×H mm) | 600 × 300 × 560[cite: 15, 16] | 600 × 300 × 560[cite: 15, 16] | 600 × 320 × 580[cite: 15, 16] |
| Net Weight (KG) | 25 KG[cite: 16] | 25 KG[cite: 16] | 32 KG[cite: 16] |
Core Components
Explore the 4 core technological advantages of JCT air-cooled laser welders, including Raycus integration, specialized torches, and ultimate portability..
Raycus Fiber Laser Source
Equipped with premium Raycus laser sources, delivering high beam quality, stable optical output, and long-term reliability for continuous metal fabrication.

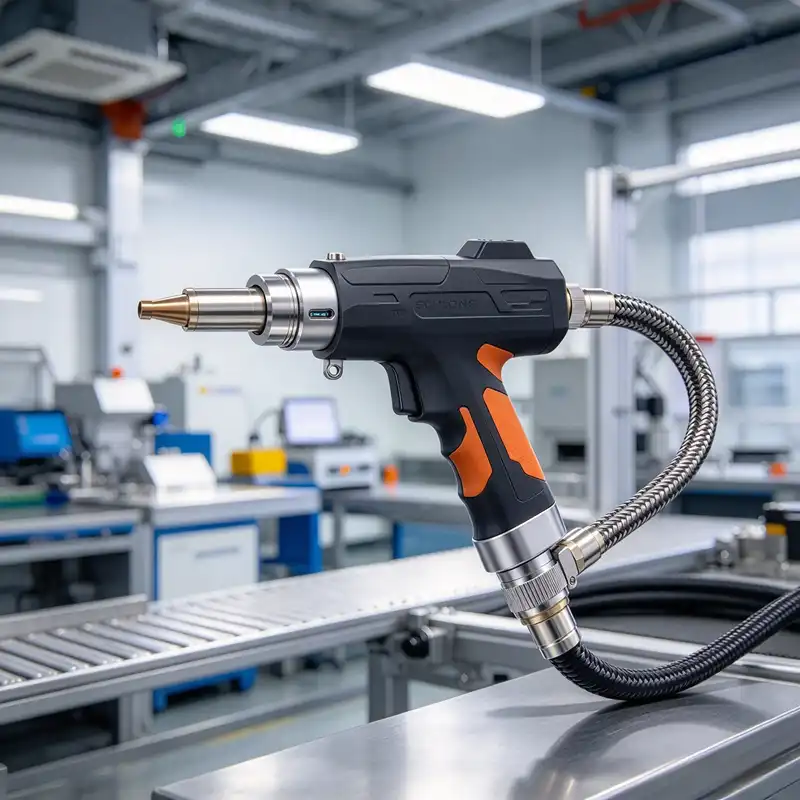

Specialized Air-Cooled Torch
Custom-designed air-cooled welding torch engineered to dissipate heat rapidly, ensuring comfortable grip and stable performance during extended shifts
Zero Water Maintenance
Eliminates external water chillers, pumps, and anti-freeze liquids entirely. No scaling, no freezing risks, and virtually zero maintenance overhead.
Extreme Temperature Resilience
Operates reliably in harsh ambient workshop temperatures ranging from -20°C to 45°C without thermal shutdown.

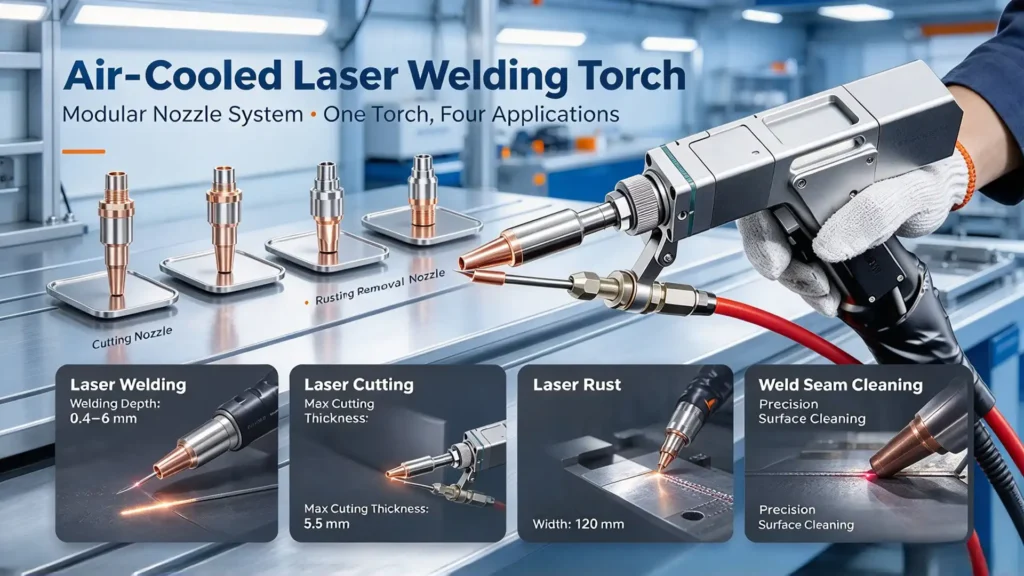

4-in-1 Multi-Functional System
Discover JCT 4-in-1 air-cooled handheld laser systems. One versatile machine handling laser welding (0.4-6mm), cutting (up to 5.5mm), rust removal, and weld cleaning.
Laser Welding
Achieves deep, uniform fusion with melt depth ranging from 0.4mm to 6mm, ensuring strong and oxidation-free structural joints.
Laser Cutting
Equipped with a dedicated cutting nozzle, supporting clean and precise metal cutting up to 5.5mm maximum thickness.
Laser Rust Removal
Efficiently strips away stubborn heavy rust and surface oxidation layers across a wide processing area.
Weld Seam Cleaning
Cleans post-weld discoloration and slag instantly up to 120mm maximum cleaning width, leaving a bright surface.
Welding Sample Showcase
Explore high-precision laser welding results on stainless steel, carbon steel, and aluminum by JCT systems
PREMIUM COMPONENTS ASSURANCE
Certified to Global Leading Standards
Reliability starts at the core. The key components that power our equipment—from the laser source to even the smallest electronic components—have all been certified to meet the world’s most stringent international standards.
GLOBAL PARTNERSHIPS
Trusted by Industry Leaders Worldwide
We take pride in powering the success of top-tier global manufacturers, research institutions, and industrial leaders. Our advanced laser and testing solutions are trusted worldwide to deliver uncompromising quality and peak performance.
FAQ
Q1: How does the air-cooled system work without a water chiller?
It utilizes high-efficiency internal cooling fans and specialized thermal dissipation channels designed specifically for the laser unit and torch, eliminating external water tanks entirely.
Q2: What is the main advantage of an air-cooled laser welder VS water-cooled models?
Air-cooled models offer ultimate portability, zero water maintenance, no risk of pipe freezing in winter, and lower overall operational weight.
Q3: Can operators switch easily between welding, cutting, rust removal, and cleaning?
Yes. The system features a quick-change modular nozzle design paired with preset modes on the touch screen. Operators can switch from welding to rust removal or weld seam cleaning in seconds without complex tool changes.
Q4: Will the air-cooled system overheat if my workshop operates in a tropical climate without air conditioning?
No. The M series is engineered with an operating temperature range of -20°C to 45°C. Our high-velocity internal cooling channels continuously dissipate heat, ensuring stable performance even in unconditioned or humid workshops.
Q5: Do I need professional welding certification or complex programming skills to operate this machine?
Not . The system comes with an intuitive multi-language touch screen and pre-programmed process libraries. New operators can master clean, consistent seams within hours after simple on-site training.
Q6: What kind of daily maintenance is required for the air-cooled torch and internal components?
Because there is no water cooling, you never need to clean water lines, descale pumps, or replace anti-freeze. Routine maintenance is limited to inspecting and wiping the protective lens and checking gas nozzles periodically.
Q7: How does JCT support us if an unexpected technical error occurs on the factory floor?
We provide 24/7 online video diagnostics and remote troubleshooting assistance.
Q8: What is included in the standard export package?and how is the machine protected during shipping?
Each unit is packed in a heavy-duty export wooden crate containing the main machine, the specialized air-cooled torch, a 10-meter fiber cable, the wire feeder, safety goggles, and a starter kit of nozzles and protective windows.
