Fiber Laser Cutting Machines for Sheet Metal & Tubes
High-precision fiber laser cutting solutions (1,500W to 12,000W) engineered for maximum production efficiency, slag-free cut edges, and superior structural stability in metalworking.
- Ultra-Wide Power Range (1.5kW - 12kW)
- Slag-Free & High Precision
- Maximum Production Efficiency
Ultimate Precision in Sheet Metal &Tube Fabrication
For metal working,they face a challenge: how to achieve precision cutting on carbon steel, stainless steel, and aluminum of varying thicknesses without the need for secondary grinding. Our fiber laser cutting machines utilize high-quality Max Photonics laser sources and Raytools autofocus cutting heads to deliver flawless, slag-free cut edges. Whether you’re using the 3015 series sheet metal cutters for mass production or the 60240 series tube cutters for processing structural profiles, these systems ensure precision for the lifetime of the machine. Built on a heavy-duty, seamless machine bed, our laser cutters are driven by Leadshine servo motors and equipped with Taiwanese Kotec guide rails, guaranteeing rapid acceleration of 1G and highly stable continuous operation.
Our Products
3015-1500W Fiber Laser Cutting Machine
It can precisely cut carbon steel up to 14 mm thickness, offering an entry-level laser solution for thin-sheet metal processing.
3015 3000W Fiber Laser Cutting Machine
It can continuously cut 18mm-thickness carbon steel and 10mm thickness stainless steel, setting a higher industry standard for sheet metal fabrication
3015 6000W Fiber Laser Cutting Machine
Equipped with a Raytools cutting head, it can quickly cut through 27mm-thickness carbon steel and is suitable for heavy-duty, high-speed industrial processing of thick sheets.
3015 12000W Fiber Laser Cutting Machine
It delivers a powerful output of up to 12,000 W for cutting 50mm thickness carbon steel, ensuring maximum productivity while meeting the demands of large-scale structural manufacturing
60120&60240&60360&60520

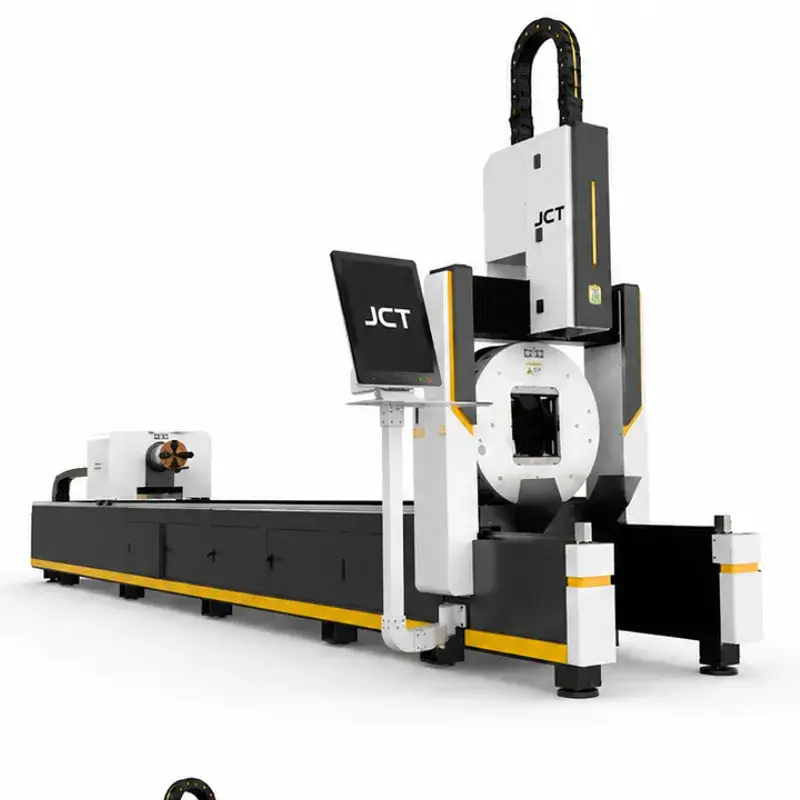

1500W Fiber tube laser cutting machine
It can precisely cut round tubes, square tubes, angle iron, H-beams, and channel steel with diameters of 120 mm, 240 mm, 360 mm, and 520 mm, and uses dual pneumatic chucks to achieve precision machining of tubular materials up to 6,000 mm, 9,000 mm, and 12,000 mm in length
60120&60240&60360&60520

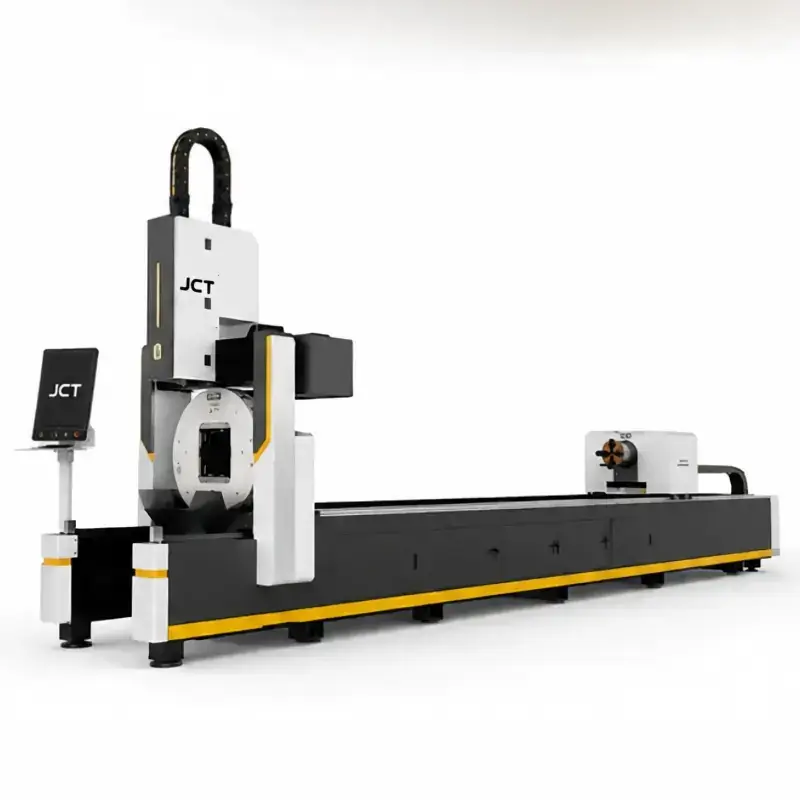

3000W Fiber tube laser cutting machine
It can accelerate the cutting process for more thicker structural steel pipes and angle bars, providing a high-power, CNC-based industrial solution for tube processing.
Core Technology

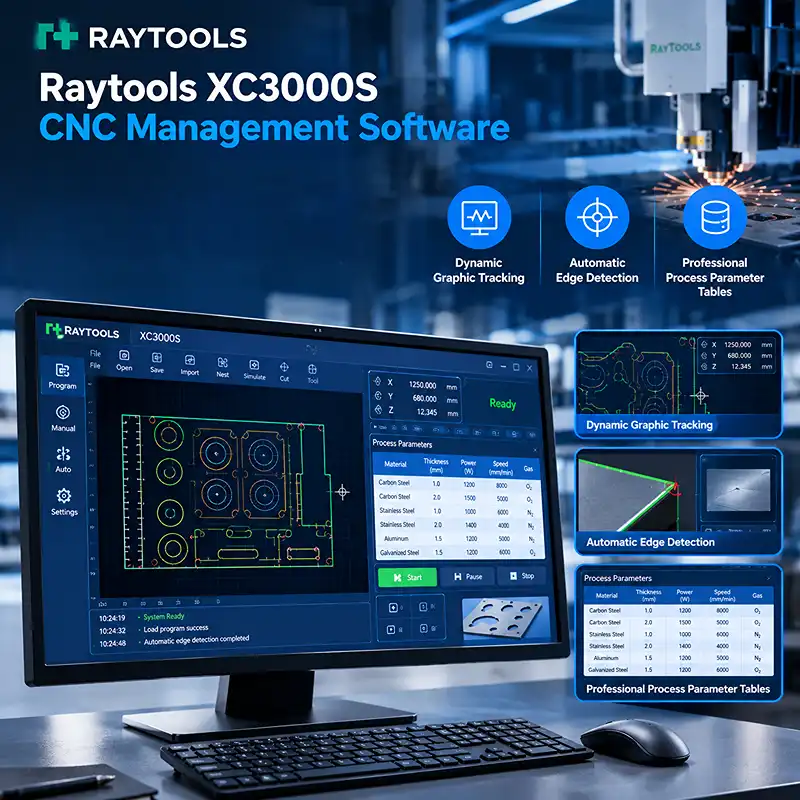

Raytools XC3000S CNC System
Built on a stable Windows platform, the Raytools XC3000S CNC system effortlessly handles complex cutting operations. The system’s interface features dynamic graphic tracking, automatic edge detection, and built-in professional process parameter tables. Operators simply select the material and thickness parameters, and the machine performs high-speed, high-quality cutting.

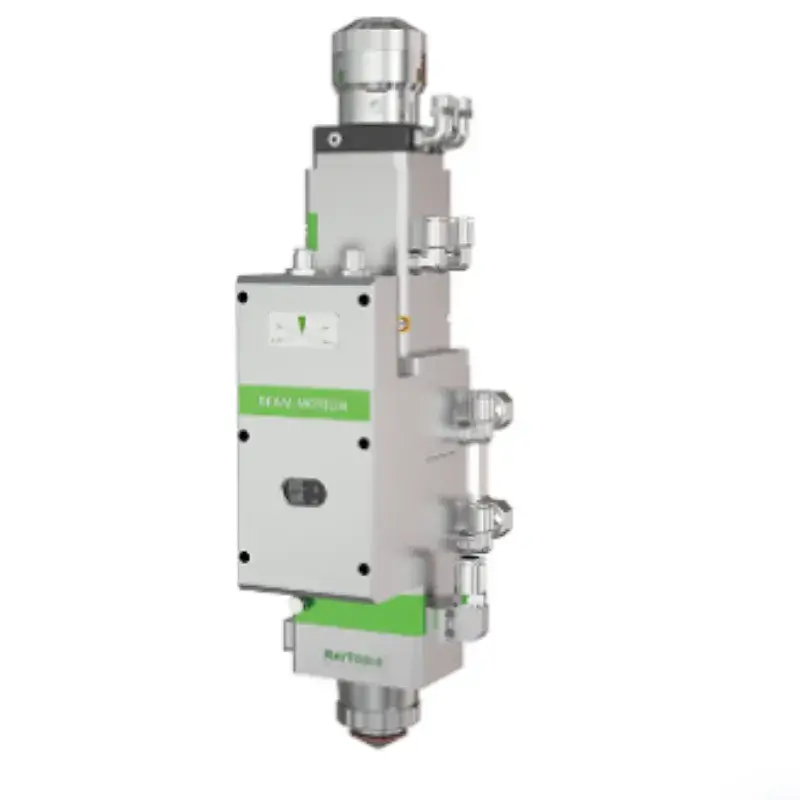

Raytools Autofocus Laser Cutting Heads
The system is equipped with genuine Raytools BM110 and BS series laser cutting heads. These cutting heads feature an optimized optical configuration and a high-efficiency gas flow design, enabling automatic focal length adjustment to seamlessly penetrate and cut materials of varying thicknesses. This significantly improves edge quality and extends the service life of the internal protective lenses.

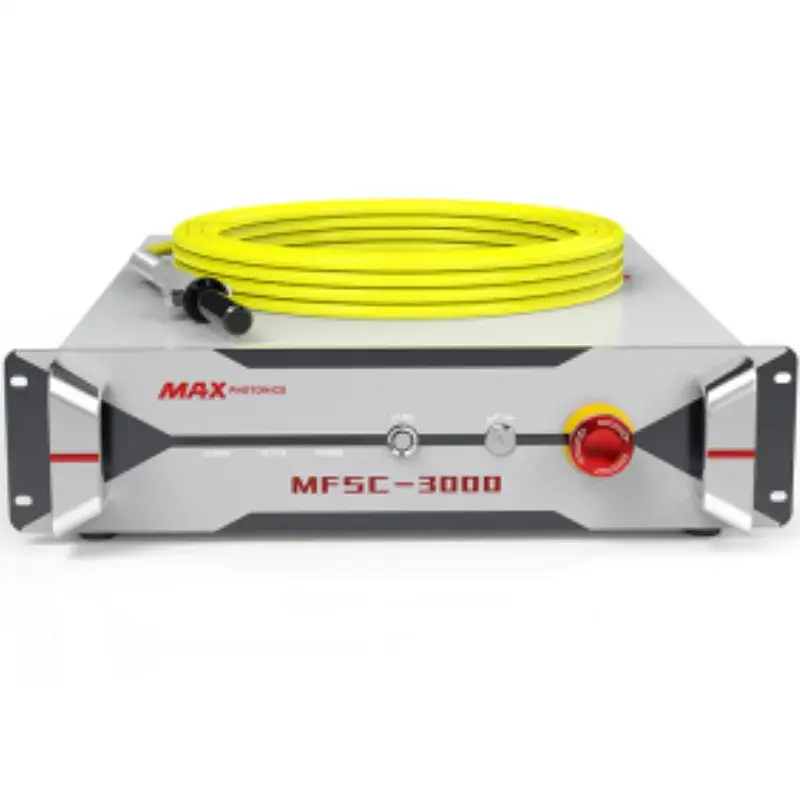

MAX 1500W & 3000W Fiber Laser Source
The core of the JCT laser cutting machine is a highly reliable MAX 1500W&3000W fiber laser. This laser generator features an advanced modular redundant design that ensures extremely stable performance during continuous industrial operation. Despite its high power output, the device remains compact, lightweight, and easy to move, enabling seamless system integration. This not only ensures the overall safety of the product but also provides the consistent optical energy required for high-speed, precision metal cutting.

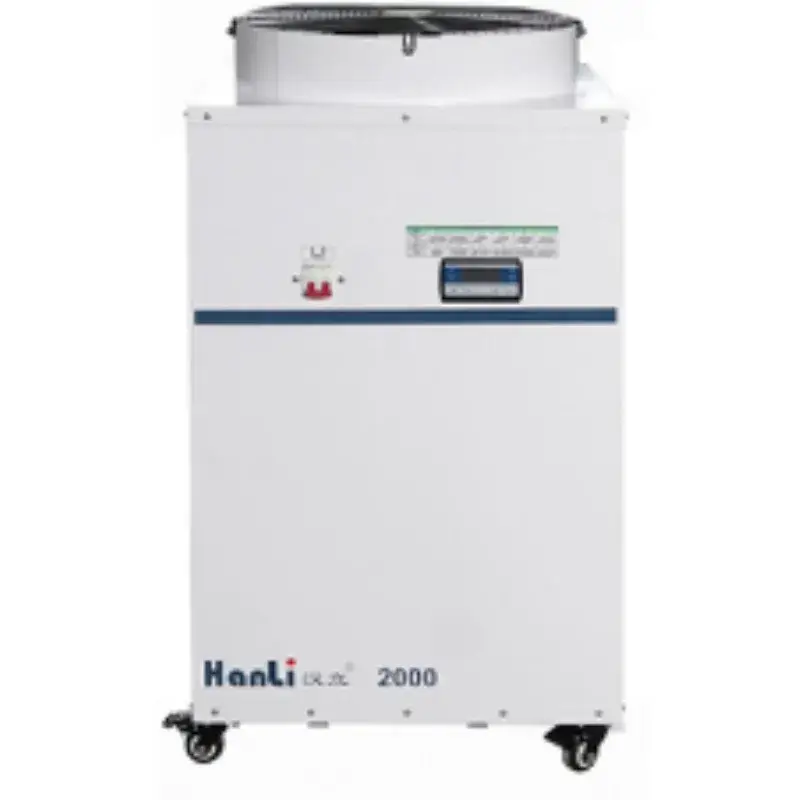

Precision Hanli Chillers & Schneider Electricals
Our laser cutting machines come standard with a professional Hanley dual-cooling system, capable of handling the extreme thermal loads generated by laser sources ranging from 1,500 W to 12,000 W. The interior of the equipment features an electrical cabinet that meets IP protection standards and is protected by rugged components from Schneider Electric of France, ensuring stable machine operation regardless of the external factory environment.

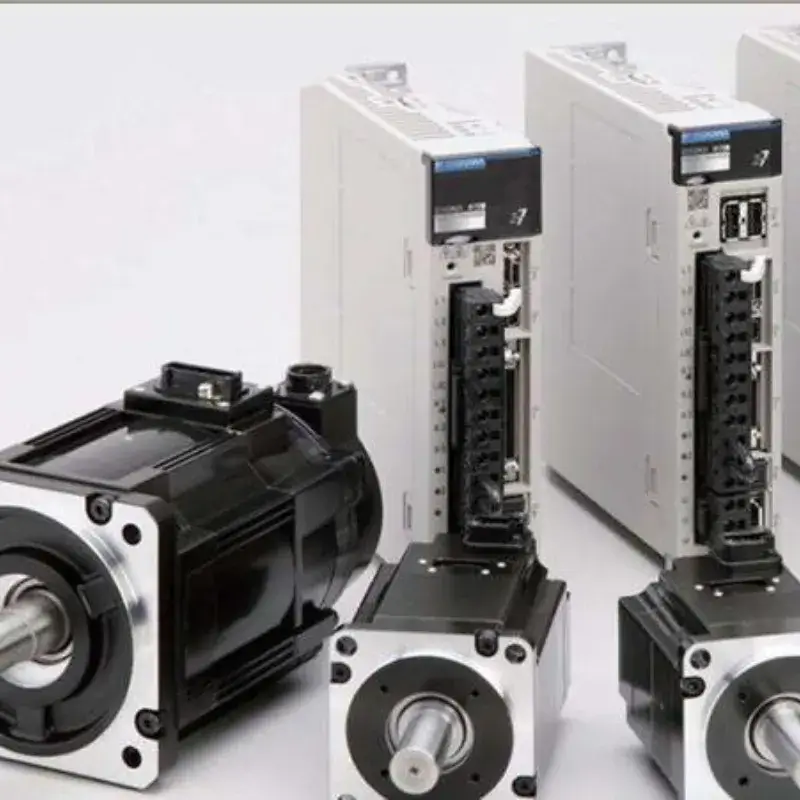

Leadshine Servo Motors & Vastun Rack Systems
To ensure positioning accuracy of ±0.03 mm/m and a maximum acceleration of 1 G, we have implemented a state-of-the-art mechanical drive system. The X and Y axes are driven by responsive Leadshine AC servo motors and move smoothly along Taiwanese Kotec square guide rails and Vastun high-precision ground rack-and-pinion assemblies.

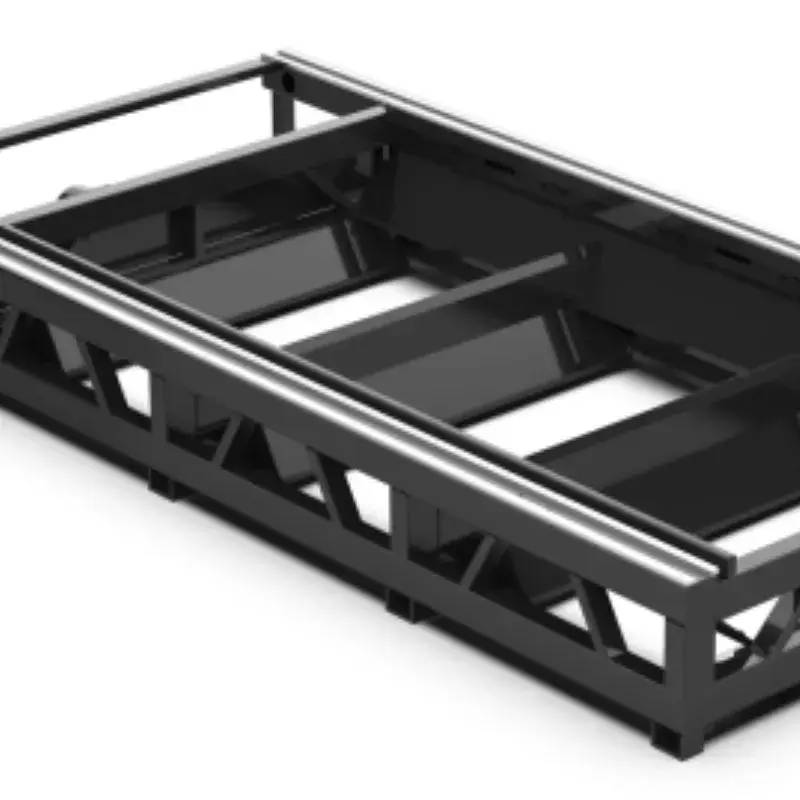

Heavy-Duty Machine Bed & Aerospace Aluminum Crossbeam
Superb cutting precision begins with a robust machine foundation. The machine tools for our laser cutting machines feature aerospace-grade aluminum alloy beams extruded using thousand-metric-ton presses, combining lightweight construction with high strength to deliver exceptional dynamic performance. Combined with heavy-duty, reinforced columns and a seamless machine bed, this structure effectively eliminates high-speed vibrations, ensuring reliable operation without deformation for over 10 years.
Applications

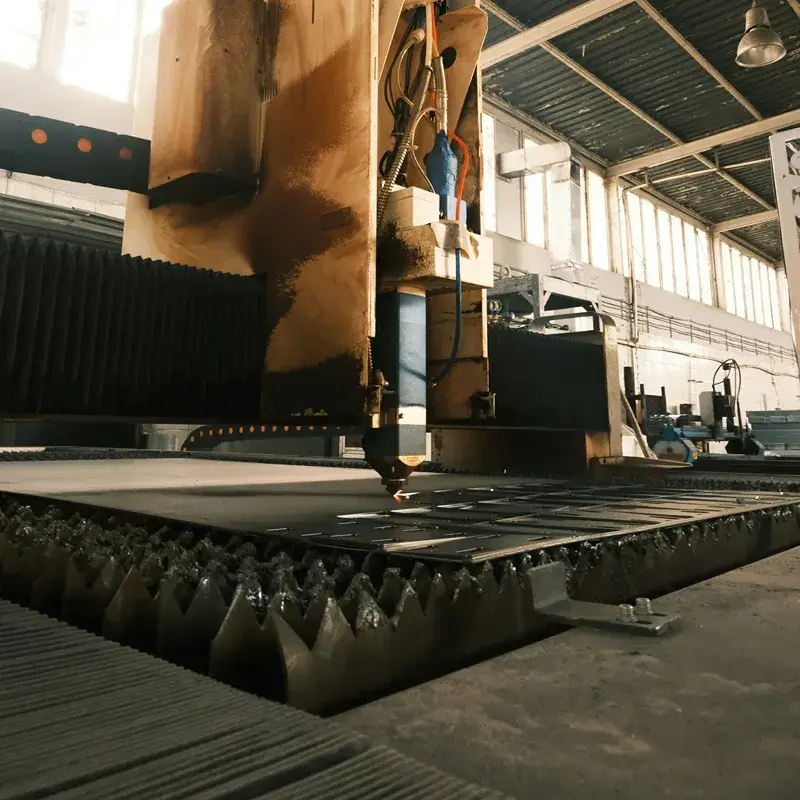

structural metal beams
Manufacturing metal structural beams requires cutting thick, heavy carbon steel plates. The Model 3015 12,000W fiber laser cutting machine can easily cut through carbon steel up to 50 mm thick. This ultra-high power produces vertical, slag-free cuts on thick metal components, completely eliminating the need for post-welding chamfering and grinding.

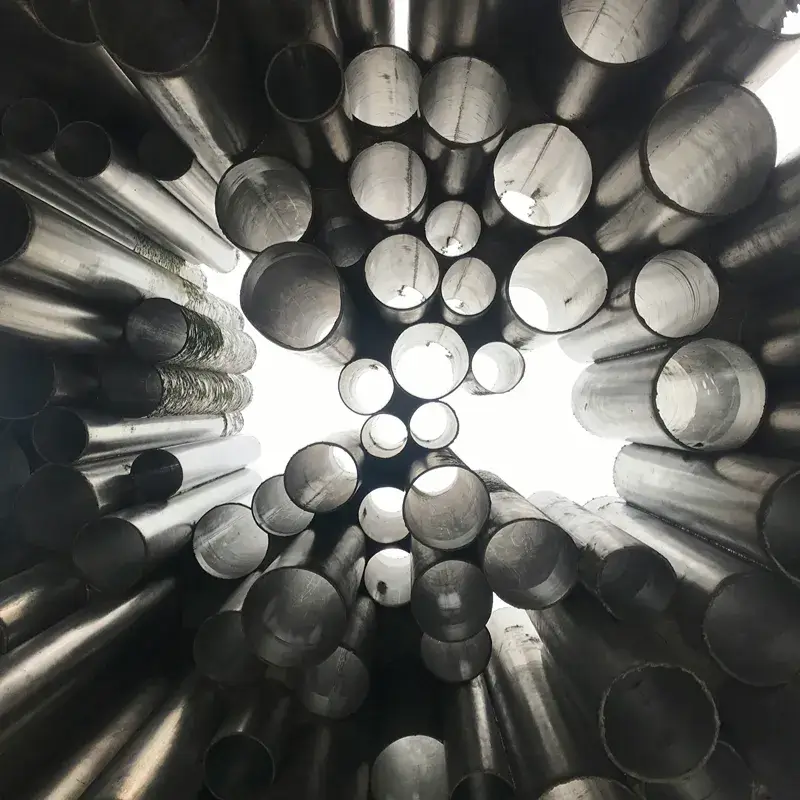

Metal Tube
Metal tubing is widely used in the manufacture of metal furniture and fitness equipment, with tubing cutting being a key process. The 60240 fiber laser tube cutting machine features dual front-and-rear pneumatic full-stroke chucks that can securely clamp round tubes with a maximum diameter of φ520 mm and a length of up to 12,000 mm. This machine ensures zero mechanical deformation when cutting intersecting lines and holes.

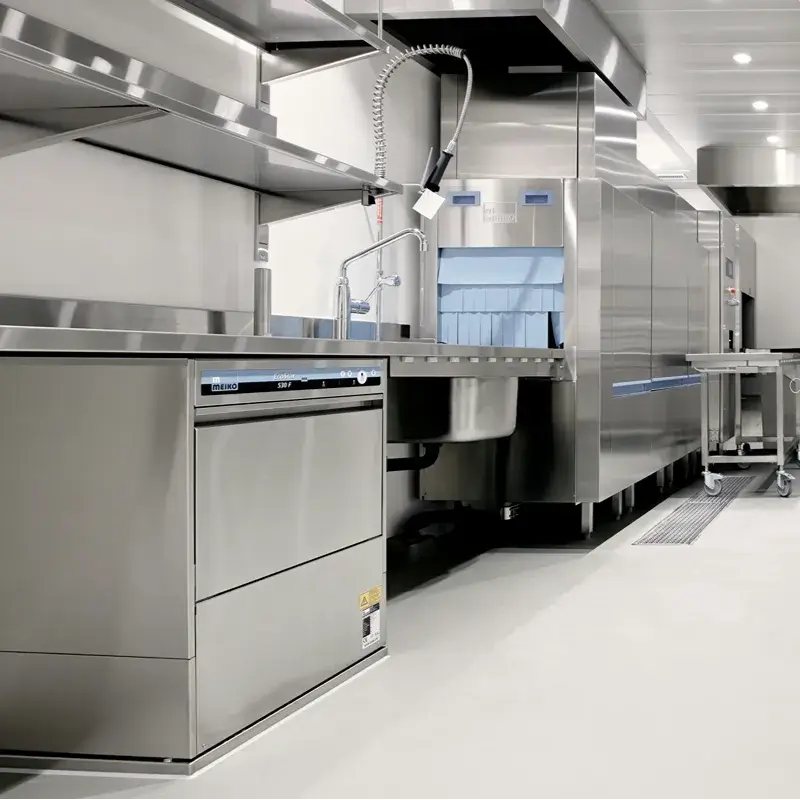

commercial kitchen supplies
For commercial kitchen supplies manufacturing food-grade commercial sinks and range hoods requires flawless cutting of stainless steel. The Model 3015 3000W fiber laser sheet metal cutter can quickly cut stainless steel up to 10 millimeters thick without causing thermal distortion. Additionally, our JCT laser metal cutting machines are equipped with a specialized serrated worktable featuring scratch-resistant properties, ensuring that highly reflective stainless steel sheets remain intact.

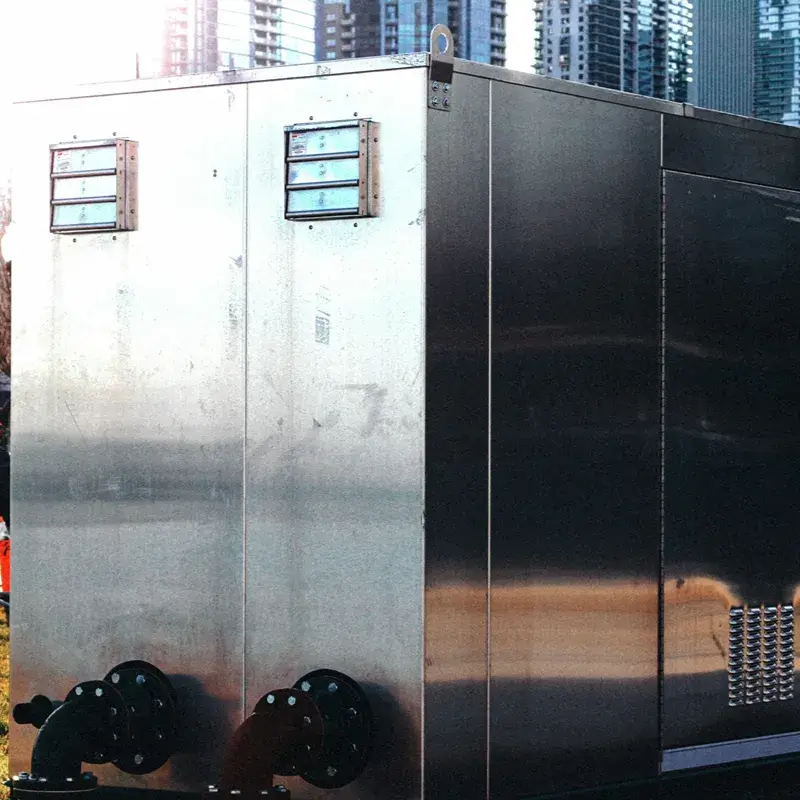

electrical enclosures
For electrical cabinet manufacturers, daily production requires machining a variety of thin-gauge galvanized and carbon steel parts, and the tolerances of mounting holes must be precise. JCT’s 1500W fiber laser cutting machine utilizes ultra-responsive Leadshine servo motors and Kotec guide rails to achieve a repeatability of ±0.02 mm/m, ensuring that every panel can be perfectly bent and fit together precisely.

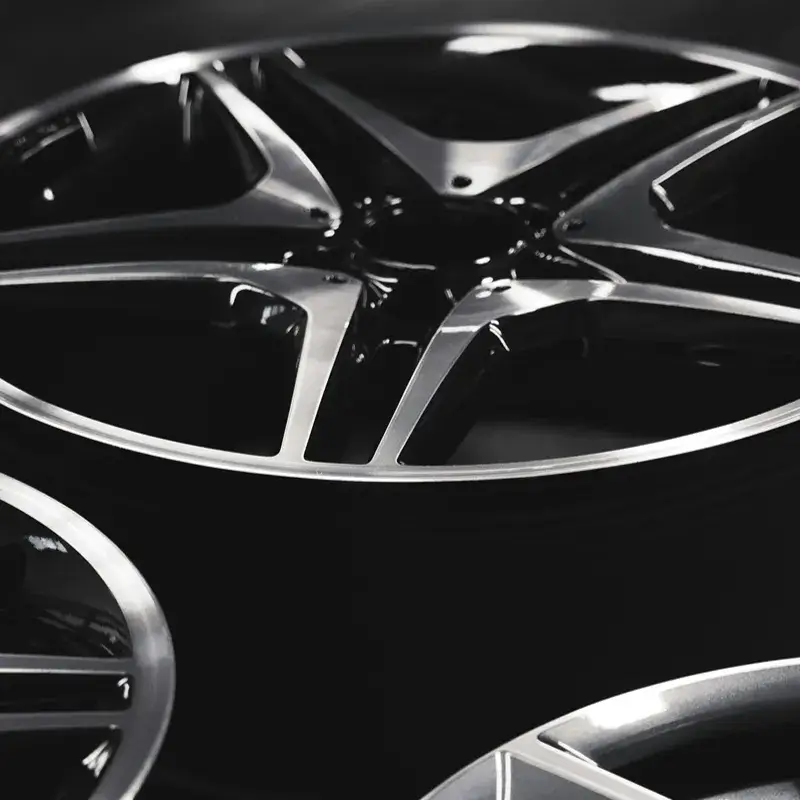

vehicle parts manufacturing
The automotive industry places stringent demands on high-speed, high-precision cutting of aluminum alloys and high-strength metals. Similarly, vehicle parts manufacturing have very high standards and requirements for cutting machines. Our JCT fiber laser cutting machines feature aerospace-grade aluminum alloy beams, extruded using thousand-metric-ton-class equipment, which combine lightweight construction with high strength to deliver exceptional dynamic performance. This highly rigid and corrosion-resistant structure ensures outstanding stability during high-speed operation, enabling the rapid, distortion-free processing of complex automotive brackets and aerospace components while meeting the most stringent precision requirements.
agricultural equipment
The manufacture of agricultural equipment requires the machining of thick, wear-resistant carbon steel used to produce plows, chassis, and custom gears. Our equipment is equipped with high-power 6,000W or 12,000W laser sources and Raytools autofocus cutting heads, enabling it to easily cut through thick steel plates. This system delivers clean, high-precision cuts for heavy-duty agricultural machinery components, eliminating the need for secondary deburring and significantly improving factory output and assembly speed.
Technical Specifications
| Category | Specification | 3015 (1500W) | 3015 (3000W) | 3015 (6000W) | 3015 (12000W) | 6024 (1500W Tube) | 6024 (3000W Tube) |
|---|---|---|---|---|---|---|---|
| Working Area | Processing Size | 3000 × 1500mm | 3000 × 1500mm | 3000 × 1500mm | 3000 × 1500mm | Φ10-Φ240mm L≤6300mm |
Φ10-Φ240mm L≤6300mm |
| Laser Power | Output (W) | 1500W | 3000W | 6000W | 12000W | 1500W | 3000W |
| Max Thickness | Carbon Steel | 19mm | 18mm | 27mm | 50mm | 14mm | 18mm |
| Max Thickness | Stainless Steel | 6mm | 10mm | 18mm | 30mm | 6mm | 10mm |
| Motion & Speed | Max Speed | 70m/min | 70m/min | 80m/min | 70m/min | 80m/min | 80m/min |
| Motion & Speed | Max Acceleration | 1G | 1G | 1G | 1G | 1G | 1G |
| Motion & Speed | Positioning Acc. | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Core Parts | Cutting Head | Raytools BM110 | Raytools BM110 | Raytools BS06K | Raytools BS12K | Raytools BM110 | Raytools BM110 |
| Core Parts | CNC System | Raytools XC3000S | Raytools XC3000S | Raytools XC3000S | Raytools XC3000S | Raytools CNC | Raytools CNC |
| Core Parts | Water Chiller | Hanli 1500 | Hanli 3000 | Hanli 6000 | Hanli 12000 | Hanli 1500 | Hanli 3000 |

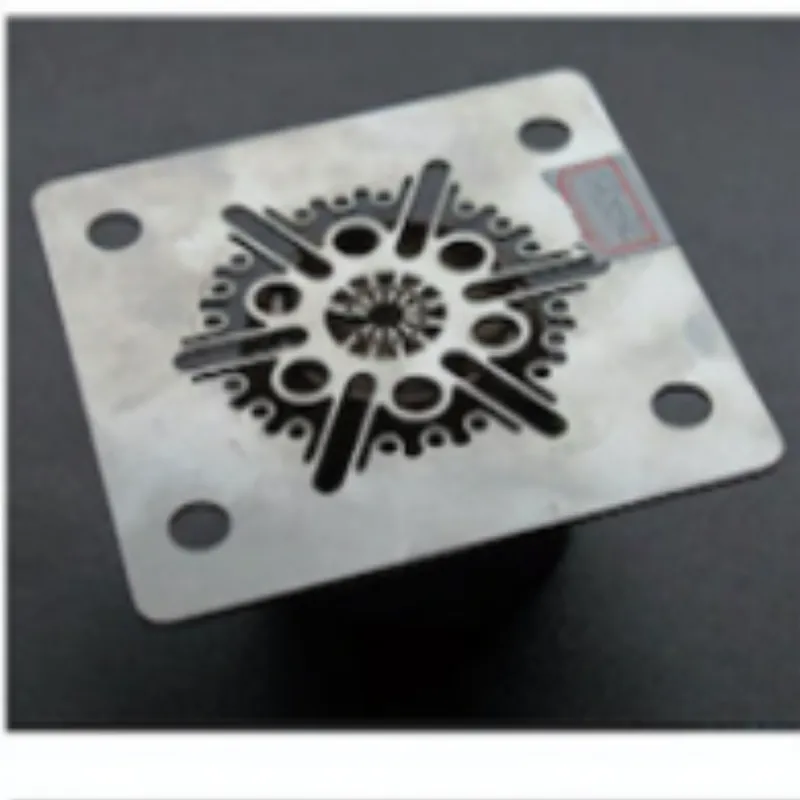

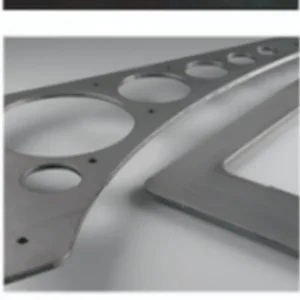

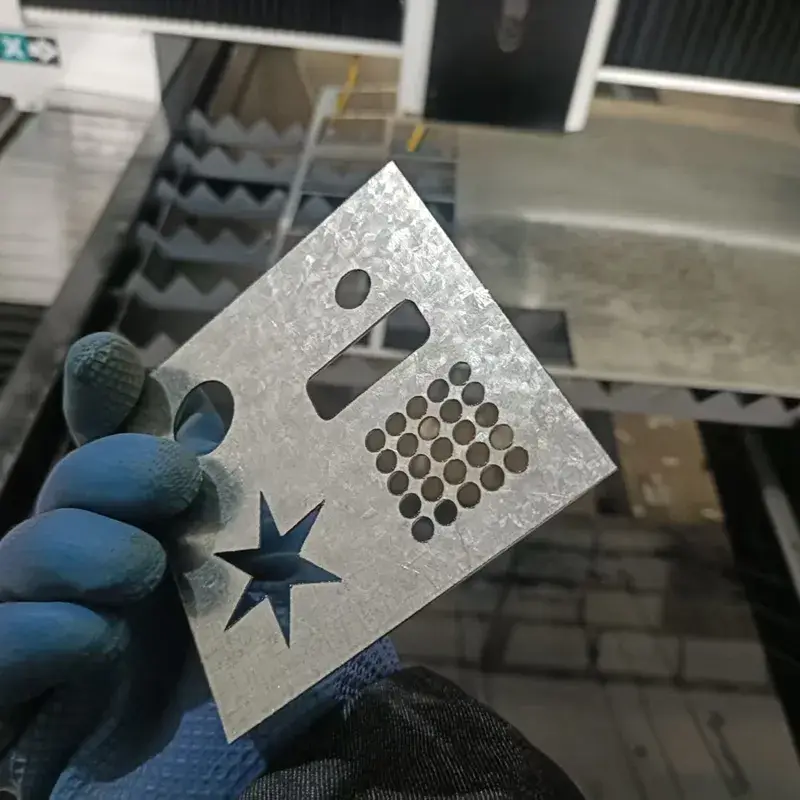

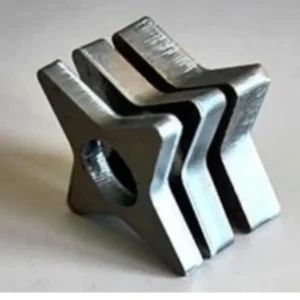

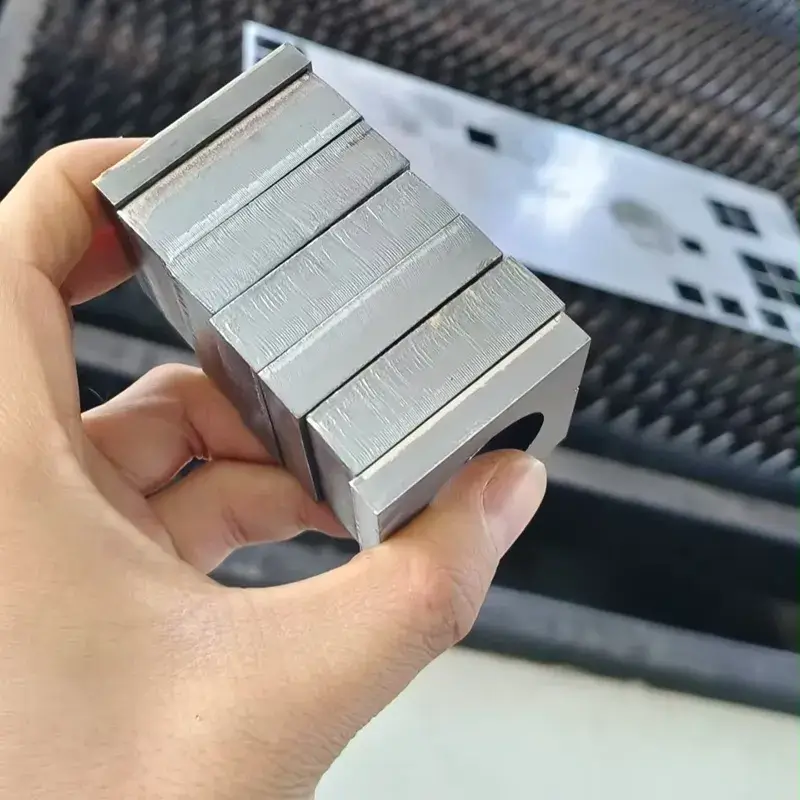

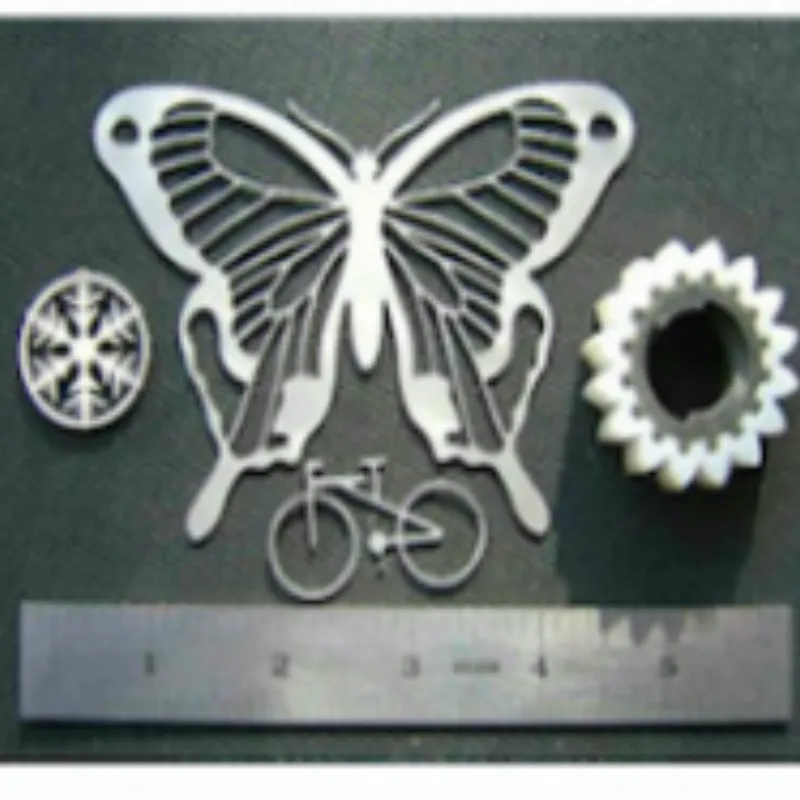

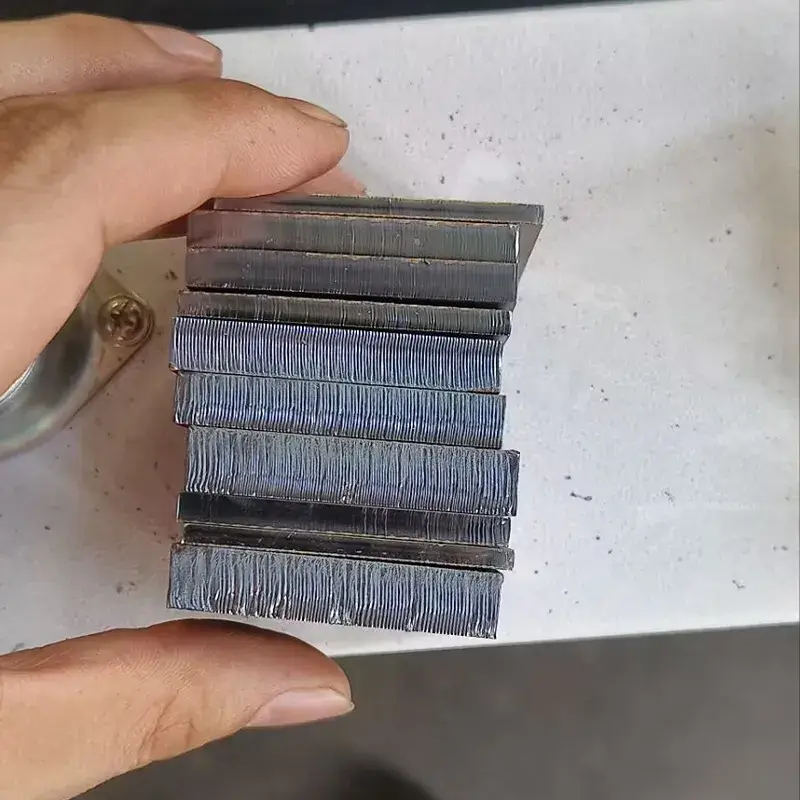

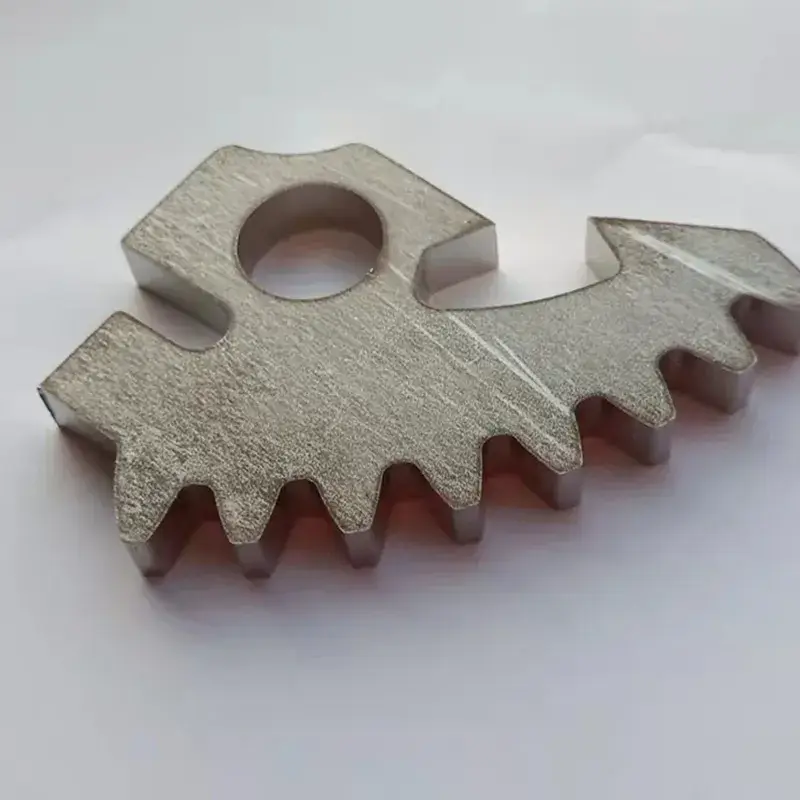

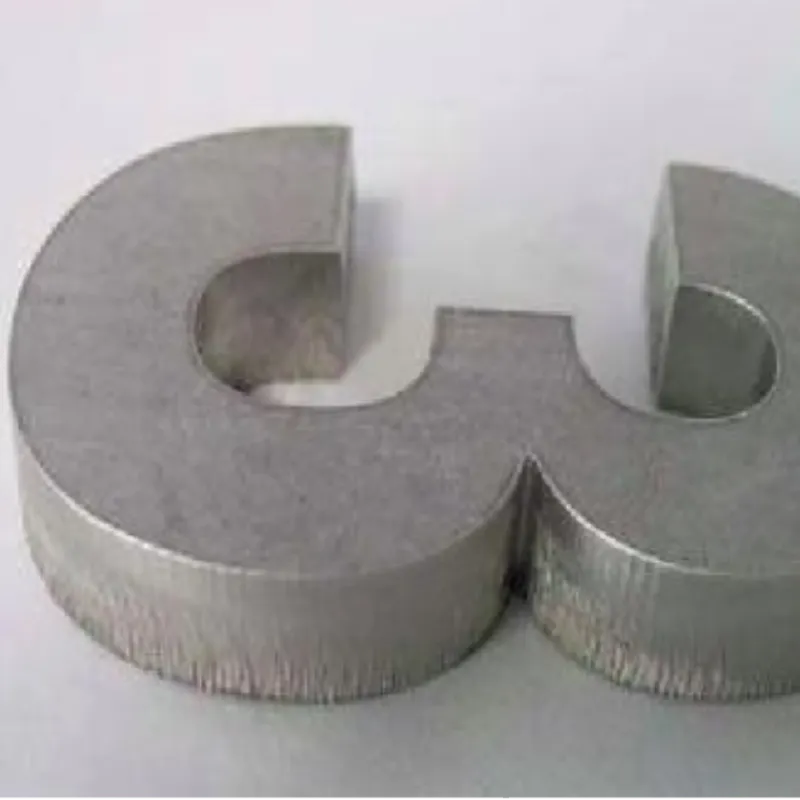

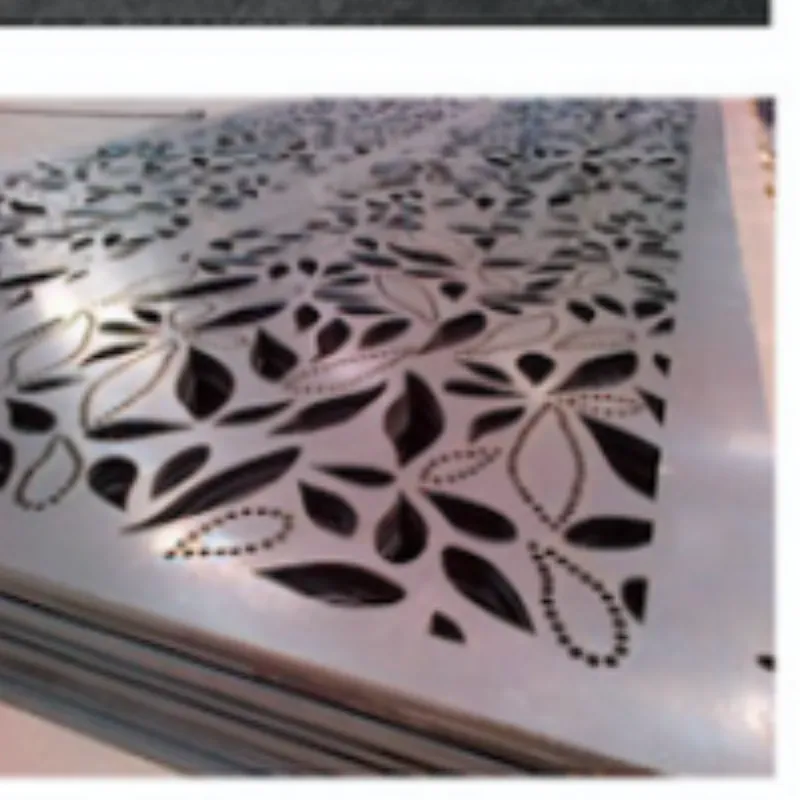

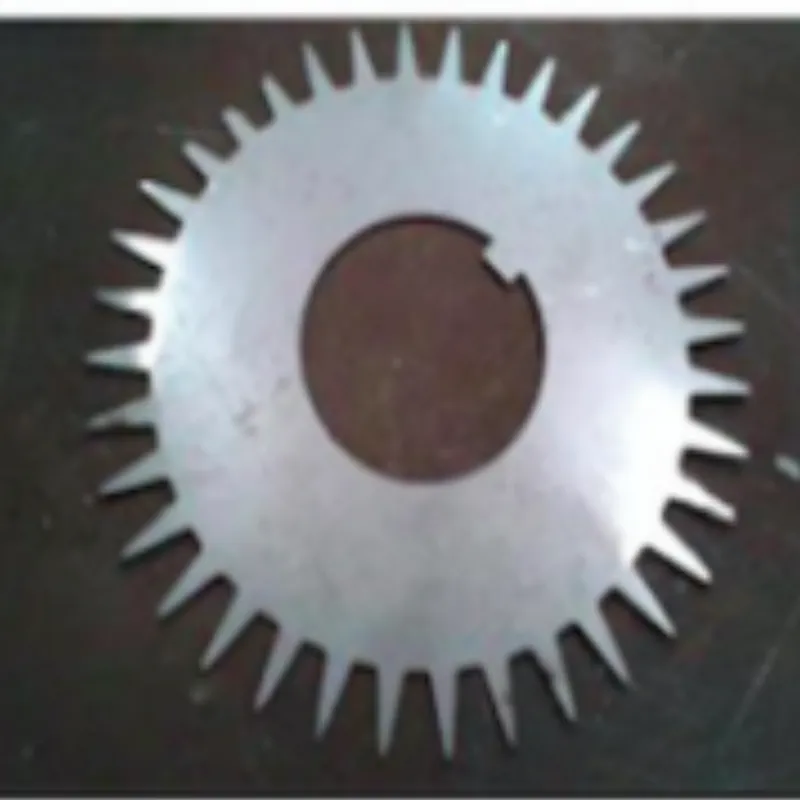

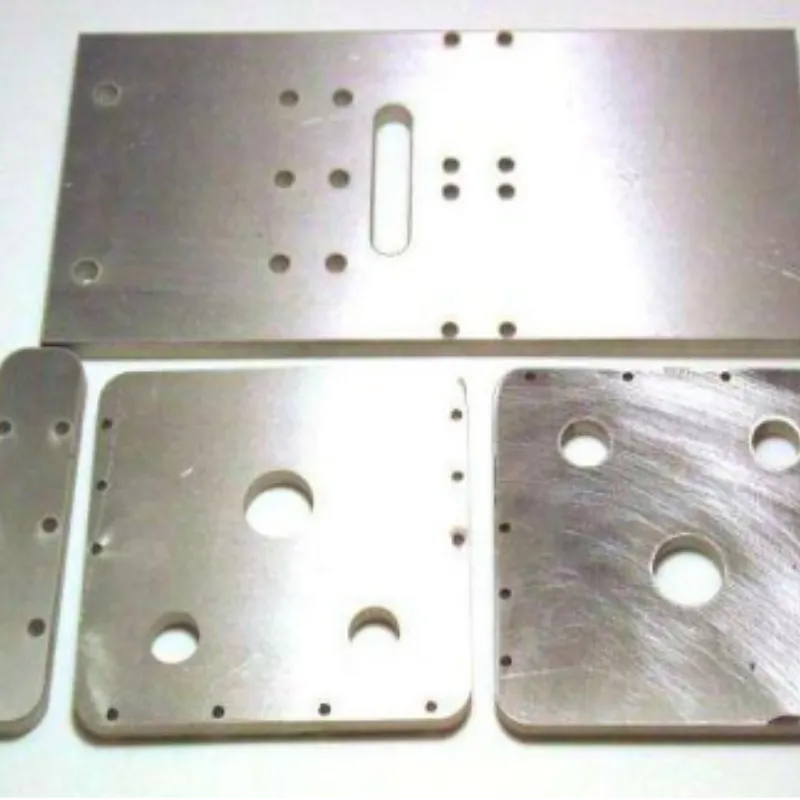

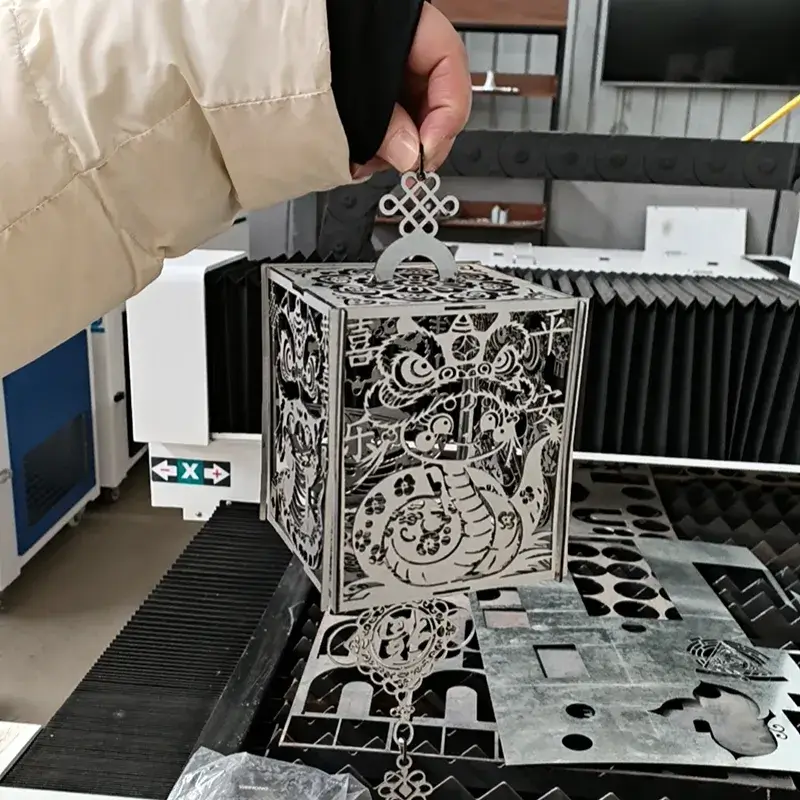

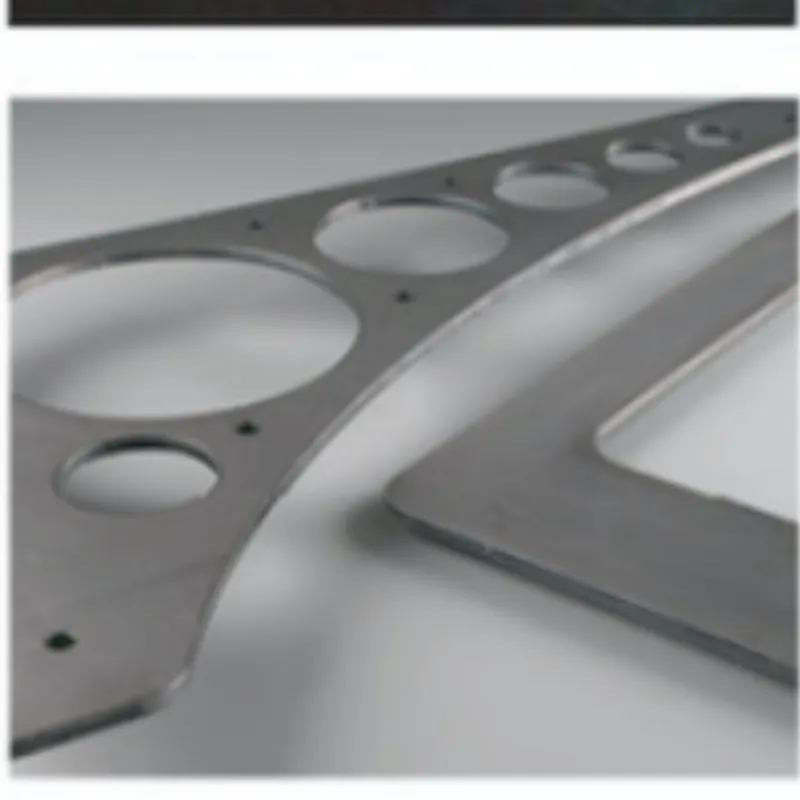

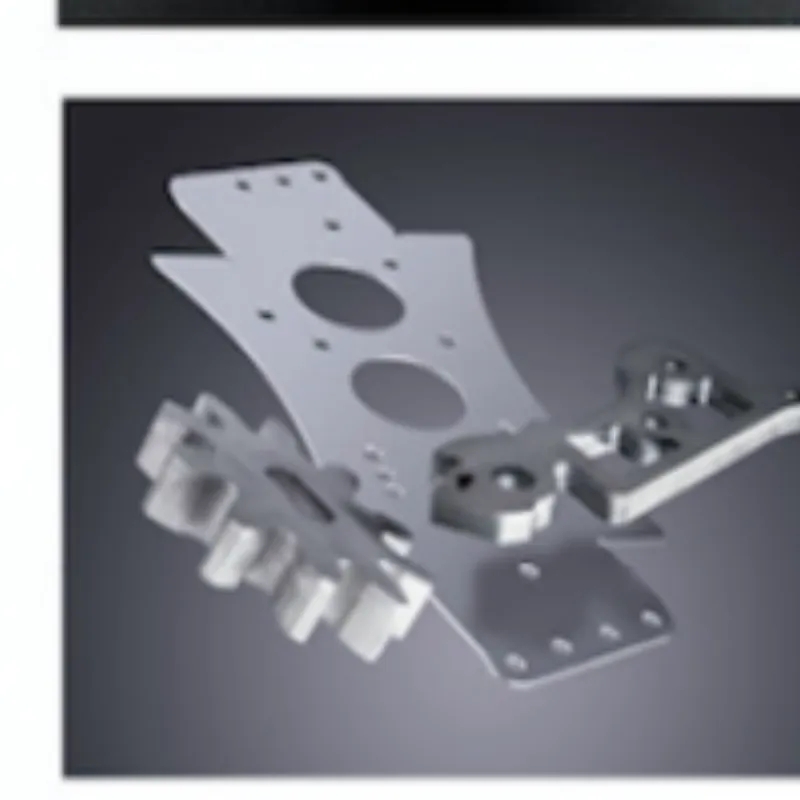

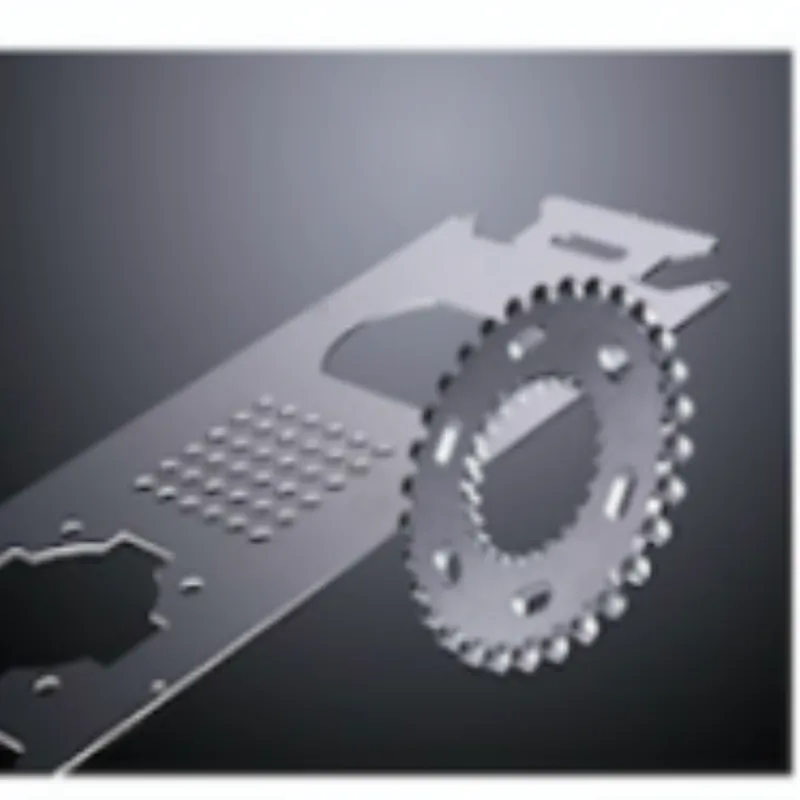

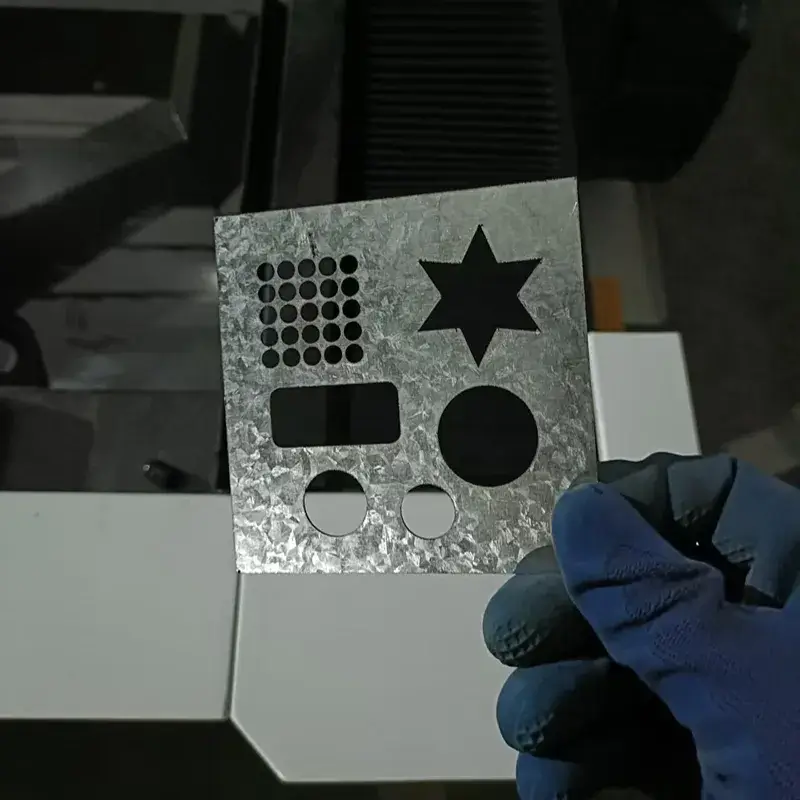

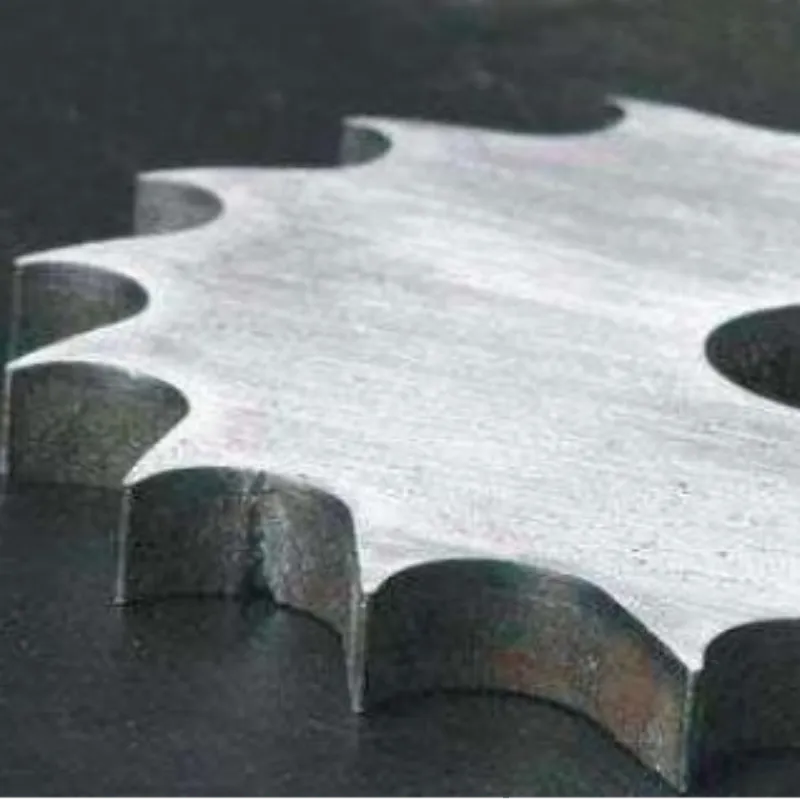

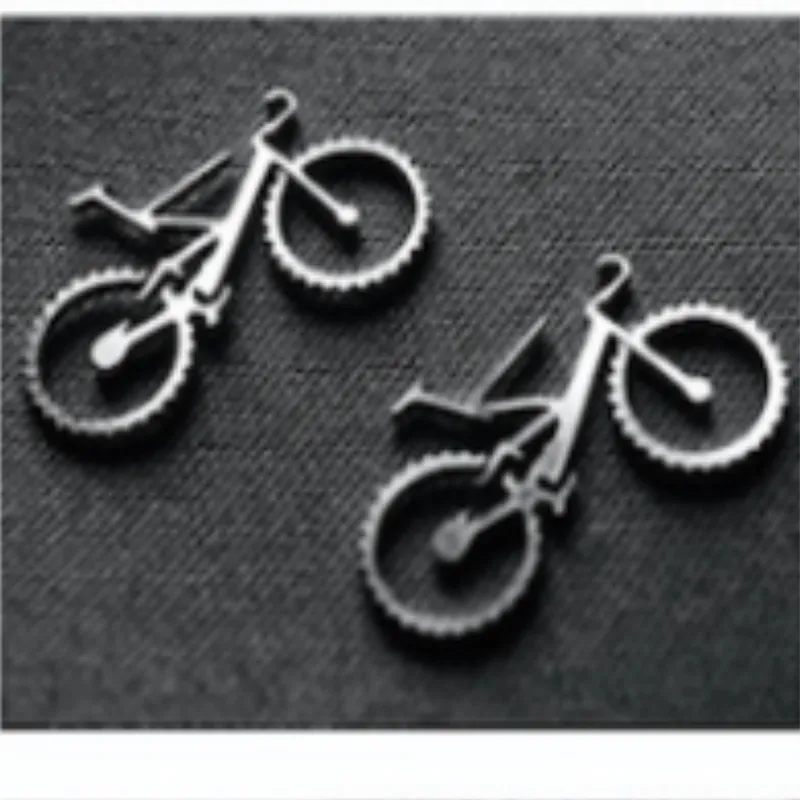

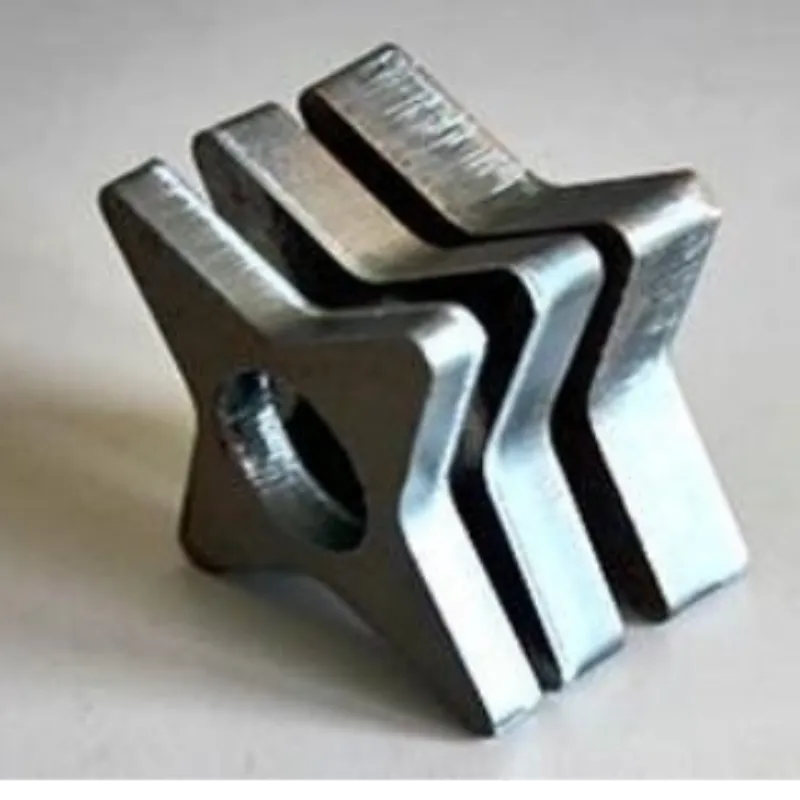

CUTTING Sample Showcase
Explore high-precision laser cutting results on stainless steel, carbon steel, and aluminum by JCT systems.
OUR CORE ADVANTAGES
Why Choose Us
With over 10 years of rich industry experience, we are committed to served as a comprehensive technology manufacturer partner worldwide.We understand that your successful product relies on two core pillars: efficient manufacturing and uncompromising quality control.As a result, we offer a dual-core product line: first, laser and FAB solutions that ensure efficient manufacturing; and second, environmental test chambers for testing the performance of your products—all designed to address your specific industry issues and challenges.
Industry-Specific Customization
Whether you’re in the sheet metal or metalworking industries, or specialize in testing semiconductors and automotive electronics, our equipments all can be customized to meet your specific needs. We don’t just sell standard machines—we provide precise solutions that perfectly match your material and environmental requirements.
High-Efficiency Manufacturing
In the manufacturing process, time is your most valuable treasure. We offer fiber laser welding, cutting, and cleaning,etc solutions . All of them can provide deep penetration, distortion-free welding, precise cutting, and efficient cleaning for sheet metal and various types of metal processing.
Compliance and Quality Control
We ensure that your finished products can pass the most rigorous environmental testing. Our environmental test chambers help you meet strict global standards such as JEDEC, AEC-Q100, and key battery safety certifications, all these can shorten your R&D cycle and eliminating the risk of customer returns .
10+ Years & Global Support
With over a decade of technical expertise and a robust supply chain, we guarantee on-time delivery worldwide. More importantly, our engineering team will provide lifetime technical support, and we are committed to being your stable and reliable partner and friend for life.
PREMIUM COMPONENTS ASSURANCE
Certified to Global Leading Standards
Reliability starts at the core. The key components that power our equipment—from the laser source to even the smallest electronic components—have all been certified to meet the world’s most stringent international standards.
GLOBAL PARTNERSHIPS
Trusted by Industry Leaders Worldwide
We take pride in powering the success of top-tier global manufacturers, research institutions, and industrial leaders. Our advanced laser and testing solutions are trusted worldwide to deliver uncompromising quality and peak performance.
FAQ
Q1: What is a fiber laser cutting machine?
A fiber laser cutting machine is a type of equipment that uses a laser fiber to generate a high-intensity laser beam, then focused by a cutting head to instantly melt and vaporize metal. It is the most advanced and efficient CNC industrial equipment used for precision sheet metal and metal tube processing
Q2: How does a tube laser cutting machine work?
A tube laser cutting machine uses CNC software (such as Raytools) to precisely execute CAD drawings. The system synchronizes responsive Leadshine servo motors with the laser source, guiding the cutting head as it moves across the metal surface to cleanly cut through the material with a repeatability of ±0.02 mm/m.
Q3: What is the difference between a fiber laser cutting machine and a CO₂ laser cutting machine?
CO₂ laser cutting machines are primarily used to cut non-metallic materials (such as wood, acrylic, and plastic), while fiber laser cutting machines are specifically designed for metal processing.
Q4: How to use laser cutting machine?
Our laser cutting machines are very intuitive to operate. We provide a total of 8 GB of video guidance covering mechanical, electrical, and software operations. Operators just need to import their design files—using the 2 GB of ready-to-use drawing files we provide—into the Windows-based Raytools software, select the preset material parameters, and press button to start cutting.
Q5: how much is a laser cutting machine?
The price of a laser metal cutting machine depends largely on its power and intended application. An entry-level 1,500-watt model for cutting thin sheets offers excellent value for money, while a heavy-duty 12,000-watt model for cutting 50-millimeter carbon steel requires a higher initial investment but delivers unmatched production efficiency. Want a customized quote? please contact us directly.
Q6: where can I find a tube laser cutting machine?
You can purchase directly from professional laser cutting machine manufacturers in China, such as JCT. We offer complete factory-direct solutions, CE/FDA certification, and high-quality machines built with heavy-duty seamless beds to ensure stable, uninterrupted industrial production 24/7.
Q7: What materials can a laser cutting machine process?
Our laser cutting machine can seamlessly process a wide variety of industrial metals, including carbon steel, stainless steel, aluminum, brass, and galvanized sheet metal.
Q8: What after-sales services does your company provide for its laser cutting equipment?
We value long-term partnerships. We provide a 2 year entire unit warranty (excluding consumables) service with comprehensive operating manual. In addition, our professional after-sales service department provides 24/7 technical support to minimize your equipment downtime.
