Aesthetic Laser Welding & Cleaning for Retail Display Racks
JCT’s comprehensive laser processing solutions deliver flawless, aesthetically perfect joints for point-of-purchase (POP) display stands, metal mesh and luxury retail display units. They completely eliminate burn-through in thin-walled tubing, destructive corner grinding and sharp spatter.
The Fabrication Challenge
Fabricating retail store fixtures, slatwall accessories, and POP displays requires joining intricate wire grids and ultra-thin metal tubing (0.6mm to 1.2mm). Brands demand visual perfection, making traditional TIG and MIG welding a massive liability

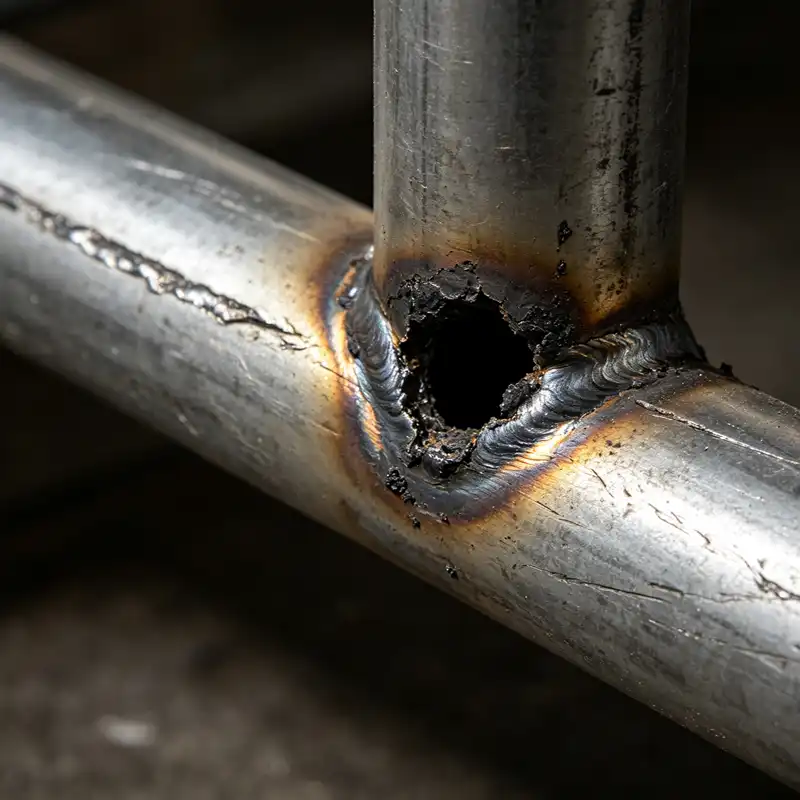

Catastrophic Burn-Through on Ultra-Thin Tubes
Retail display racks utilize highly economical, ultra-thin carbon steel or aluminum tubing to reduce shipping weight. Traditional arc welding floods these delicate structures with uncontrolled heat. The thin walls instantly collapse, blowing massive holes through the joints. Repairing these blowouts leaves ugly, bulky scars that ruin the fixture’s sleek design.
Destructive Grinding on Intricate Geometries
MIG welding leaves a bulky, convex bead covered in spatter. To make the rack visually acceptable, fabricators must aggressively grind these joints. Using flat abrasive wheels on intricate wire meshes or 15mm round tubes invariably creates unnatural flat spots and gouges, destroying the geometric symmetry required by high-end retail brands.
Customer Safety Hazards (Sharp Spatter)
Shoppers directly interact with retail racks. If a single droplet of MIG welding spatter is missed during the grinding phase, it becomes a sharp, jagged hazard under the paint. This snag risk can damage expensive retail garments or cut a customer’s hand, leading to immediate product rejection and liability for the manufacturer
Why Metal Shelving Need laser welding？
Pre-Weld Oil & Contaminant Ablation

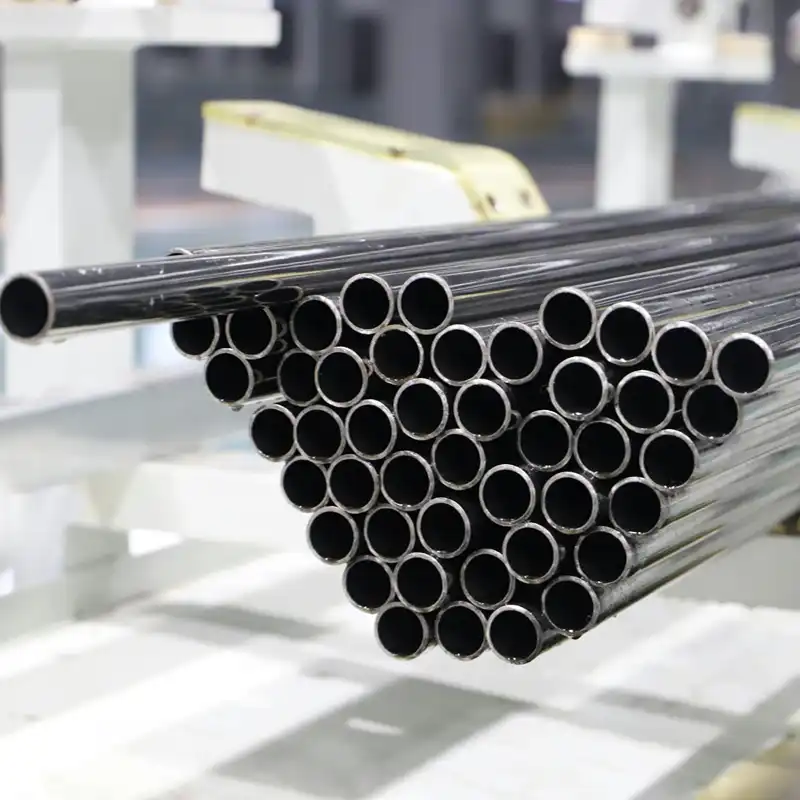

Thin-wall tubing and wire stock are heavily coated in drawing lubricants during their manufacturing process.
If welded over, these oils cause porosity. Switch the JCT system to cleaning mode to instantly vaporize these hydrocarbons. The laser reflects off the bare metal safely, prepping complex wire grids for welding without chemical solvents.
Low-Heat, Spatter-Free Welding

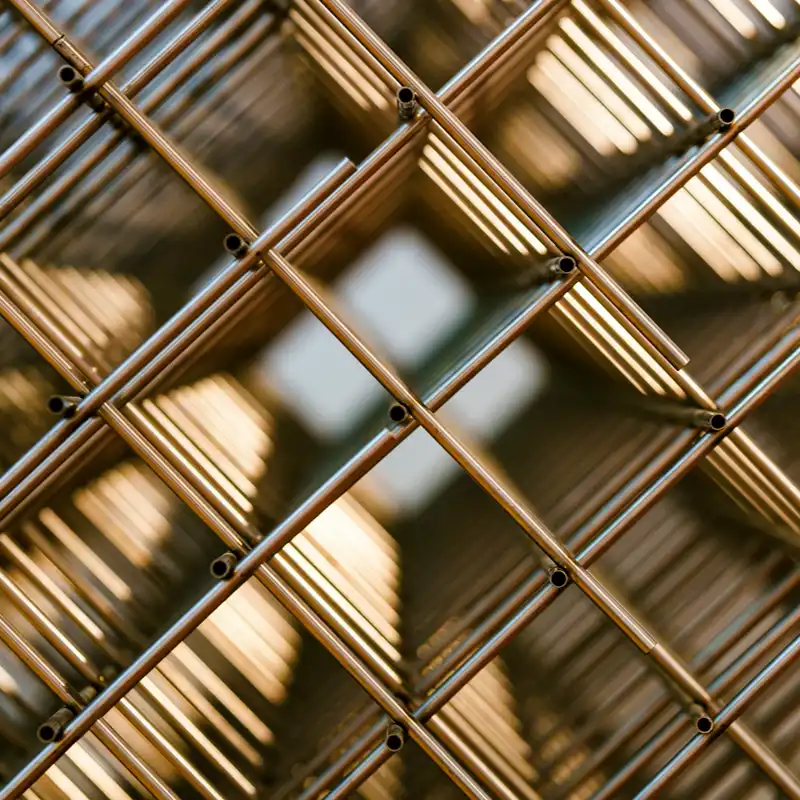

Switch to welding mode to join the delicate wire meshes or 0.8mm tubular frames. The CW laser penetrates instantly and travels rapidly. The micro-focused energy prevents the thin walls from collapsing. The resulting joint is incredibly narrow, perfectly smooth, and 100% free of sharp spatter, preserving the original geometric elegance of the display
Instant Prep for Powder Coating or Plating
If any dark heat tint forms on stainless steel or brass boutique racks, switch back to cleaning mode. A rapid pass over the complex corners vaporizes the oxidation instantly. The rack can immediately be sent to the powder coating booth or the electroplating bath, completely bypassing the manual sanding that flattens round tubes.
Laser Solutions for Fixture Manufacturers
Custom boutique clothing racks, intricate wire mesh displays, and custom POP signage frames.

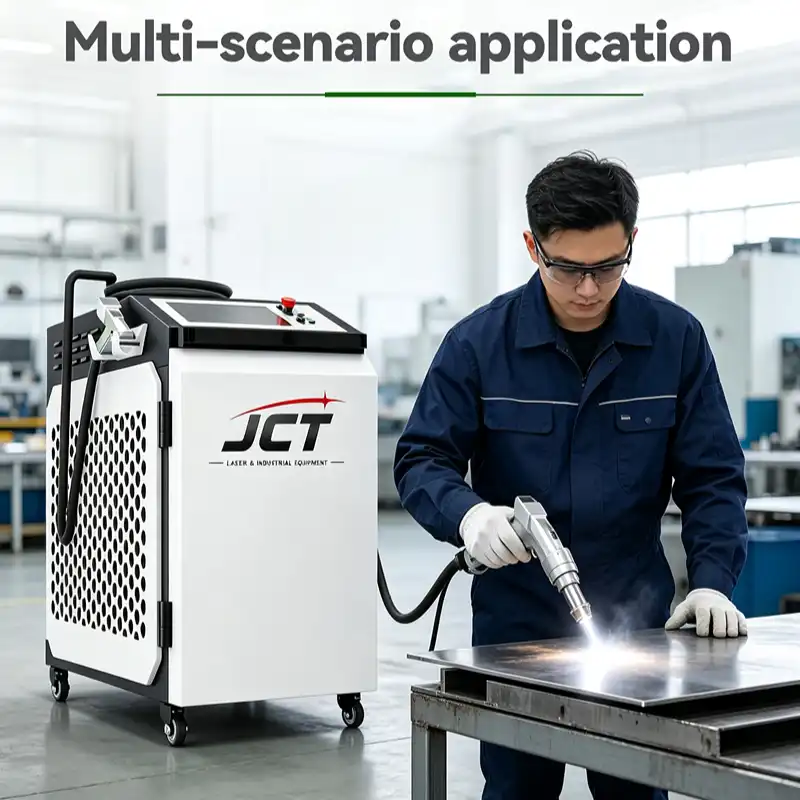

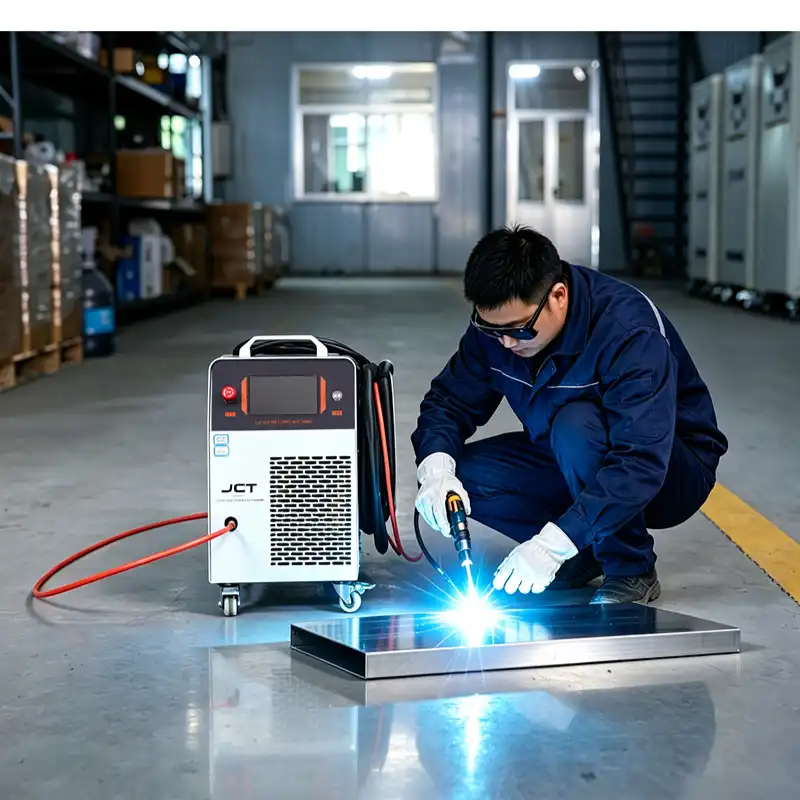

The ultimate agile tool for custom fixture shops. It allows operators to trace complex, multi-angled wire joints flawlessly without spatter. The instant transition to cleaning mode means delicate brass or stainless displays are prepped for premium plating instantly, eliminating the angle grinder bottleneck
Mass rollouts of modular supermarket shelving, standard slatwall brackets, and heavy-duty gondola units

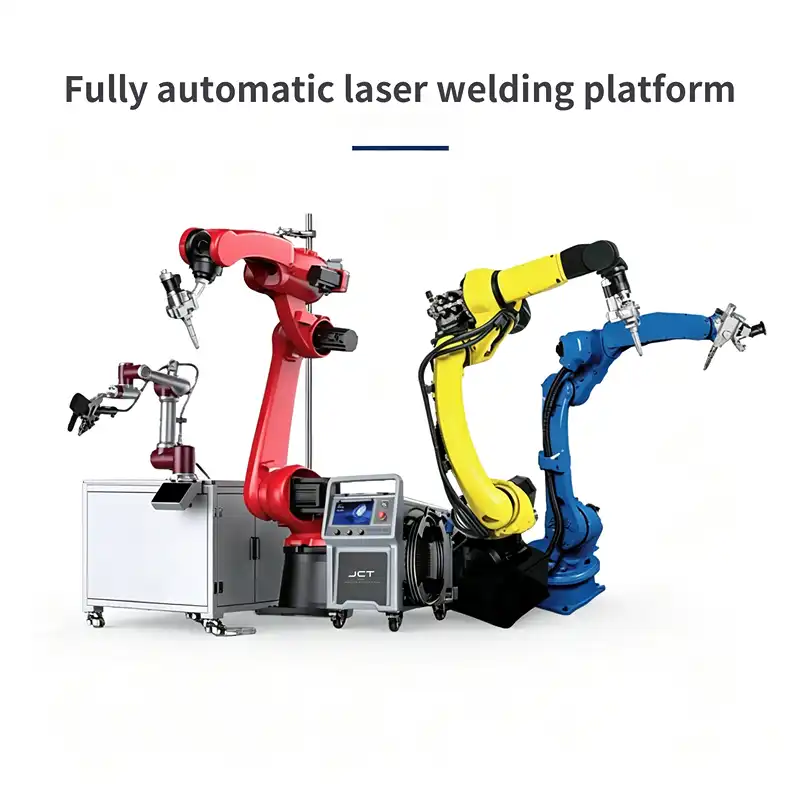

Integrates our continuous wave (CW) lasers with precision robotics. Delivers identical, spatter-free joints on tens of thousands of brackets 24/7. Eradicates manual inconsistencies, ensuring every shelf bracket locks into the gondola uprights perfectly without heat-induced warping.
Removing oxidation from intricate joints prior to electroplating, and refurbishing metal store fixtures
Uses nanosecond pulses to blast away oxidation from tight corners where grinding wheels cannot reach. It provides a chemically pure surface for luxury chrome or gold plating without scratching or dulling the original metal geometry.
WHO WE ARE?
Manufacturingthe Future of Laser Fabrication & Quality Control.
With over 10 years of industry expertise, we have grown into a trusted source for industrial laser welding & fabrication processing systems and precision environmental testing equipment.
At JCT, we not only build machines; but also build reliability.
From rapid metal fabrication to simulating extreme -40°C climates for your material testing,we ensure every set of equipment meets strict global standards.
We are committed to accelerating your R&D cycles and safeguarding your brand’s reputation with robust, factory-direct solutions.
SUCCESS CASES
Trusted by Manufacturers Worldwide
From streamlining sheet metal production lines to ensuring automotive sensor components pass rigorous high- and low-temperature and humidity environmental tests, our solutions are helping customers around the world boost production efficiency and improve quality. Learn how we help our customers overcome their toughest manufacturing and testing challenges.
Discover how an Australian manufacturer used our laser solutions to solve the problem of recruiting skilled welders and completely eliminate the need for post-welding secondary grinding
See how a Tier-2 supplier from North America used our temperature shock chamber to pass strict automotive certifications and secure a global contract
Learn how an electrical cabinet manufacturer from Dubai ,used our industrial laser welders to eliminate weld spatter and thermal distortion, then their electrical cabinet products achieved a 100% first-pass yield rate and successfully passed IP66 outdoor certification.
Learn how a Southeast Asian smart home brand used our environmental chamber to conduct accelerated aging tests, optimize PCB coatings, and significantly reduce their global return rate.
PREMIUM COMPONENTS ASSURANCE
Certified to Global Leading Standards
Reliability starts at the core. The key components that power our equipment—from the laser source to even the smallest electronic components—have all been certified to meet the world’s most stringent international standards.
GLOBAL PARTNERSHIPS
Trusted by Industry Leaders Worldwide
We take pride in powering the success of top-tier global manufacturers, research institutions, and industrial leaders. Our advanced laser and testing solutions are trusted worldwide to deliver uncompromising quality and peak performance.
FAQ
Q1: We weld 0.8mm tubes for clothing racks, and MIG causes constant burn-through. Will laser welding fix this?
Yes
MIG floods thin tubes with unmanageable heat. Fiber lasers focus intense energy into a microscopic point, melting and freezing the joint before the heat can spread. You can confidently weld ultra-thin 0.8mm or 0.6mm decorative tubing with zero risk of blowouts.
Q2: We waste hours grinding MIG spatter off display racks so customers don't cut their hands. Does laser spatter?
No.
Because laser welding uses focused light rather than a turbulent electrical arc, the molten pool is incredibly stable. The process is virtually 100% spatter-free. Your fixtures can go straight to the powder coating booth without other aggressive, time-consuming mechanical sanding or deburring.
Q3: Can a handheld laser easily weld intricate wire grids and wire mesh baskets?
Absolutely. This is where laser welding excels. The highly focused beam and lightweight nozzle allow the operator to pinpoint the exact intersection of the wires. It fuses them cleanly without melting the entire wire into an ugly, deformed blob.
Q4: Can we weld reflective materials like brass or aluminum for luxury boutique fixtures?
Yes. JCT continuous wave (CW) fiber lasers operate at a 1064nm wavelength. The high power density instantly overcomes the reflectivity threshold of brass, copper, and aluminum, forming a stable keyhole to weld luxury metals flawlessly without damaging the optics.
Q5: We chrome-plate our fixtures. Can the laser clean the welds without scratching the metal?
Yes. Mechanical grinding scratches the metal, especially under chrome plating. The JCT 3-in-1 handheld laser system in “Cleaning Mode” is photothermal. It vaporizes the dark heat tint and oils but reflects safely off the bare metal, leaving a pure, unscratched surface perfect for high-end electroplating.
Q6: Will the weld bead be flat enough that we don't need to grind it down?
On tight fit-ups using autogenous welding (no wire), the seam is nearly invisible and perfectly flush. If you use filler wire, the resulting bead is incredibly small, smooth, and uniform. For most retail applications, it is visually acceptable as-is, reducing polishing time by over 80%.
Q7: How difficult is it to train our assemblers to use a handheld laser?
Laser system automates the thermal management. The operator simply traces the joint. An entry-level assembler can learn to produce flawless, retail-grade joints in less than an hour.
Q8: What safety equipment is required in our display rack assembly area?
Operators must wear the provided wavelength-specific safety goggles and standard protective clothing.
Q9: What is the ROI timeline for a retail fixture manufacturer?
Most POP display and fixture manufacturers see a full ROI within 4 to 7 months.
This is achieved by welding up to 4x faster, completely eliminating the labor bottleneck of grinding spatter, wiping out scrap costs from burn-through on delicate parts, and achieving flawless coating adhesion.
