Handheld Laser Cleaning Machine & Laser Rust Removal Solutions
Eco-friendly, non-contact fiber laser cleaning solution for rapid removal of rust, paint, and oxides without chemical or abrasive damage.
- Eco-Friendly & Non-Contact
- Rapid Surface Preparation
- Versatile Industrial Application
Why Choose JCT laser cleaning ?
Laser cleaning machine is specifically designed to remove rust, paint, varnish, oil, epoxy resin, ring-shaped resin and oxide layers, without the need for any additional consumables or chemical solvents. Whether you require ship rust removal & cleaning steel structures rust removal & cleaning, pipework rust removal & cleaning, large steel components or tanks rust removal & cleaning, JCT’s Continuous Laser Cleaning Machine and Pulse-Type laser cleaner can provide 24/7 uninterrupted cleaning operation. By utilising an ergonomic laser rust removal gun, operators can eliminate the hazards posed by airborne particulates and significantly reduce labour costs in the automotive, marine, aerospace and metal fabrication industries
Our Products
1500W Continuous Laser Cleaning
Laser cleaning machine for metal delivers stable, continuous light energy and focus on rust removal and cleaning for metals, providing a cost-effective cleaning solution.

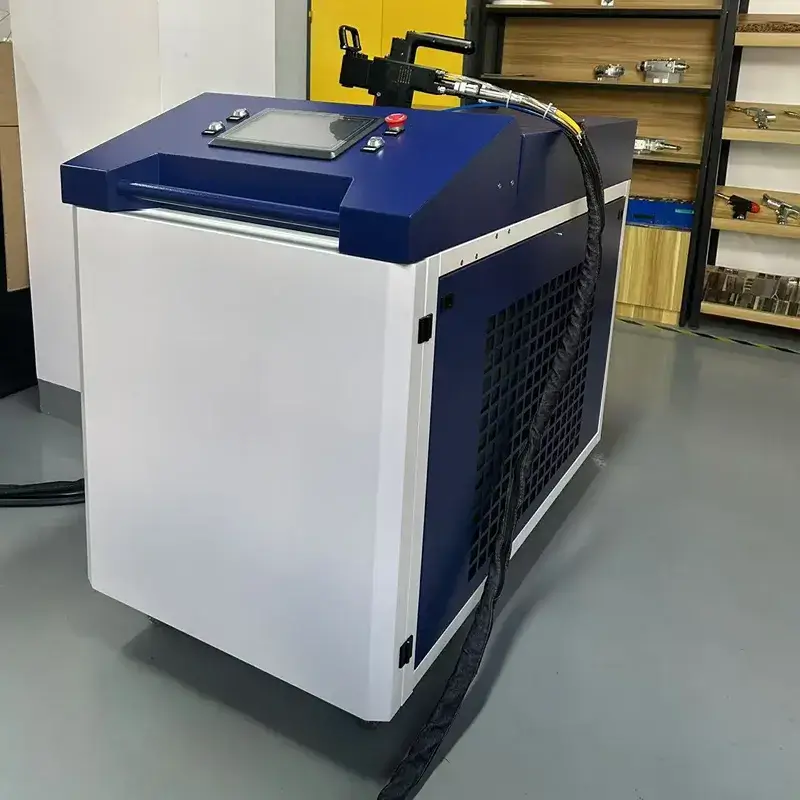

2000W Continuous Laser Cleaning
It efficiently vaporizes stubborn paint and severe oxidation layers, providing the metalworking industry with a cost-effective laser rust cleaner.

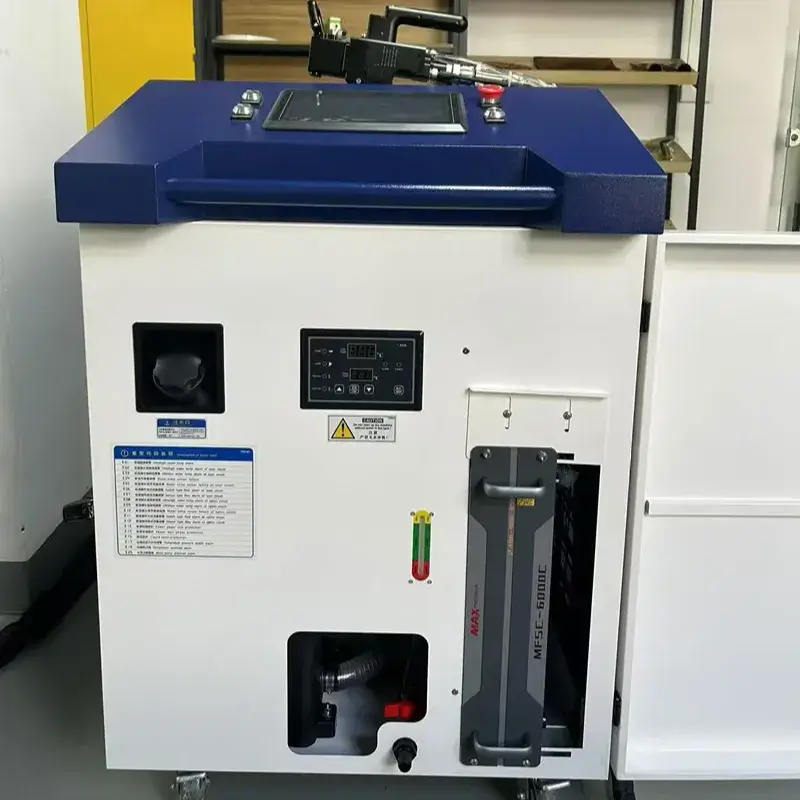

3000W Continuous Laser Cleaning
It delivers maximum continuous power for removing heavy, structural rust, making it a reliable laser rust cleaner for steel plants

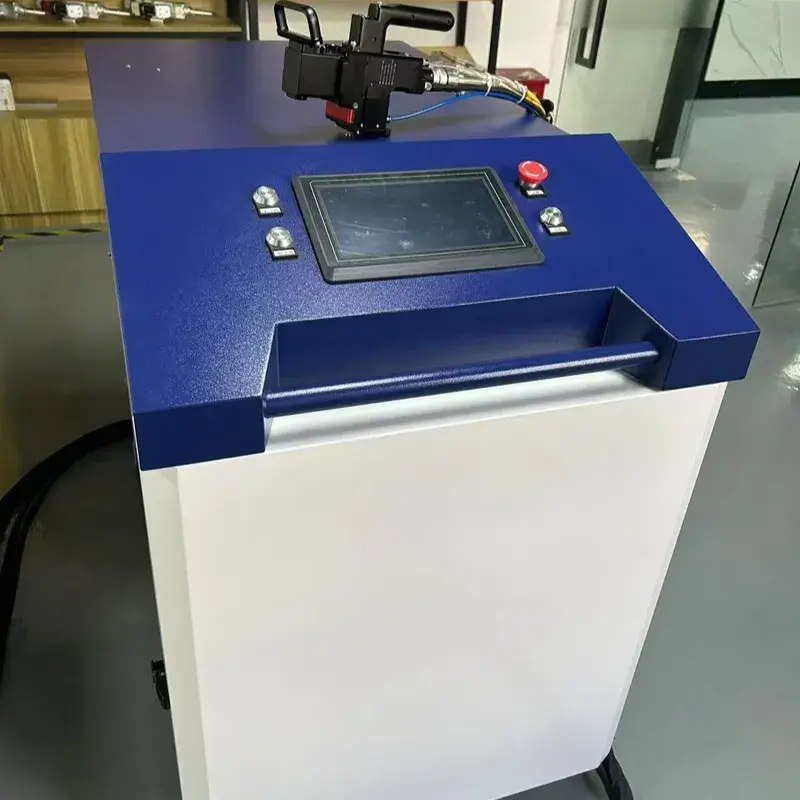

6000W Continuous Laser Cleaning
Using the JCT6000W high-power laser descaling machine, thick rolled scale and stubborn structural rust can be vaporized in a single pass.

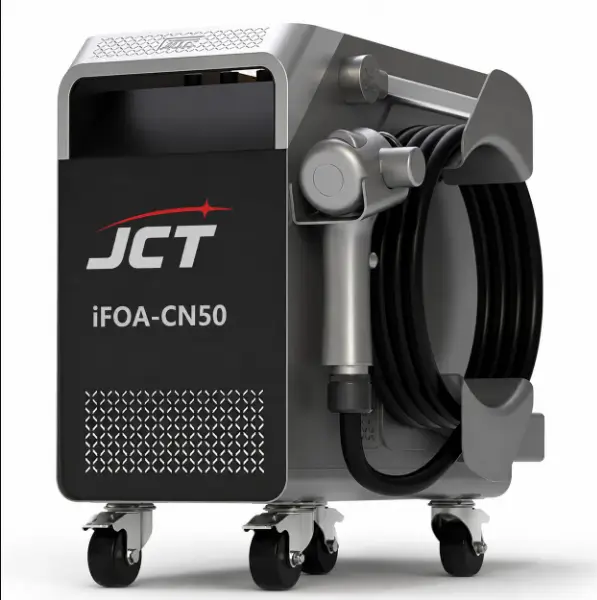

iFOA-CN50
air-cooled MOPA Pulsed Laser Cleaner
It can precisely vaporize aluminum oxide and thermosetting coatings, offering a lightweight laser cleaning machine for non-destructive surface restoration

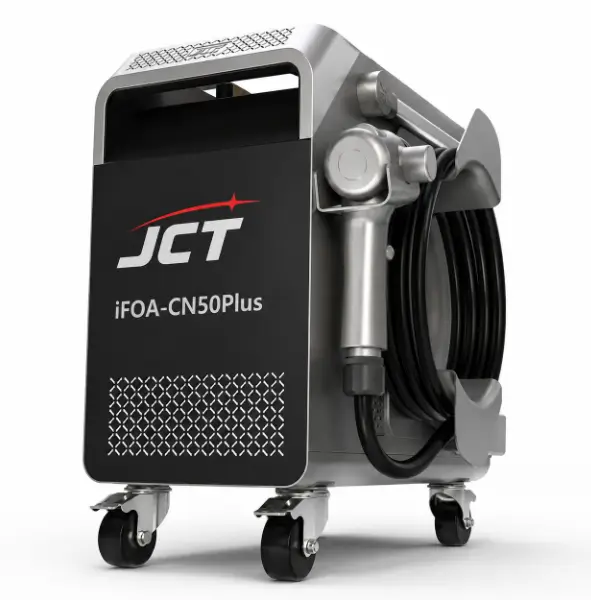

iFOA-CN50Plus
air-cooled MOPA Pulsed Laser Cleaner
It safely removes coatings from aircraft surface and grease from train axles; it is a powerful laser cleaning machine that does not damage the underlying substrate
Core Technology

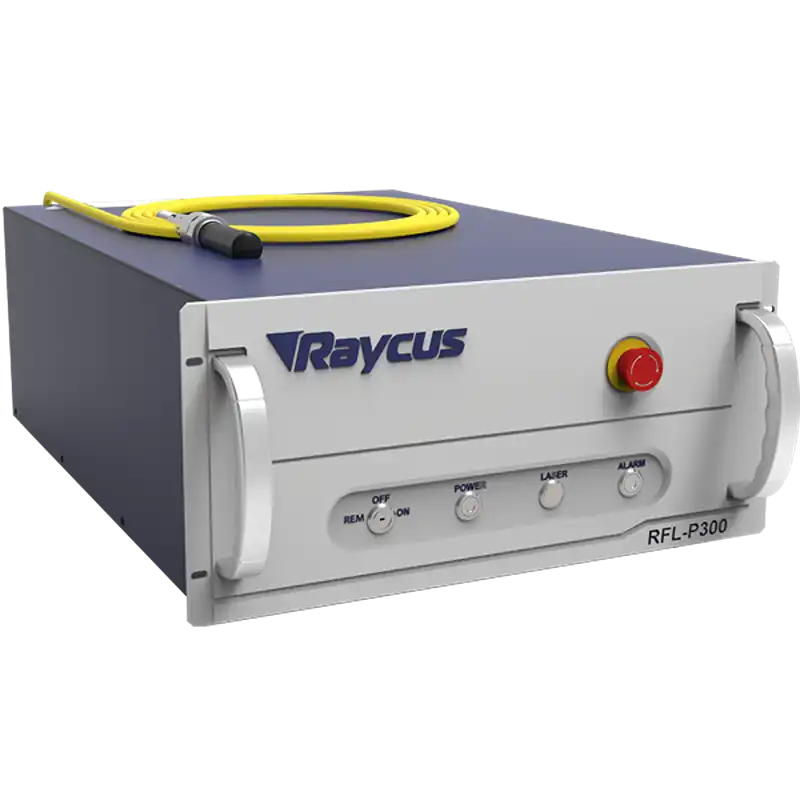

CW and MOPA Pulsed Lasers for Targeted Ablation
Each JCT laser cleaning machine is equipped with a laser souce to meet the customer’s specific needs. You can choose our high-power continuous-wave (CW) laser to quickly remove 5-millimeter-thick structural rust layers; or select our MOPA pulsed laser (with pulse widths adjustable between 13 and 500 nanoseconds) to perform precision cleaning without damaging the substrate. MOPA technology can perfectly remove paint layers from thermos flasks and aircraft skin coatings without melting the underlying 0.5-millimeter-thick aluminum substrate

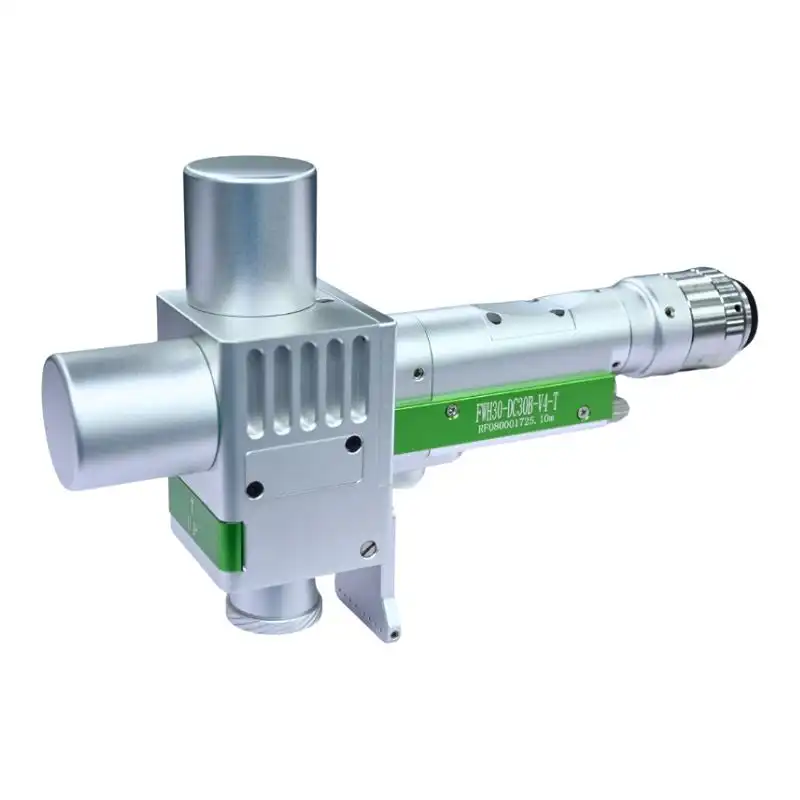

Intelligent double-pendulum handheld cleaning head
Designed specifically for demanding industrial environments, the JCT cleaner is equipped with an intelligent dual-oscillating handheld cleaning head featuring full-body water cooling to ensure long-term, stable operation. The device integrates real-time mobile app and PC-based monitoring capabilities, high-threshold optical components, and multiple safety locking mechanisms. Its ergonomic handle design ensures comfortable and effortless operation when efficiently removing rust, oxidation, and coatings at construction and equipment manufacturing sites.
Applications

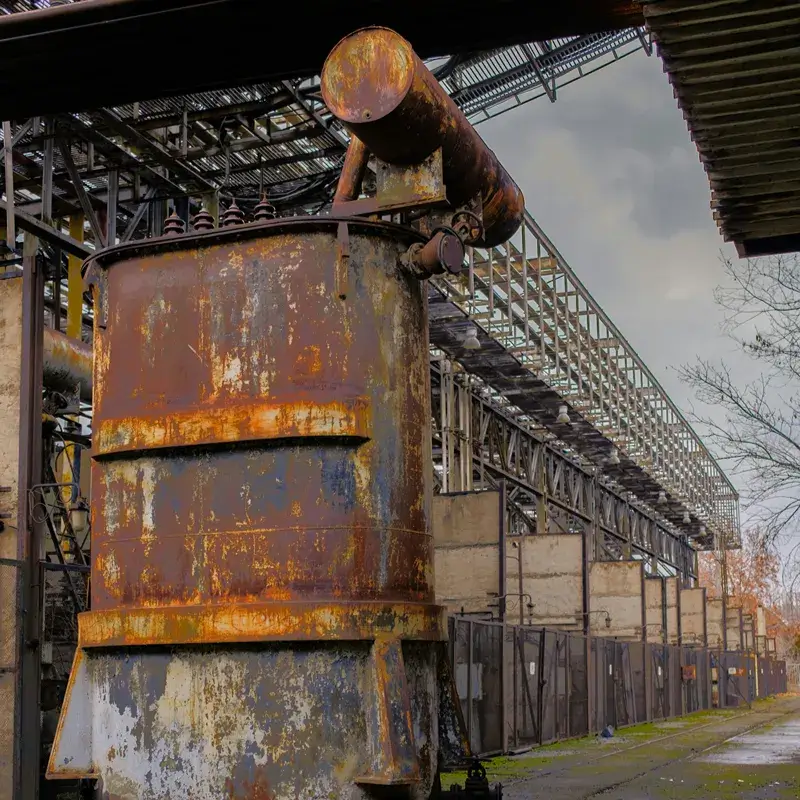

Heavy Steel Structures and Infrastructure
The Heavy Steel Structures & Infrastructure industry faces challenges when removing thick layers of iron oxide and mill scale from structural beams. Traditional sandblasting generates harmful silica dust and requires extensive secondary cleanup. JCT provides high-power, continuous-wave laser cleaning systems for these heavy-duty applications. For thick steel plates, our 6,000W continuous-wave laser delivers maximum continuous power, removing heavy structural rust in a single pass. This makes it a trusted laser rust removal system for steel mills, significantly reducing labor costs while providing the perfect surface preparation for epoxy recoating

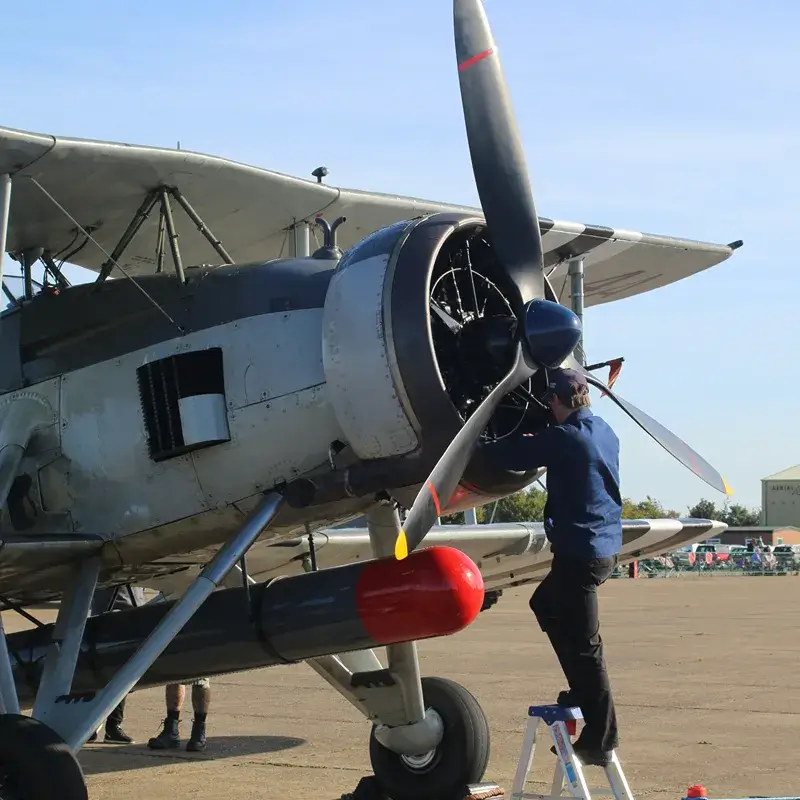

aviation & aerospace industry
Aviation & aerospace industry maintenance requires the precise removal of radar-absorbing coatings and aircraft paint from precision-engineered aluminum and titanium airframes. Mechanical stripping poses a significant risk of microcracks. JCT’s iFOA-CN50Plus air-cooled MOPA pulsed laser safely removes coatings from aircraft surfaces. By controlling pulse width and energy density, this powerful clean laser machine prevents damage to the underlying substrate, ensuring strict compliance with aviation safety standards while maintaining structural tolerances
automotive manufacturing industry
The automotive manufacturing industry faces the primary challenge of vehicle restoration, a process that requires the removal of stubborn electrophoretic coatings, body paint, and grease from engine blocks. Traditional chemical solvents are highly toxic and remove contaminants slowly. For severe oxidation layers on cast-iron engine blocks, the JCT 2000W continuous laser cleaning system can efficiently vaporize stubborn paint layers and severe oxidation layers. Meanwhile, for precision body panels on classic cars—which require higher standards and must avoid thermal deformation—our iFOA-CN50 MOPA pulsed system can precisely vaporize thermosetting coatings to achieve non-destructive surface restoration.

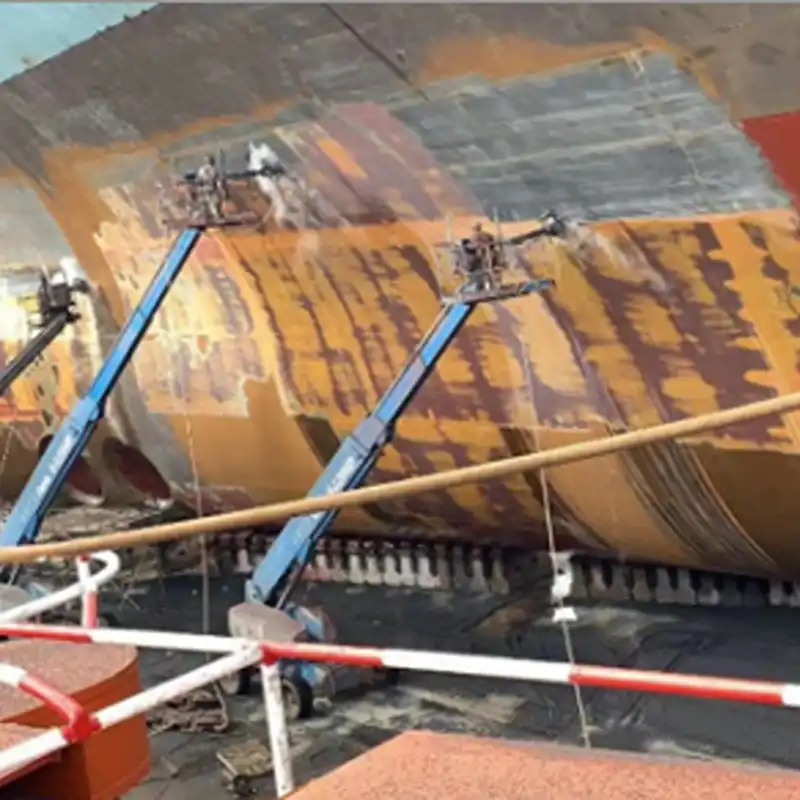

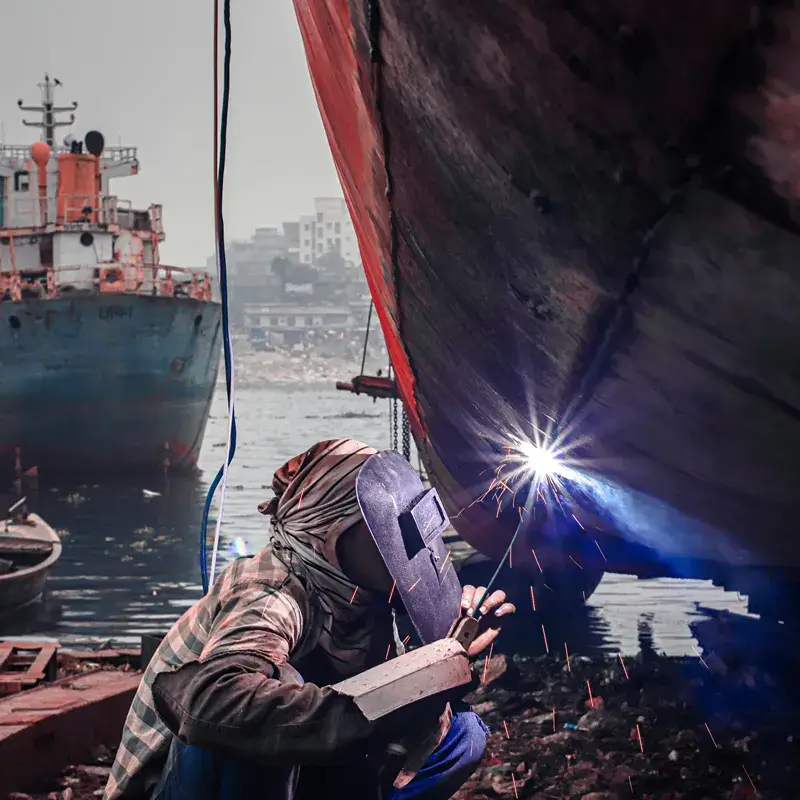

shipyard
For shipyards, heavy-duty anti-corrosion treatment and rust removal for ships and offshore structures are critical processes and significant challenges. The seawater environment can cause severe pitting corrosion and barnacle fouling on hulls and ballast tanks. Traditional dry-dock sandblasting is costly and harmful to the environment. JCT’s 2000W and 3000W continuous laser rust removal offer shipyards a cost-effective rust removal solution. This non-contact optical ablation technology rapidly removes large areas of antifouling paint, exposing the bare metal surface of the hull for immediate priming, without leaving abrasive particles in mechanical valves or bearings.
cleaning mold
Rubber vulcanization and plastic injection molding leave carbonized release agent residues on the cavities of precision molds.Mold how to clean has become a major concern. Traditional ultrasonic cleaning or dry ice blasting can erode the tolerances of critical parting lines over time. Using JCT’s iFOA-CN50 MOPA pulsed laser, operators can precisely vaporize chemical residues directly on the injection molding machine. Ultra-short nanosecond pulses ensure that optical energy is harmlessly reflected from the substrate. At the same time, this ultra-lightweight laser cleaning machine—weighing only 30 kg—enables non-destructive surface restoration of molds, thereby extending the service life of these expensive tools.

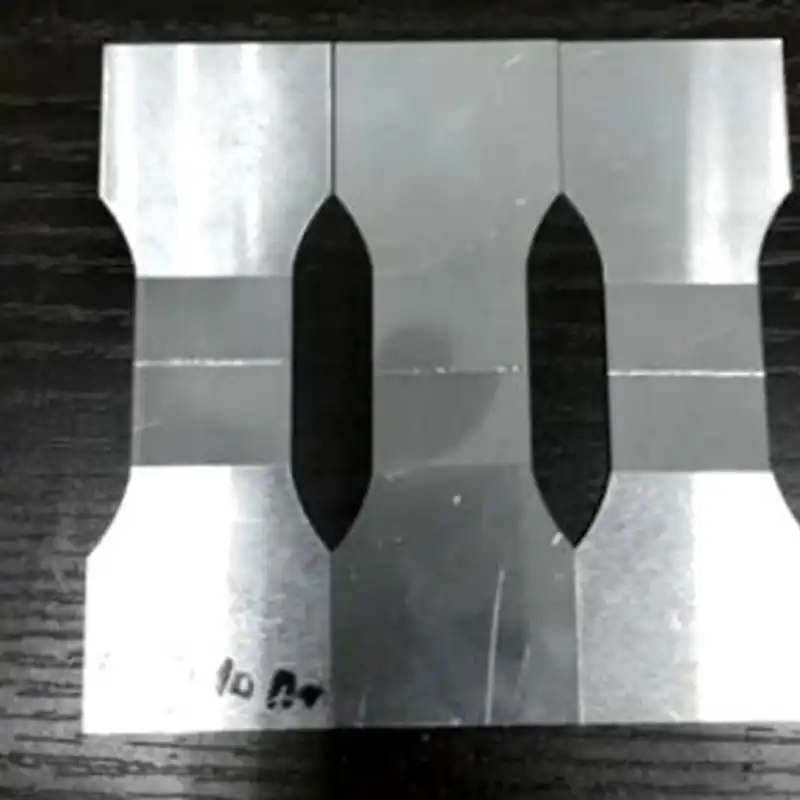

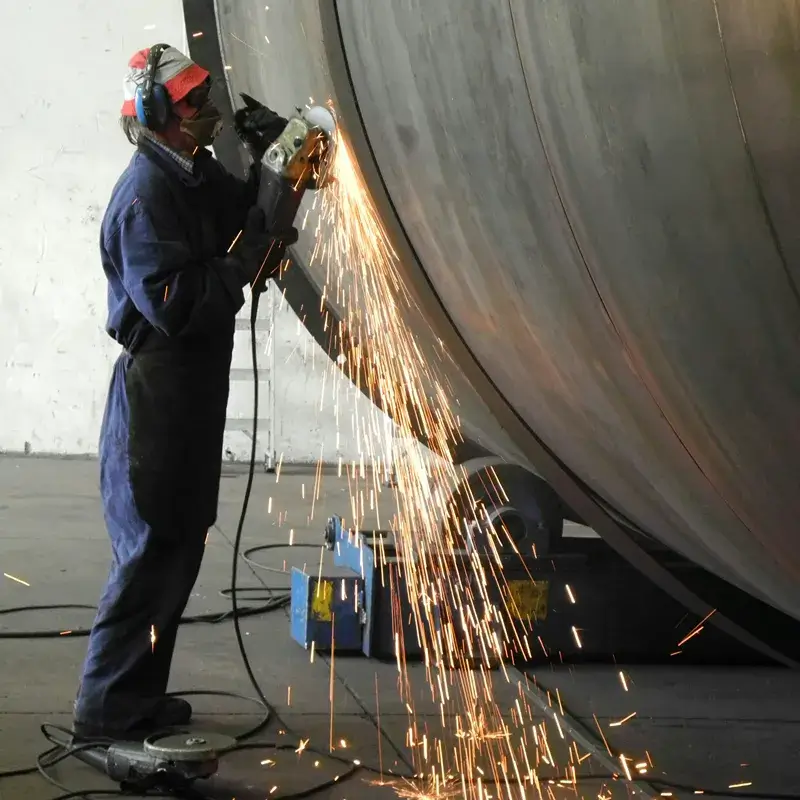

seam weld
High-quality metal processing always requires pre-welding pretreatment and seam weld cleaning. Before welding, cutting oils and oxide layers must be thoroughly removed to prevent porosity. After welding, stainless steel welds exhibit thermal discoloration (a phenomenon known as “sugarization”), which traditionally requires the use of toxic chemical pickling pastes to remove. This JCT 1500W continuous-wave laser rust cleaner delivers stable, continuous light energy and is specifically designed for rust removal and cleaning of weld beads. It instantly cleans joint grooves and restores the passivation layer on stainless steel welds, providing a cost-effective cleaning solution.

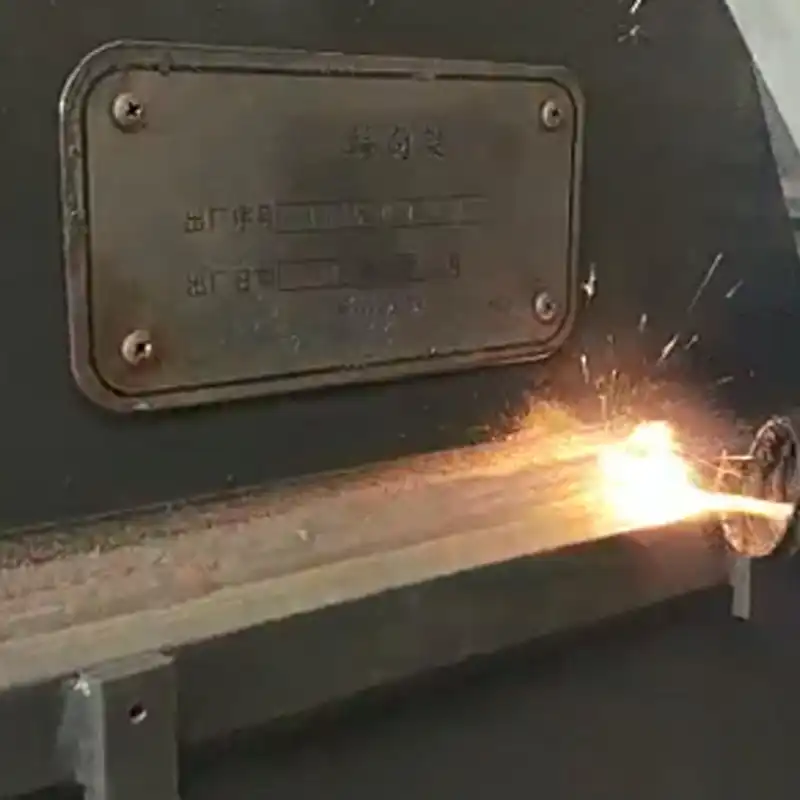

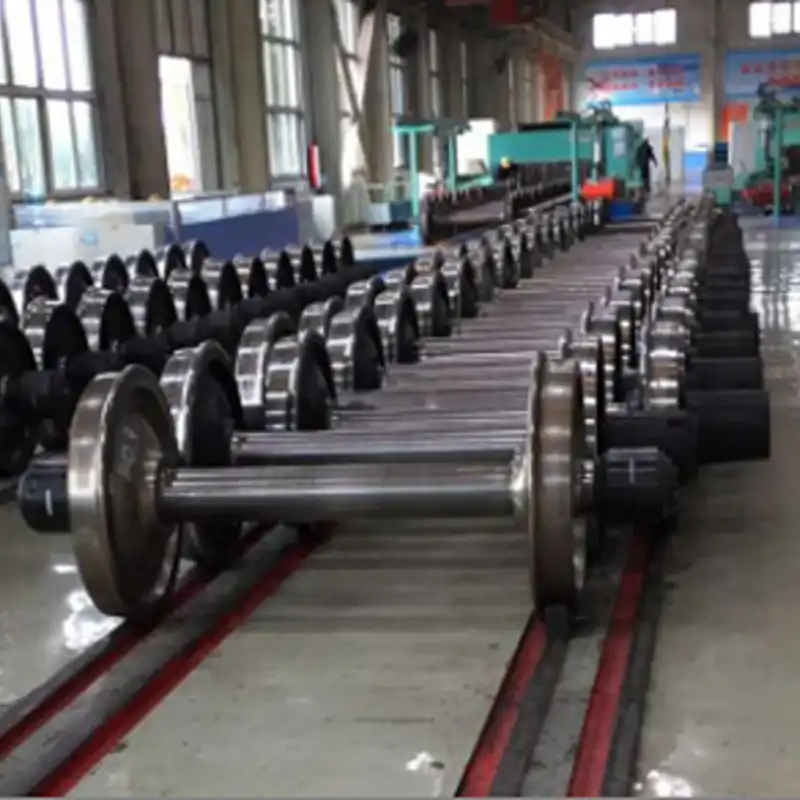

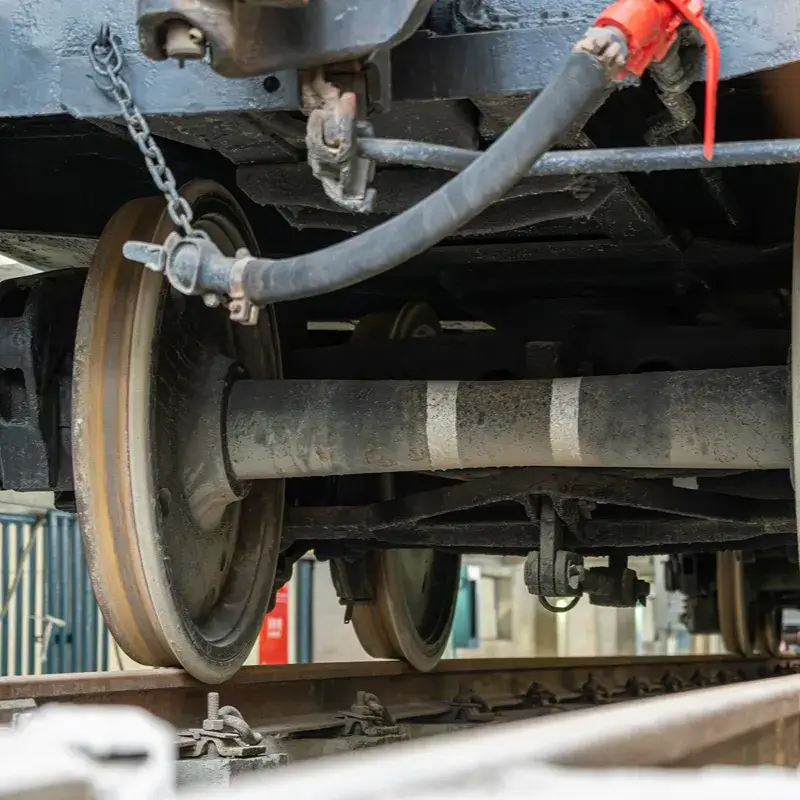

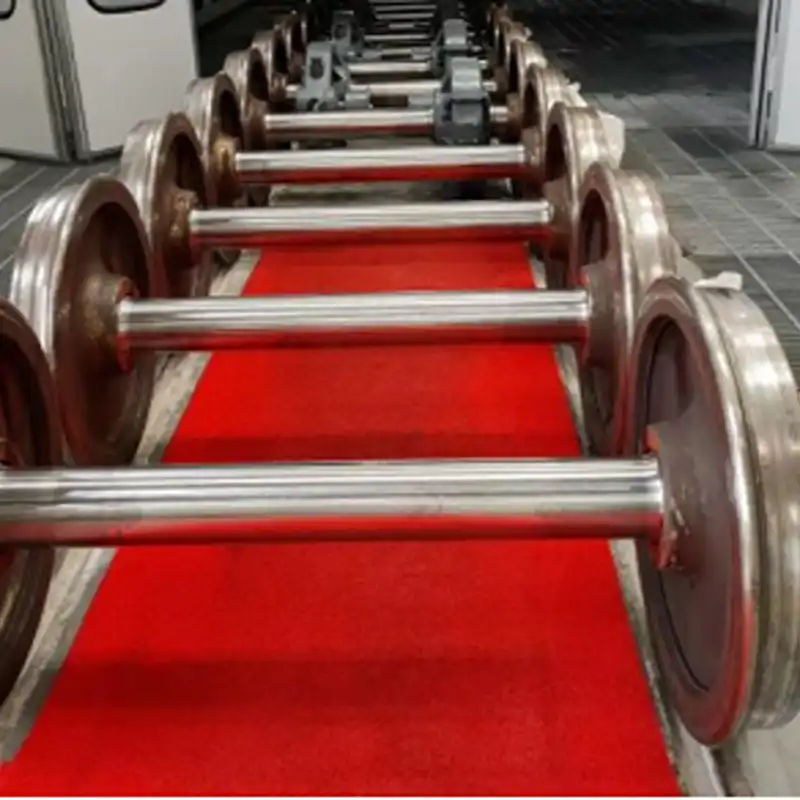

light rail transit
Maintenance work on high-speed light rail systems requires mandatory magnetic particle inspection of bogies and wheel sets, which first necessitates the thorough removal of hardened grease, brake dust and rust from the track surface. Traditional mechanical scraping may result in scratches on critical axle surfaces. JCT’s iFOA-CN50Plus MOPA pulsed laser safely removes grease from train axles. This is a pulsed laser cleaning machine with a power output of up to 2,000 W that does not damage the underlying substrate, preserving an optically clean, highly reflective forged steel surface—which is crucial for automatic ultrasonic crack detection sensors.
pipeline companies
For pipeline companies, every time they perform non-destructive testing (NDT) on oil pipelines, they must first remove thick polyurethane cladding, asphalt coatings, and localized corrosion zones. JCT’s 3,000W continuous-wave laser cleaner is specifically designed for these demanding environments. This 3,000W continuous-wave laser efficiently vaporizes stubborn paint and severe oxidation layers on cylindrical pipes, quickly exposing bare carbon steel joints and significantly improving rust removal efficiency.

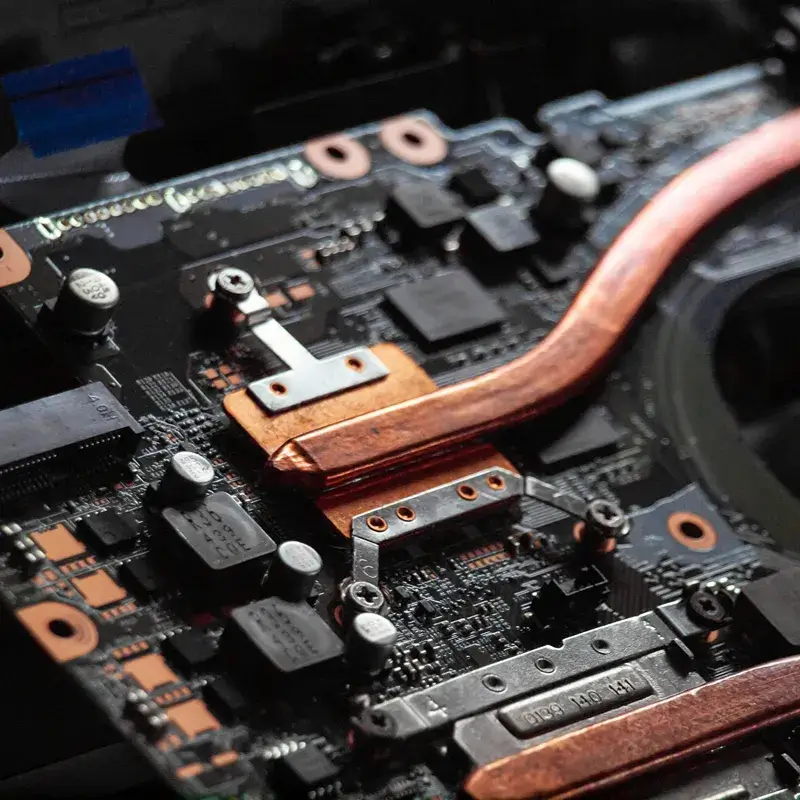

electronic industry supplies
Suppliers in the electronics industry often face challenges when removing protective coatings and surface oxide layers from precision printed circuit boards (PCBs), as this process must be performed without damaging the microscopic copper traces. Traditional methods, such as the use of chemical solvents, often corrode adjacent plastic components, while mechanical scraping can easily damage the fragile circuits. JCT’s iFOA-CN50 MOPA pulsed laser utilizes adjustable nanosecond pulses to selectively vaporize microscopic resin layers without generating residual heat. This provides the precision electronics industry with a highly controllable laser cleaning system that exposes pure copper pads, enabling zero-defect wire bonding and soldering.

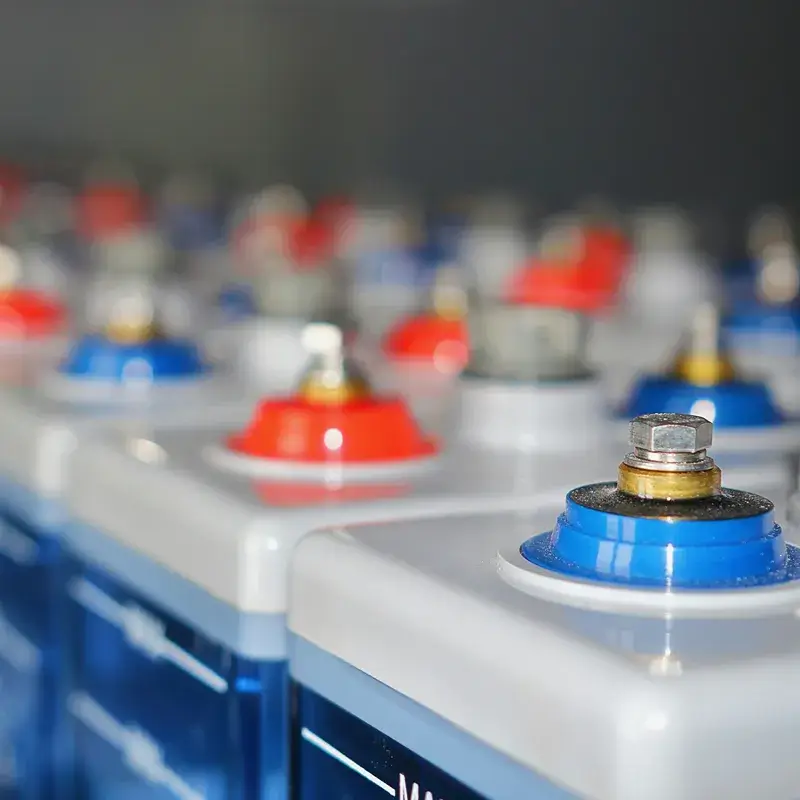

ev battery
During the assembly of electric vehicle battery, removing the dielectric insulation and aluminum oxide from copper busbars and battery tabs is critical to achieving low-resistance electrical connections. Traditional mechanical stripping or high-temperature continuous-wave laser processing often melts or pierces the fragile conductive foil, which is only 10 μm to 20 μm thick, resulting in the immediate scrapping of the battery cells. JCT’s iFOA-CN50Plus MOPA pulsed laser is capable of precisely ablating the insulating layer while reflecting off the underlying ultra-thin foil without causing damage. This provides ev battery with a high-precision laser cleaner that ensures perfect electrical conductivity and flawless ultrasonic weldability
Technical Specifications
| Category | Item & Unit | Continuous Laser Cleaning | Continuous Laser Cleaning | Continuous Laser Cleaning | Continuous Laser Cleaning | iFOA MOPA Pulsed Series | iFOA MOPA Pulsed Series |
|---|---|---|---|---|---|---|---|
| Items \ Model | 1500W | 2000W | 3000W | 6000W | iFOA-CN50 | iFOA-CN50Plus | |
| Laser Performance | Laser Power (W) | 1500W | 2000W | 3000W | 6000W | 1500W | 2000W |
| Laser Performance | Wavelength (nm) | 1070±10 | 1070±10 | 1070±10 | 1070±10 | 1070±10 | 1070±10 |
| Laser Performance | Operation Mode | Continuous Wave (CW) / Modulation | Continuous Wave (CW) / Modulation | Continuous Wave (CW) / Modulation | Continuous Wave (CW) / Modulation | MOPA Pulsed | MOPA Pulsed |
| Cooling System | Cooling Method | Water-Cooled | Water-Cooled | Water-Cooled | Water-Cooled | Air-Cooled | Air-Cooled |
| Electrical Parameters | Power Source | 1PH 220V 50/60Hz | 3PH 380V 50/60Hz | 3PH 380V 50/60Hz | 3PH 380V 50/60Hz | 1PH 220V 50/60Hz | 1PH 220V 50/60Hz |
| Electrical Parameters | Total Power (KW) | 1.5KW | 2KW | 3KW | 6KW | 1.5KW | 2KW |
| Welding Head & Optics | Gun Type | Intelligent double-pendulum handheld cleaning | Intelligent double-pendulum handheld cleaning | Intelligent double-pendulum handheld cleaning | Intelligent double-pendulum handheld cleaning | Integrated Handheld Cleaning Head | Integrated Handheld Cleaning Head |
| Welding Head & Optics | Fiber Cable Length (m) | 10m | 10m | 10m | 10m | 5m | 5m |
| Physical Dimensions | Dimension L (mm) | 912 | 912 | 987 | 1570 | 580 | 580 |
| Physical Dimensions | Dimension W (mm) | 422 | 422 | 470 | 830 | 262 | 262 |
| Physical Dimensions | Dimension H (mm) | 720 | 720 | 774 | 1550 | 552 | 552 |
| Physical Dimensions | Net Weight (KG) | 50KG | 50KG | 90KG | 320.5KG | 30KG | 30KG |

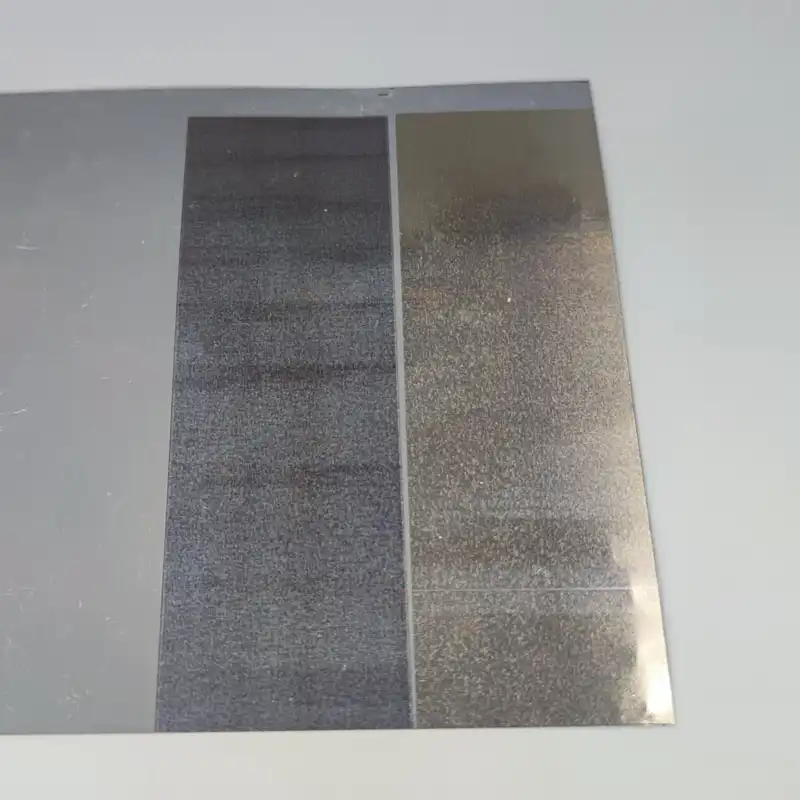

CLEANING Sample Showcase
Discover real-world cleaning results: effortless removal of rust, paint, and oil stains across various industrial metals.
OUR CORE ADVANTAGES
Why Choose Us
With over 10 years of rich industry experience, we are committed to served as a comprehensive technology manufacturer partner worldwide.We understand that your successful product relies on two core pillars: efficient manufacturing and uncompromising quality control.As a result, we offer a dual-core product line: first, laser and FAB solutions that ensure efficient manufacturing; and second, environmental test chambers for testing the performance of your products—all designed to address your specific industry issues and challenges.
Industry-Specific Customization
Whether you’re in the sheet metal or metalworking industries, or specialize in testing semiconductors and automotive electronics, our equipments all can be customized to meet your specific needs. We don’t just sell standard machines—we provide precise solutions that perfectly match your material and environmental requirements.
High-Efficiency Manufacturing
In the manufacturing process, time is your most valuable treasure. We offer fiber laser welding, cutting, and cleaning,etc solutions . All of them can provide deep penetration, distortion-free welding, precise cutting, and efficient cleaning for sheet metal and various types of metal processing.
Compliance and Quality Control
We ensure that your finished products can pass the most rigorous environmental testing. Our environmental test chambers help you meet strict global standards such as JEDEC, AEC-Q100, and key battery safety certifications, all these can shorten your R&D cycle and eliminating the risk of customer returns .
10+ Years & Global Support
With over a decade of technical expertise and a robust supply chain, we guarantee on-time delivery worldwide. More importantly, our engineering team will provide lifetime technical support, and we are committed to being your stable and reliable partner and friend for life.
PREMIUM COMPONENTS ASSURANCE
Certified to Global Leading Standards
Reliability starts at the core. The key components that power our equipment—from the laser source to even the smallest electronic components—have all been certified to meet the world’s most stringent international standards.
GLOBAL PARTNERSHIPS
Trusted by Industry Leaders Worldwide
We take pride in powering the success of top-tier global manufacturers, research institutions, and industrial leaders. Our advanced laser and testing solutions are trusted worldwide to deliver uncompromising quality and peak performance.
FAQ
Q1:What is laser cleaning？
Laser cleaning is an advanced, non-contact thermal ablation process.
Q2: How does laser cleaning work?
Laser cleaning machines focus high-energy light pulses or continuous beams onto contaminated surfaces. Contaminants—such as rust, paint, varnish and oil—immediately absorb the laser energy and vaporise (sublimate). As the underlying base metal reflects this wavelength of light and has a higher damage threshold, it remains unaffected.
Q3:How does laser rust removal work on metal surfaces?
The principle behind laser rust removal is based on the difference in laser absorption between iron oxide and the base material. When a focused laser beam scans across rusted carbon steel or cast iron, the iron oxide rapidly expands and is converted into gas or particulate debris. The underlying base metal rapidly dissipates the heat, leaving a clean, flawless surface that is ready for immediate priming.
Q4: How much does laser cleaning machine cost?
The price of a laser cleaning machine depends primarily on the laser power (1,500 W to 6,000 W continuous wave and 1,500 W–2,000 W MOPA pulsed) and the cooling architecture (standard water chiller vs. active refrigerant compressor), and automation options such as robotic integration interfaces and fibre length.
Q5: What is the difference between continuous laser cleaner and pulsed laser cleaner?
Continuous-wave laser cleaning machines (1,500 W–6,000 W) generate high continuous energy via a laser beam, enabling high-power cleaning with exceptional efficiency. As such, they are ideally suited for the rapid and thorough removal of rust and thick coatings from large steel structures, ships, pipelines, bridges, and other similar applications.
MOPA pulsed laser cleaning machines emit short nanosecond pulses to precisely control heat input, making them ideal for precision substrates with extremely strict thermal deformation requirements, such as precision molds, bearing components, thin aluminum sheets, aircraft parts, and the restoration of cultural artifacts
Q6: Can a clean laser machine remove paint, oil, and oxide layers without chemicals?
Yes.
Laser cleaning machines work by providing a 100% dry, chemical-free, non-contact cleaning method. They do not require the use of harmful solvents such as methylene chloride; instead, the high energy generated by the laser beam instantly removes grease, vulcanized rubber residues, heat discoloration (sugarization), and multiple layers of epoxy paint, thereby completely eliminating the costs associated with chemical waste disposal and the risks of environmental compliance inspections.
Q7:What consumables and maintenance does a laser rust removal machine require?
Laser cleaning machines do not require any abrasives or chemicals. The main consumable is the optical protective lens inside the spray gun head. This inexpensive component protects the internal mirrors from spatter and typically lasts 2 to 4 weeks. Maintenance is very simple; it only requires periodically checking the cooling water and cleaning the air filter.
Q8: Is it difficult for beginners to operate a handheld laser rust removal gun?
Modern laser rust removal guns are intuitive and easy to operate, requiring no special welding license. The device features a built-in touchscreen interface with dozens of preset material parameters. After just 1 to 2 hours of basic safety and operational training, operators can master the adjustment of scan speed, beam width, and power.
Q9: Does a laser rust removal machine require a carrier gas or compressed air?
Strictly speaking, a carrier gas is not required for standard rust removal operations. However, when using clean, dry compressed air for rust removal, it helps blow away vaporized particles and keeps the protective lens clean. For cleaning sensitive stainless steel or titanium materials, nitrogen can be used as a carrier gas to prevent re-oxidation from the atmosphere.
Q10:Can the JCT handheld laser cleaning machine be converted into a laser welding machine?
Yes.
The JCT continuous laser cleaning machine features a modular optical architecture. Simply replace the front-end scanning nozzle assembly and switch the operating mode on the touchscreen, and your laser cleaning machine can instantly be transformed into a professional handheld fiber laser welding and cutting machine, thereby maximizing the equipment’s versatility and enhancing your return on investment.
