What Can You Achieve with JCT High-Temp Chambers?
Our high-temp chambers execute strict industrial testing protocols. Using them, you can bake trapped moisture out of PCBs to prevent delamination during reflow soldering, sustain rubber gaskets at 200℃ to test long-term embrittlement, or push structural alloys to 700℃ to find their absolute physical failure points. We provide the exact thermal data you need to eliminate design flaws before mass production
Accelerated Thermal Aging
What it does: Sustaining rubber gaskets, plastic housings, and cable insulation at a constant 200℃ or 300℃ for hundreds of hours, replicating years of severe operational heat in a matter of days.
The Benefit: Pinpoints the exact timeline of material embrittlement and elasticity loss. This hard data allows you to accurately calculate MTBF (Mean Time Between Failures) and replace weak materials before they cause cracked seals and leaks in the field.
Moisture Bake-Out & Stress Relief
What it does: Using precise thermal profiling to slowly and safely extract trapped moisture from hygroscopic PCBs, microchips, and epoxies right before they enter the high-heat assembly line.
The Benefit: Completely eliminates the “popcorning” effect—where trapped moisture rapidly vaporizes, expands, and shatters the board during reflow soldering. This directly prevents board delamination and drastically reduces your manufacturing defect rate.
Thermal Destruction & Phase Change
What it does: Subjects advanced composites, ceramics, and structural alloys to extreme 500℃ or 700℃ environments to force severe oxidation, structural phase changes, and ultimate material breakdown.
The Benefit: Identifies the absolute physical failure point of your components. This guarantees that critical parts—as like automotive engine shields or aerospace housings—will not melt, warp, or fail under peak operational thermal loads
Our Products
High-temperature chembers

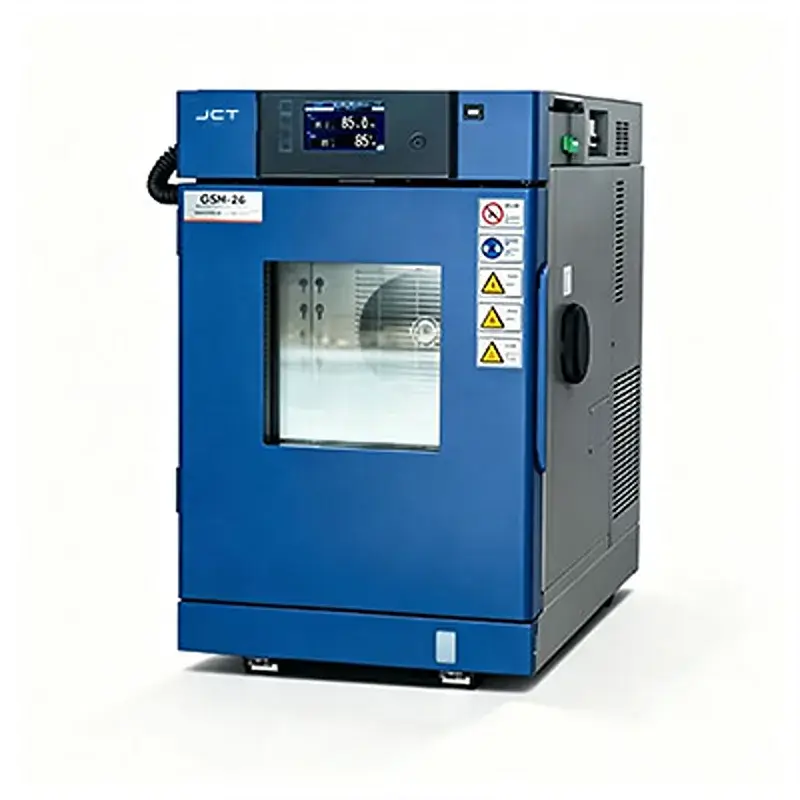

JCT-(M)HT-20 Industrial High-Temperature Chamber (216L)
Featuring a 216L chamber volume and precise microcomputer PID control, this model is engineered for strict thermal aging and durability testing across electronic and automotive components.

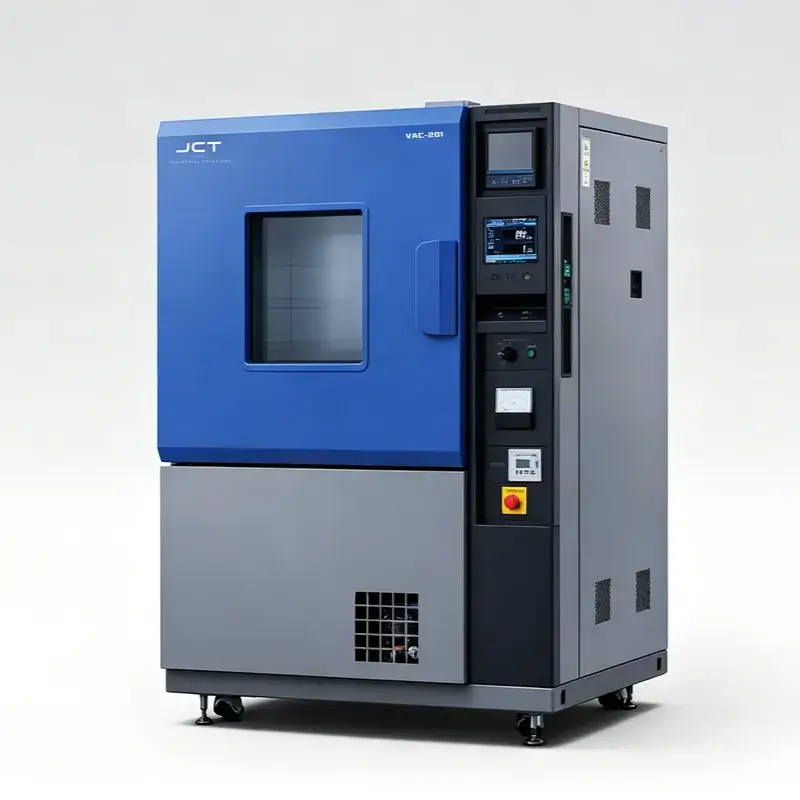

JCT-(M)HT- 30 High-Temperature Chamber (512L)
Offering a spacious 512L internal volume and advanced horizontal airflow design, it ensures exceptional temperature uniformity and reliability for heavy industrial testing loads.

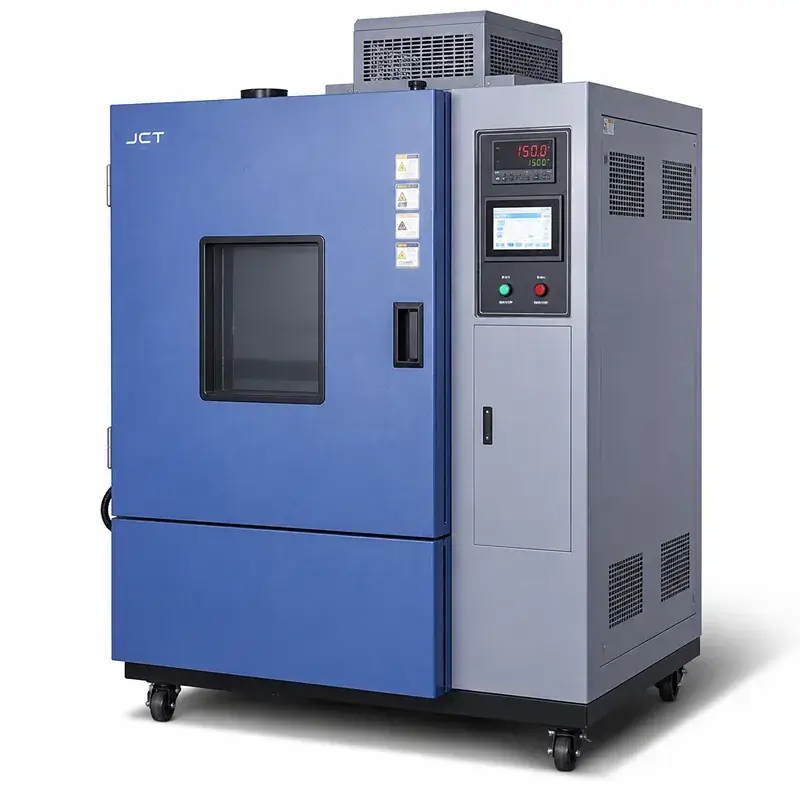

JCT-(M)HT-40 Large-Scale High-Temperature Chamber (1000L)
Our largest 1000L testing chamber designed for massive components and strict batch testing, supporting temperatures up to 300℃ with multiple safety protections and USB data export.
Applications

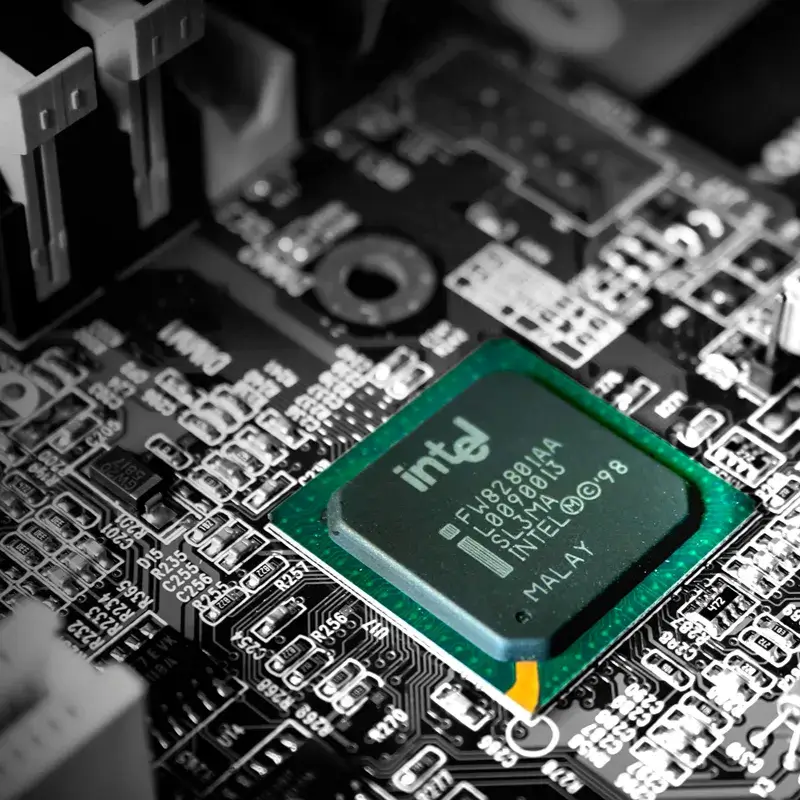

pcb fabrication manufacturer
Epoxies and microchips naturally absorb atmospheric moisture. If this moisture is not removed before the high-heat reflow soldering process, it vaporizes instantly, causing the board to crack and delaminate (the “popcorning” effect). Using our HT series high temperature chamebers for a slow, controlled 150℃ moisture bake-out completely eliminates this risk, drastically improving your SMT assembly yield rates

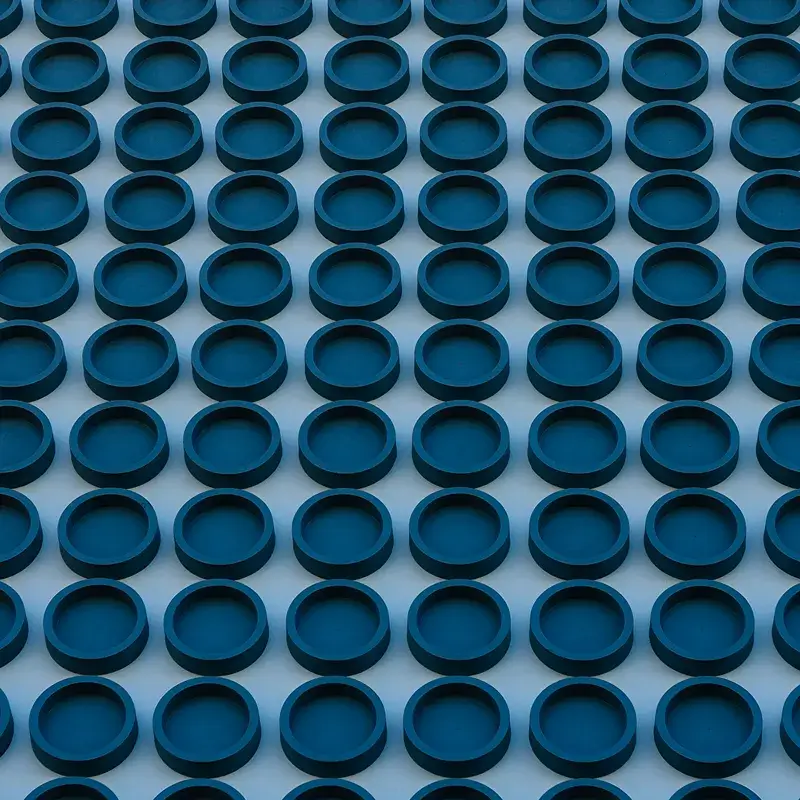

rubber seal
Hydraulic fluids and industrial pressures destroy weak seals. By sustaining rubber seals and gaskets hoses at a constant 200℃ for 72+ hours, our JCT high temperature chambers accelerate the natural thermal aging process. This hard data allows you to accurately pinpoint the timeline of material embrittlement and elasticity loss, ensuring your seals will never leak under prolonged industrial stress.

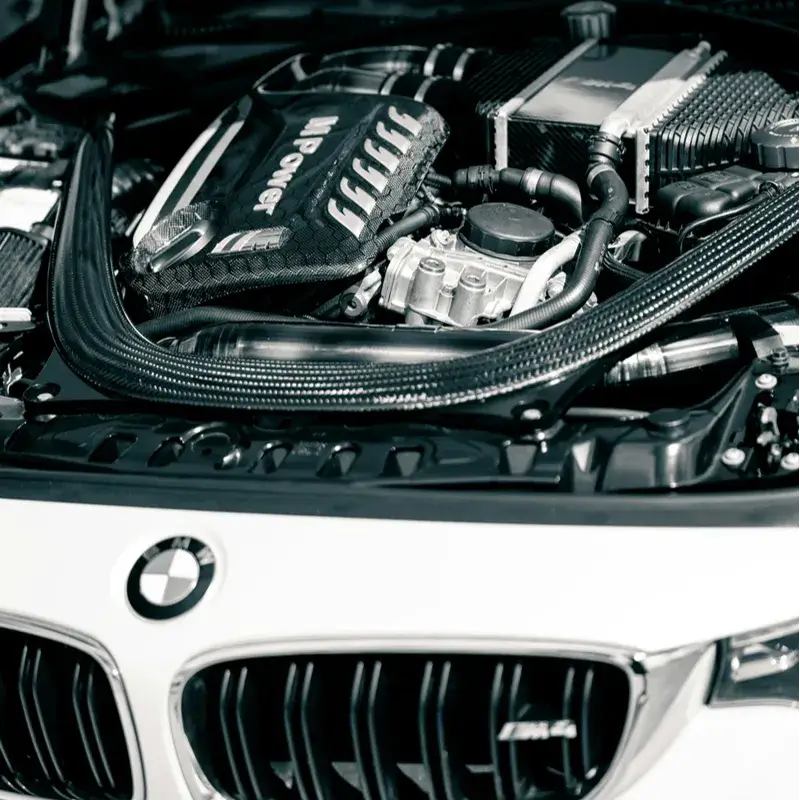

automotive industry
The area surrounding an engine exhaust manifold experiences extreme radiant heat. Automotive plastics, wire harnesses, and sensors must be tested at 300℃ in our JCT-MHT series to validate their endurance. We help you verify that critical under-hood components will not melt, warp, or catch fire during peak engine loads in heavy traffic conditions.
aerospace components manufacturing
Advanced carbon fibers and heat-shield resins face intense aerodynamic friction at high altitudes. Pushing these materials into our JCT 500℃ UHT chamber series chambers exposes critical structural vulnerabilities.For aerospace components manufactures,please Verify that your aerospace composites retain their tensile strength and do not undergo dangerous physical phase transitions when exposed to extreme atmospheric friction

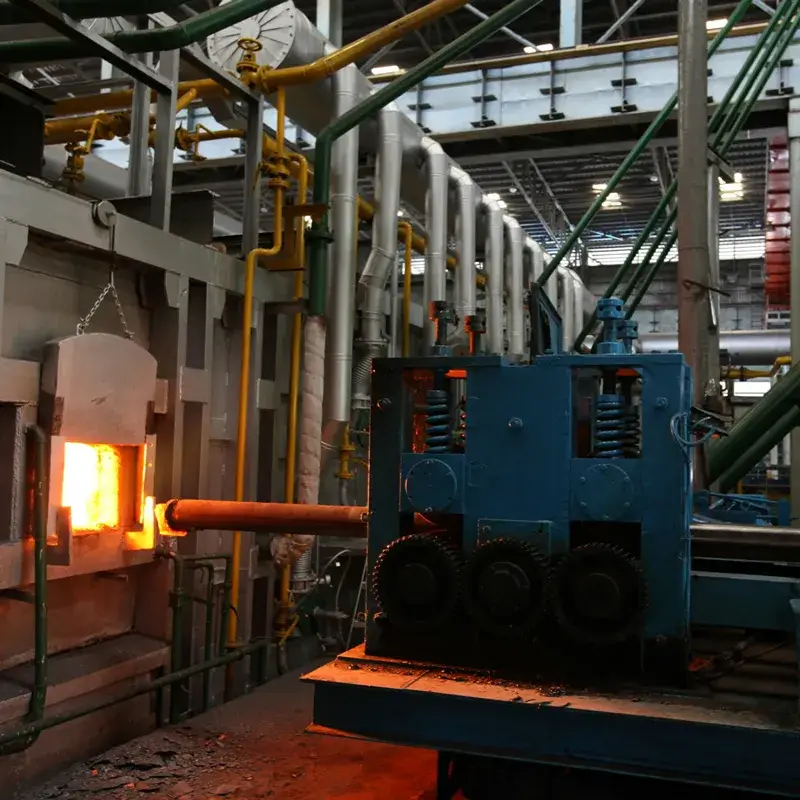

casting foundry
New metal alloys must be pushed to their absolute thermal destruction limits, before being casted into engine blocks or structural beams. Our JCT- UUHT series safely generates 700℃ environments to analyze surface oxidation layers and decarbonization rates. This provides metallurgists with the exact safety thresholds ,which are needed to prevent catastrophic mechanical failures
ev battery
EV safety relies entirely on the internal EV Battery Separator Films . If this film shrinks under heat, the anode and cathode touch, resulting an instant thermal runaway and explosion. We heat these lithium-ion separator films to 150℃-200℃ by our JCT high temperature chambers to precisely measure their heat shrinkage rate. Passing this test is non-negotiable for electric vehicle battery certification and ultimate passenger safety.
Technical Specifications
High-Temperature Chamber Technical Specifications
| Technical Specifications | JCT-(M)HT-20 | JCT-(M)HT-30 | JCT-(M)HT-40 |
|---|---|---|---|
| Chamber Volume | 216L | 512L | 1000L |
| Internal Dimensions | 600 × 600 × 600 mm | 800 × 800 × 800 mm | 1000 × 1000 × 1000 mm |
| External Dimensions | 850 × 850 × 1350 mm | 1050 × 1050 × 1650 mm | 1250 × 1250 × 1900 mm |
| Temperature Range | HT Series: (RT + 20℃) ～ +200℃ MHT Series: (RT + 20℃) ～ +300℃ |
HT Series: (RT + 20℃) ～ +200℃ MHT Series: (RT + 20℃) ～ +300℃ |
|
| Temp. Fluctuation | ±0.5 ℃ | ±0.5 ℃ | ±0.5 ℃ |
| Temp. Uniformity | ±2.0 ℃ (Tested at 200℃) | ||
| Heat-up Time | RT ～ 200℃ ≤ 40 min | RT ～ 200℃ ≤ 45 min | RT ～ 200℃ ≤ 50 min |
| Interior Material | 1.2mm thick SUS304 premium mirror/brushed stainless steel | ||
| Exterior Material | 1.2mm thick cold-rolled steel plate with anti-rust treatment and electrostatic powder coating (scratch-resistant). | ||
| Thermal Insulation | High-density aluminum silicate rock wool / high-temperature glass fiber wool | ||
| Air Circulation System | Horizontal Airflow Design: High-temperature extended-shaft motor + stainless steel multi-blade centrifugal fan wheel | ||
| Heating System | Nickel-Chromium (Ni-Cr) alloy finned stainless steel high-speed electric heater | ||
| Control System | LCD color touch screen, intelligent microcomputer PID control, supports programmable thermal profiles and USB data export. | ||
| Exhaust & Venting | Top-mounted standard stainless steel adjustable exhaust port | ||
| Shelves & Load Capacity | Standard 2 pcs SUS304 punched/mesh shelves (height adjustable). Load capacity ≥ 20 KG per layer | ||
| Safety Devices | Independent adjustable over-temp protector, motor overload protection, heater short-circuit protection, earth leakage circuit breaker, fuse-free switch. | ||
| Standard Power Supply | AC 220V 1Φ 50Hz (HT Model) AC 380V 3Φ 50Hz (MHT Model) |
AC 380V 3Φ 50Hz | AC 380V 3Φ 50Hz |
| Approx. Total Power | ~ 3.5 KW / 4.5 KW | ~ 6.0 KW / 7.5 KW | ~ 9.0 KW / 12.0 KW |
OUR CORE ADVANTAGES
Why Choose Us
With over 10 years of rich industry experience, we are committed to served as a comprehensive technology manufacturer partner worldwide.We understand that your successful product relies on two core pillars: efficient manufacturing and uncompromising quality control.As a result, we offer a dual-core product line: first, laser and FAB solutions that ensure efficient manufacturing; and second, environmental test chambers for testing the performance of your products—all designed to address your specific industry issues and challenges.
Industry-Specific Customization
Whether you’re in the sheet metal or metalworking industries, or specialize in testing semiconductors and automotive electronics, our equipments all can be customized to meet your specific needs. We don’t just sell standard machines—we provide precise solutions that perfectly match your material and environmental requirements.
High-Efficiency Manufacturing
In the manufacturing process, time is your most valuable treasure. We offer fiber laser welding, cutting, and cleaning,etc solutions . All of them can provide deep penetration, distortion-free welding, precise cutting, and efficient cleaning for sheet metal and various types of metal processing.
Compliance and Quality Control
We ensure that your finished products can pass the most rigorous environmental testing. Our environmental test chambers help you meet strict global standards such as JEDEC, AEC-Q100, and key battery safety certifications, all these can shorten your R&D cycle and eliminating the risk of customer returns .
10+ Years & Global Support
With over a decade of technical expertise and a robust supply chain, we guarantee on-time delivery worldwide. More importantly, our engineering team will provide lifetime technical support, and we are committed to being your stable and reliable partner and friend for life.
PREMIUM COMPONENTS ASSURANCE
Certified to Global Leading Standards
Reliability starts at the core. The key components that power our equipment—from the laser source to even the smallest electronic components—have all been certified to meet the world’s most stringent international standards.
GLOBAL PARTNERSHIPS
Trusted by Industry Leaders Worldwide
We take pride in powering the success of top-tier global manufacturers, research institutions, and industrial leaders. Our advanced laser and testing solutions are trusted worldwide to deliver uncompromising quality and peak performance.
FAQ
Q1: What is the difference between a standard industrial oven and a high-temperature test chamber?
Standard ovens lack precision control and use weak airflow, leading to massive temperature imbalances (often >10℃ variation).
By Our high-temperature chambers ,you can utilize precision PID controllers and forced horizontal airflow to guarantee a strict ±2.0℃ uniformity, providing the highly repeatable data required for GB, IEC, and MIL certifications.
Q2: How do I choose between the HT, MHT, UHT, and UUHT series?
Choose JCT-HT test chamber(200℃) for basic plastic and rubber aging;
JCT-MHT test chamber (300℃) for automotive and under-hood electronics endurance;
JCT-UHT test chamber (500℃) for aerospace phase-changes;
JCT-UUHT test chamber (700℃) for metallurgy oxidation and thermal destruction limits.
Q3: How do I determine the right chamber volume (Liters) for my payload?
Never pack a test chamber 100% full. To make sure optimal airflow and temperature uniformity, your test specimens should only occupy 30% to 50% of the internal volume. If you have large batches, we highly recommend upgrading from our 216L models to our 512L or 1000L heavy-duty systems.
Q4: Do you provide data export functions for quality audits?
Yes. The smart controllers allow you to export real-time temperature logs and thermal curves directly via USB or RS485 connections. This will supply you instant, traceable testing reports ready for the third-party quality audits.
Q5: How do I get a custom quote, and what is the lead time?
Just Simply fill out the form below with your required max temperature, internal dimensions, and estimated payload weight. Our engineers will provide a technical proposal and quote within 12 hours. Highly customized chambers typically take 3 to 4 weeks to manufacture and ship.
