JCT Heavy-Duty Water-Cooled Handheld Laser Welders
Explore JCT 1500W, 2000W, and 3000W water-cooled handheld laser welders. Featuring Raycus laser sources, Hanli chillers, and up to 5-in-1 multi-functional metal processing
water-Cooled Series
1500W Water-Cooled Laser Welder
Integreted three core components—the Raycus laser, the Hanli industrial chiller, the welding head—into a powerful 1,500W laser welding machine, this system provides an outstanding entry-level solution for the continuous production of thin metal sheets ranging from 1 to 3 mm in thickness.
2000W Water-Cooled Laser Welder
Raycus lasers, Hanli industrial-grade chiller, and welding heads—ensuring the reliability of JCT water-cooled welding machines and delivering flawless, spatter-free welds on metal plates ranging from 3 to 5 millimeters in thickness.
3000W Water-Cooled Laser Welder
Equipped with a built-in 3000W industrial-grade chiller, Raycus laser, intelligent welding head—it supports welding, cutting, and cleaning functions, and ensures stable continuous welding of 8–10 mm carbon steel plates
Compare our high-performance refrigerant laser welding series to find
the exact configuration for your workshop output
| Specification / Model | Water-Cooled 1500W | Water-Cooled 2000W | Water-Cooled 3000W |
|---|---|---|---|
| Laser Power (W) | 1500W | 2000W | 3000W |
| Wavelength (nm) | 1070±10 | 1070±10 | 1070±10 |
| Operation Mode | Continuous & Spot Welding | Continuous & Spot Welding | Continuous & Spot Welding |
| Stainless Steel Capacity | 5mm | 6mm | 8mm |
| Carbon Steel Capacity | 5mm | 6mm[cite: 10] | 8mm[cite: 10] |
| Aluminum & Galvanized | Al: 5mm | Galv: 4mm[cite: 10] | Al: 6mm | Galv: 5mm[cite: 10] | Al: 8mm | Galv: 7mm[cite: 10] |
| Cooling System | Water-Cooled (Hanli Chiller)[cite: 10] | Water-Cooled (Hanli Chiller)[cite: 10] | Water-Cooled (Hanli Chiller)[cite: 10] |
| Operating Temp (°C) | -10° to 45°[cite: 10] | -10° to 45°[cite: 10] | -10° to 45°[cite: 10] |
| Power Source & Power | 1PH 220V (6KW)[cite: 10] | 3PH 380V (8KW)[cite: 10] | 3PH 380V (12KW)[cite: 10] |
| Welding Head Type | Smart Single-Pendulum[cite: 10] | Smart Dual-Pendulum[cite: 10] | Smart Dual-Pendulum[cite: 10] |
| Fiber Cable & Wire Feed | 10m | Single-Drive (0.8-1.6mm) | 10m | Dual-Drive (1.0-2.0mm)[cite: 11] | 10m | Dual-Drive (1.0-2.0mm)[cite: 11] |
| Dimensions (L×W×H mm) | 1100 × 500 × 900[cite: 11] | 1100 × 500 × 900[cite: 11] | 1250 × 700 × 1100[cite: 11] |
| Net Weight (KG) | 100 KG[cite: 11] | 100 KG[cite: 11] | 130 KG[cite: 11] |
Core Technological Advantages
Explore the 4 core technological advantages of JCT air-cooled laser welders, including Raycus integration, specialized torches, and ultimate portability..
Raycus High-Power Fiber Laser
Powered by genuine Raycus laser generators, guaranteeing exceptional beam quality, high electro-optical conversion efficiency, and zero power attenuation over long shifts.

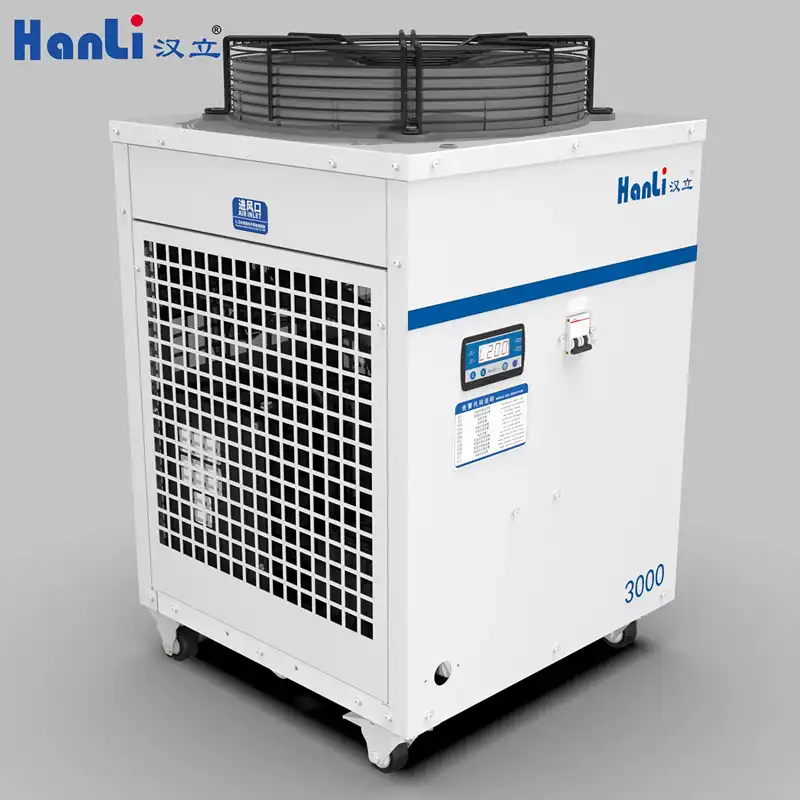

Hanli Industrial Water Chiller
Integrated with Hanli precision dual-temperature water chillers, providing rapid heat dissipation and constant temperature control to protect both optics and laser source.
Smart Pendulum Welding Heads
Equipped with advanced single or dual-pendulum wobble welding heads, widening the effective weld seam tolerance and ensuring deep, flawless fusion.
Heavy-Duty Multi-Drive Wire Feeding
Precision single and dual-drive wire feeding mechanisms support robust wire diameters up to 2.0mm, easily bridging wide gaps in thick plate fabrication.

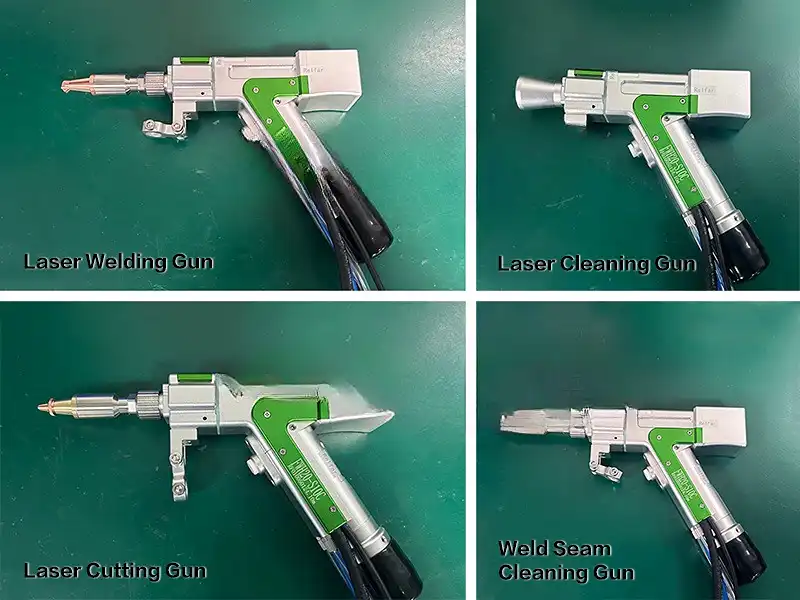

Flexible Multi-Functional Systems
3-in-1 system , 4-in-1 system , 5-in-1 system Configurations
3-in-1 water cooled laser welder
Standard multi-functional setup integrating :
- Laser Welding,
- Laser Cutting, 3
- Weld Seam Cleaning.
4-in-1 water cooled laser welder
Advanced upgrade adding:
- Laser Welding,
- Laser Cutting, 3
- Weld Seam Cleaning.
- Laser Rust Removal / Descaling
5-in-1 water cooled laser welder
The flagship comprehensive setup featuring :
- Welding
- Cutting,
- Rust Removal
- Weld Seam Cleaning
- Energy Storage Welding
Welding Sample Showcase
Explore high-precision laser welding results on stainless steel, carbon steel, and aluminum by JCT systems
PREMIUM COMPONENTS ASSURANCE
Certified to Global Leading Standards
Reliability starts at the core. The key components that power our equipment—from the laser source to even the smallest electronic components—have all been certified to meet the world’s most stringent international standards.
GLOBAL PARTNERSHIPS
Trusted by Industry Leaders Worldwide
We take pride in powering the success of top-tier global manufacturers, research institutions, and industrial leaders. Our advanced laser and testing solutions are trusted worldwide to deliver uncompromising quality and peak performance.
FAQ
Q1: How do operators switch between the 3-in-1, 4-in-1, and 5-in-1 multi-functional modes on the factory?
Operators can first switch the welder head with different modular nozzles,then change the pre-programmend process on the multi-language touch screen.
Q2: What is the specific function of the energy storage welding function included in the 5-in-1 system?·
The energy storage welding module is engineered for instantaneous spot-welding and stud fastening on thin brackets or enclosures without causing back-side indentation or thermal marking.
Q3: How do I choose between the 1500W, 2000W, and 3000W water-cooled models for my workshop?
Selection depends on your maximum plate thickness and production intensity.
The 1500W model is ideal for thin metal sheet up to 5mm,
the 2000W model handles heavy sheets up to 6mm with higher travel speeds,
the 3000W heavy-duty model delivers deep fusion up to 8mm in structural steel and stainless steel.
Q4: What is the difference between the 3-in-1, 4-in-1, and 5-in-1 multi-functional configurations?
3-in-1: Standard setup for Laser Welding, Cutting, and Weld Seam Cleaning.
4-in-1: Upgraded setup adding Laser Rust Removal / Descaling.
5-in-1: Flagship comprehensive setup including Welding, Cutting, Rust Removal, Weld Seam Cleaning, and Energy Storage Welding.
Q5: What are the electrical power supply requirements for operating these water-cooled laser systems?
The 1500W model operates on standard single-phase 220V power (6KW total power).
The high-power 2000W (8KW) and 3000W (12KW) models require industrial three-phase
380V power supplies to ensure stable, continuous high-energy output.
Q6: What kind of daily maintenance is required for the air-cooled torch and internal components?
It can cover a wide range of industrial metals, including stainless steel, carbon steel, aluminum alloys, and galvanized sheet metal, delivering oxidation-free seams and minimal thermal warpage.
Q7: What kind of warranty and technical support does JCT provide for overseas buyers?
We offer one year- warranty for the whole unit and two-year warranty for core components, backed by 24/7 online video diagnostics, remote engineering assistance, and lifetime technical support directly from our R&D center.
Q8: How are the handheld laser welders packaged and shipped internationally to ensure safety?
Each machine (ranging from 100KG to 130KG) is packed securely inside a heavy-duty, fumigation-free export wooden crate lined with high-density shock-absorbing foam, fully protecting the machine chassis and chiller during global ocean freight.
